    Clevo Overclocker's Lounge

    Discussion in 'Sager/Clevo Reviews & Owners' Lounges' started by Spartan@HIDevolution, Mar 4, 2016.

  1. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    also @Meaker@Sager - I forgot where you posted that


    the CPU vrm need thermal pad replacement too I guess

    Mobius 1, Mar 9, 2017
    #10424
  2. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,457
    Likes Received:
    12,828
    Trophy Points:
    931

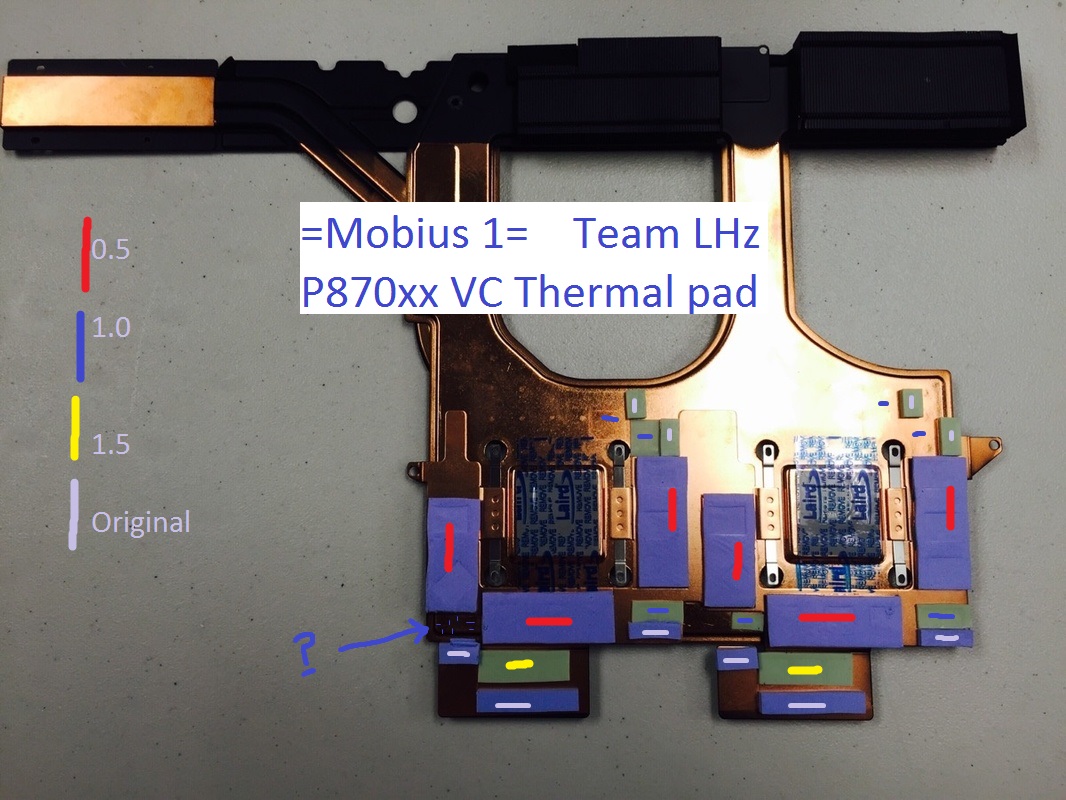

    Nope, but Brother @Meaker@Sager has an excellent one that most are using. Not sure of the link.

    Also...to achieve optimal fitting you will need to test fit it outside of the machine with one card. (Personal opinion only)

    Johnksss, Mar 9, 2017
    #10425
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,188
    Likes Received:
    17,895
    Trophy Points:
    931
    [​IMG]

    There you go :)

    Meaker@Sager, Mar 9, 2017
    #10426
    Papusan and Georgel like this.
  4. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    Ok let me see here, I make a cleaner version if possible.



    @Johnksss@iBUYPOWER - so when testing contact, take VC out and check with 1 card put on top if everything contacts nicely?

    Need to screw in gpu? Or just plop it on top?



    How about the CPU hsf -> VC contact and CPU hsf vrm?

    Mobius 1, Mar 9, 2017
    #10427
  5. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,188
    Likes Received:
    17,895
    Trophy Points:
    931
    Just put it on top and judge by eye ;)

    Meaker@Sager, Mar 9, 2017
    #10428
  6. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Ok don't screw

    Mobius 1, Mar 9, 2017
    #10429
  7. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,457
    Likes Received:
    12,828
    Trophy Points:
    931
    Exactly what Meaker said.

    Johnksss, Mar 9, 2017
    #10430
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,188
    Likes Received:
    17,895
    Trophy Points:
    931
    Yes basically you want it to sit perfectly before pressure is applied as then that pressure is real contact pressure.

    Meaker@Sager, Mar 9, 2017
    #10431
  9. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Mobius 1, Mar 9, 2017
    #10432
  10. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

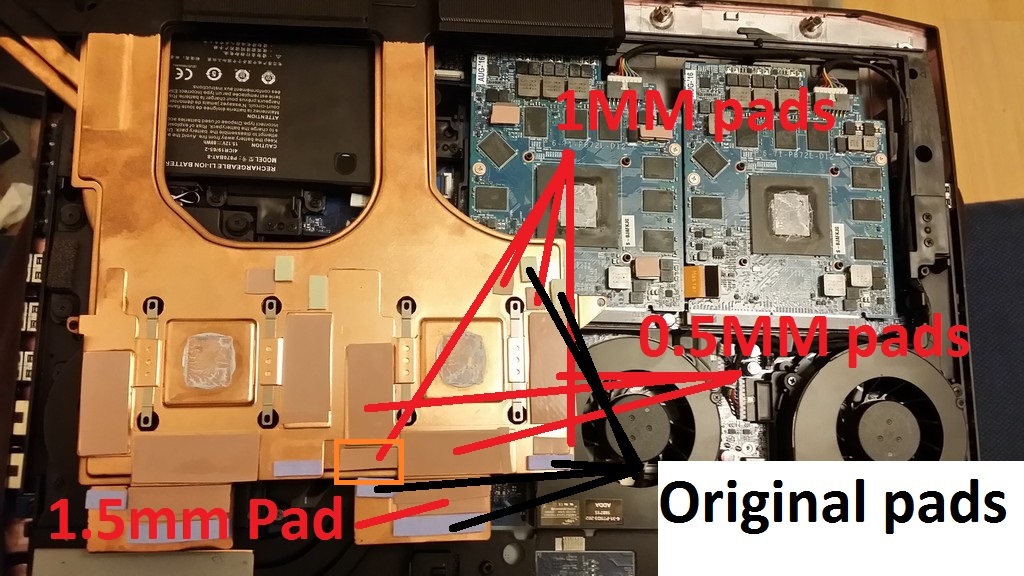

    Seeing some of the thermal pad is to contact GPU choke, I recommend to remove entirely the thermal pad and replace with K5 Pro or just a goop of ICD.


    I will make a version of GPU-down view.



    [​IMG]

    Mobius 1, Mar 9, 2017
    #10433
  11. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,188
    Likes Received:
    17,895
    Trophy Points:
    931
    Yep, that's the layout I have. No need to use paste if the pad is correct as the reduced thickness already improves cooling.

    Meaker@Sager, Mar 9, 2017
    #10434
  12. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    how about the missing question mark thing, 1mm?

    Mobius 1, Mar 9, 2017
    #10435
  13. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    Weirdly enough both my VC Heat sinks don't sit flush. And that is after using @Meaker@Sager 's pad thicknesses.
    I'm going to take the whole thing apart again this weekend and find the absolute minimum thickness needed.

    Also I think @TBoneSan was talking about using a shim for the processor.

    bloodhawk, Mar 9, 2017
    #10436
    Papusan and TBoneSan like this.
  14. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    0.5mm too thick to shim?

    Mobius 1, Mar 9, 2017
    #10437
  15. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    Not really. But the point was to not have to use a shim at all.

    bloodhawk, Mar 9, 2017
    #10438
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,188
    Likes Received:
    17,895
    Trophy Points:
    931
    Is it concave or convex?

    Meaker@Sager, Mar 9, 2017
    #10439
  17. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    It's probably raised on the left side. So Concave?
    The contact for the left GPUs components is pretty miserable. While the other GPU is pretty much perfect.
    When I place the heatsink on the right screw that hold the heatsink down on the right sits flush, where as the one on the left (next to the battery) is up in the air by about half a centimeter even after putting a significant amount of pressure on it.

    bloodhawk, Mar 9, 2017
    #10440
  18. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Well crap, I really hope my KM1 doesn't do that.

    Mobius 1, Mar 9, 2017
    #10441
  19. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,628
    Trophy Points:
    931
    Mr. Fox, Mar 9, 2017
    #10442
  20. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    bloodhawk, Mar 9, 2017
    #10443
  21. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,188
    Likes Received:
    17,895
    Trophy Points:
    931
    Any contact is fine, the choke is going to be the last thing to die anyway ;)

    Meaker@Sager, Mar 9, 2017
    #10444
  22. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Mobius 1, Mar 9, 2017
    #10445
    Mr. Fox likes this.
  23. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    Not really an excuse for a system that costs this much money.
    Either ways I'm pretty much done with Clevo. Have had enough of their shoddy heatsinks and QC.

    Lol

    bloodhawk, Mar 9, 2017
    #10446
    TBoneSan likes this.
  24. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,457
    Likes Received:
    12,828
    Trophy Points:
    931
    Looks good.

    Same here. Was talking about cpu. I should have separated that.

    Johnksss, Mar 9, 2017
    #10447
    Papusan and Mr. Fox like this.
  25. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    Weird. I have a third heat sink coming in on Saturday hopefully. Going to check how well that one works.
    But as far as the 7700k is concerned the IHS doesn't does my CPU heatsink sink. The 6700k however makes perfect contact.
    And that is after changing the thermal pads to 1/.5mm from 2/1mm.

    bloodhawk, Mar 9, 2017
    #10448
  26. TBoneSan

    TBoneSan Laptop Fiend

    Reputations:
    4,460
    Messages:
    5,558
    Likes Received:
    5,798
    Trophy Points:
    681
    Unless Clevo show improvement in Heatsink QC and a Fan Control software worth a damn to fix their dumb slow fan reaction times, this may also be my last too. Which sucks because they've just about built the perfect machine.

    TBoneSan, Mar 9, 2017
    #10449
    hmscott, Ashtrix, Mr. Fox and 2 others like this.
  27. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    can but the cpu will be bga

    hue

    Mobius 1, Mar 9, 2017
    #10450
  28. TBoneSan

    TBoneSan Laptop Fiend

    Reputations:
    4,460
    Messages:
    5,558
    Likes Received:
    5,798
    Trophy Points:
    681
    That's not an option unless I can find a machine
    1) under $1000
    2) has 120hz refresh

    Because I simply won't part with money beyond that for a disposable laptop.

    TBoneSan, Mar 9, 2017
    #10451
    hmscott, Ashtrix, Papusan and 1 other person like this.
  29. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,628
    Trophy Points:
    931
    Right on. If I got a BGA "gaming" turdbook given to me for free as a gift, I would sell it to someone that doesn't know any better and use the money for something worth spending my money on... or, just use the money to pay bills or something else.

    Mr. Fox, Mar 9, 2017
    #10452
    Ashtrix, TBoneSan, Georgel and 1 other person like this.
  30. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,628
    Trophy Points:
    931
    [​IMG]

    Mr. Fox, Mar 9, 2017
    #10453
    TBoneSan and Papusan like this.
  31. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    9 Mar 2017

    Hansung confirmed order and take my system to "build" status.

    I forgot who, but if you filled out the Clevo silence fan mod google forms, DM me with your fan of choice and pair number.




    I hope a beautiful K-pop beauty in hansung factory is handling my KM1!

    Mobius 1, Mar 9, 2017
    #10454
    TBoneSan, Ashtrix, Mr. Fox and 1 other person like this.
  32. TBoneSan

    TBoneSan Laptop Fiend

    Reputations:
    4,460
    Messages:
    5,558
    Likes Received:
    5,798
    Trophy Points:
    681

    Were you ever able to mount them?

    TBoneSan, Mar 9, 2017
    #10455
    hmscott likes this.
  33. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Hansung said they need trimming.


    I will figure out something when I actually get my KM1.

    Mobius 1, Mar 9, 2017
    #10456
  34. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,628
    Trophy Points:
    931
    Last edited: Mar 10, 2017
    Mr. Fox, Mar 10, 2017
    #10457
    temp00876, Scerate, Johnksss and 2 others like this.
  35. Adbear

    Adbear Notebook Consultant

    Reputations:
    38
    Messages:
    253
    Likes Received:
    136
    Trophy Points:
    56
    I know this has already been mentioned, but I went through pages of posts and couldn't find it.

    Where is a good place to get the copper shims and heat pads for the P775DM3, and what sizes would I need to get?
    I'm based in the UK.

    Thanks in advance

    Adbear, Mar 10, 2017
    #10458
  36. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Mobius 1, Mar 10, 2017
    #10459
    TBoneSan likes this.
  37. Adbear

    Adbear Notebook Consultant

    Reputations:
    38
    Messages:
    253
    Likes Received:
    136
    Trophy Points:
    56
    Adbear, Mar 10, 2017
    #10460
  38. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,628
    Trophy Points:
    931
    Yes, that is specifically for the CPU on the shim. Probably don't need to use a shim on the GPU, but you will have more than one in case you want to try it.

    Pads:
    http://www.performance-pcs.com/brand--thermal-grizzly/?p=1
    -or-
    Fujipoly / mod/smart Extreme X-e Thermal Pad - 60 x 50 x 1.5 - Thermal Conductivity 11.0 W/mK
    Fujipoly / mod/smart Ultra Extreme XR-m Thermal Pad - 60 x 50 x 1.0 - Thermal Conductivity 17.0 W/mK
    Fujipoly / mod/smart Ultra Extreme XR-m Thermal Pad - 60 x 50 x 0.5 - Thermal Conductivity 17.0 W/mK

    Mr. Fox, Mar 10, 2017
    #10461
    TBoneSan likes this.
  39. Adbear

    Adbear Notebook Consultant

    Reputations:
    38
    Messages:
    253
    Likes Received:
    136
    Trophy Points:
    56
    Thanks for the links.
    Are those thermal pads suitable to replace the ones already on heatsinks as I want to replace all of the pads with better ones if possible? (I already de-lidded and LM'd the CPU and GPU but I want to replace all the other pads with better ones)
    If so then I just need to find somewhere over here to get them from

    Last edited: Mar 10, 2017
    Adbear, Mar 10, 2017
    #10462
  40. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    for 775 I don't have a pad guide, sorry


    :(

    Mobius 1, Mar 10, 2017
    #10463
  41. Q937

    Q937 Notebook Deity

    Reputations:
    393
    Messages:
    1,040
    Likes Received:
    1,607
    Trophy Points:
    181
    If you're shimming the GPU, you likely want 20x20. I recommend getting an assortment of thicknesses including at least 0.3mm and 0.5mm as well as some 400/1000/2000 sandpaper packs, since you don't know how wide the gap is between your heat sink and the die. With GPUs, it's critical that you don't have overly thick shims because that can very easily cost you contact for the thermal pads on the other components.

    Q937, Mar 10, 2017
    #10464
  42. Adbear

    Adbear Notebook Consultant

    Reputations:
    38
    Messages:
    253
    Likes Received:
    136
    Trophy Points:
    56
    The GPU isn't the issue, it's the 7700K CPU being slightly lower that I need the shim for, so whilst I was doing that I thought I would replace the thick thermal pads with better ones. The main GPU contact is not an issue

    Adbear, Mar 10, 2017
    #10465
  43. Q937

    Q937 Notebook Deity

    Reputations:
    393
    Messages:
    1,040
    Likes Received:
    1,607
    Trophy Points:
    181
    I brought it up since people were mentioning shimming the GPU with the same thing. 30x30 is the perfect size to match the IHS, and I recommend getting 0.5 and 0.8mm shims plus sandpaper if you're not sure how thick the gap is. If you're not using LM between the IHS and heat sink, I suggest doing that at the very least for the shim-heatsink contact.

    Q937, Mar 10, 2017
    #10466
    Papusan and bloodhawk like this.
  44. z06mikem

    z06mikem Newbie

    Reputations:
    5
    Messages:
    6
    Likes Received:
    3
    Trophy Points:
    6
    What kind of CPU clocks and temps are you guys getting for the 7700k?

    z06mikem, Mar 10, 2017
    #10467
  45. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    Running 4.8Ghz .
    Maxes at about 88C , with CLU and a shim.

    bloodhawk, Mar 10, 2017
    #10468
  46. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    power draw on 4.8?

    Mobius 1, Mar 10, 2017
    #10469
  47. ajc9988

    ajc9988 Death by a thousand paper cuts

    Reputations:
    1,750
    Messages:
    6,121
    Likes Received:
    8,849
    Trophy Points:
    681
    ajc9988, Mar 10, 2017
    #10470
  48. Rage Set

    Rage Set A Fusioner of Technologies

    Reputations:
    1,611
    Messages:
    1,680
    Likes Received:
    5,059
    Trophy Points:
    531
    Rage Set, Mar 10, 2017
    #10471
    ajc9988, Papusan and Georgel like this.
  49. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    Tops I have seen is about 105W.

    bloodhawk, Mar 10, 2017
    #10472
  50. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,701
    Messages:
    29,839
    Likes Received:
    59,614
    Trophy Points:
    931
    [email protected]
    You can probably shrink the power draw with the better cooling in P870 :)

    Last edited: Mar 11, 2017
    Papusan, Mar 11, 2017
    #10473
    bloodhawk and Georgel like this.
← Previous pageNext page →
