every time i read a ryzen review article i was actually thinking about your predictions in terms of AMD performance, and in the end you were right! exciting times in cpu land



I don't know if you read my predictions of 7nm and beyond... but tomorrow should give a clearer timeline for time to 7nm for AMD, the 20% jump in IPC to catch up to Skylake-X (or give clearer predictive abilities after computex on where things will be with that and CL-X relative to Ryzen 2 and 3), etc. Give me a couple months and I can give a good prediction through 2019...



So nowadays I've been finding that you people and your fancy finfet Pascal cards beat my poor 980 in every way, except one....

Power draw!



Try to beat 283W. I bet you can't! Your Pascal cores are too small and your voltages too low!



I think i have managed 297W, but that was super duper while back. So cant track that screenshot down



Same here. But it would be nice seeing Pascal mobile up there Or +250-260w



lulz, u crack me up btw, no one's daring to compete with your franken-setup, its in a league of its own

Sent from my HUAWEI NXT-AL10 using Tapatalk



https://valid.x86.fr/z4jyd9



@jaybee83
@Scerate

Firstly thanks for the assistance people, and congrats on the letters after your name Jaybee83!

"Posted earlier about some crazy throttling on a p750dm-g when both the CPU & GPU are loaded. Thanks to a magical person, from a magical land the bios on this unit has magicly unlocked (with the EC also magically updated). Tis so nice having more control!

Ironically switching on intel speedshift via Throttlestop mitigates the worst of the cpu throttling (worst being down to a 10x multiplier with Heaven running with 0 additional load on the cpu) - anyone have any idea why this would be the case as it doesn't make a lot of sense to me..? @ 4.5k (adaptive & +55 offset) with TS 1024mb bench running + Heaven it will operate in the 4.1 - 4.3 range"


Hopefully all useful properties & values are as below

p75xxDM-g
Bios version: 1.05.09pm v1.3
EC version: 1.05.03pm
CPU I5-6600k
GPU: 880m

Clock: 4.5
Cache ratio: 39
voltage type: adaptive
Core Offset: +56
Cache offset: 0
SA offset: 0

Power limits: 99999/99999
PP0 current limit (set in TS): 1023
PSYS Pmax current 5000
SA Current: 5000
Core/IA Current: 5000
Ring current: 5000

voltage under load (cinebench): 1.25xx

Cstates: off (on/off makes no difference)
RSR: off
No throttle reasons in TS
No throttle reasons in HW
No Throttle reasons in XTU (got desperate and installed it..)



whats the behaviour like during cpu&gpu load? do some logging with hwinfo64 and post screenshots here.

Sent from my HUAWEI NXT-AL10 using Tapatalk



Thanks man!

image attached

throttlestop log in the spoiler

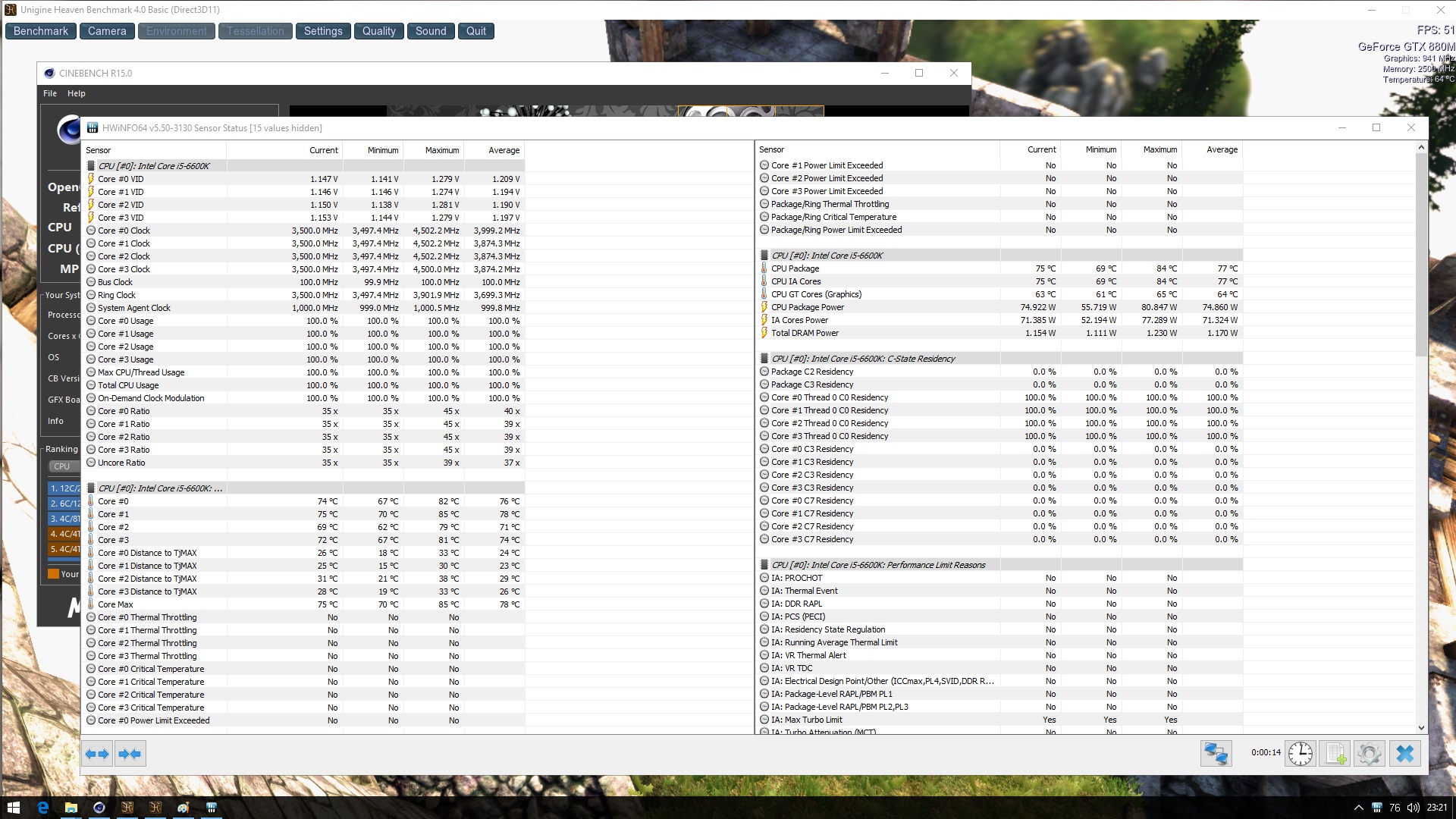

image below is with cinebench + heaven running

Spoiler

DATE TIME MULTI C0% CKMOD CHIPM BAT_mW TEMP VID POWER

=========cinebench + heaven underway============
2017-05-16 23:20:12 44.91 35.7 100.0 100.0 0 62 1.3413 39.0
2017-05-16 23:20:13 37.41 35.2 100.0 100.0 0 53 1.1644 30.8
2017-05-16 23:20:14 41.83 50.4 100.0 100.0 0 71 1.2690 42.7
2017-05-16 23:20:15 41.58 80.8 100.0 100.0 0 70 1.2478 63.3
2017-05-16 23:20:16 41.32 98.7 100.0 100.0 0 76 1.2609 74.1
2017-05-16 23:20:17 41.15 100.0 100.0 100.0 0 77 1.2714 74.7
2017-05-16 23:20:18 40.14 100.0 100.0 100.0 0 72 1.2681 71.6
2017-05-16 23:20:19 40.74 100.0 100.0 100.0 0 67 1.1588 73.8
2017-05-16 23:20:20 40.86 100.0 100.0 100.0 0 69 1.1594 74.9
2017-05-16 23:20:21 40.62 100.0 100.0 100.0 0 70 1.1426 74.3
2017-05-16 23:20:22 40.96 100.0 100.0 100.0 0 72 1.2516 75.2
2017-05-16 23:20:23 40.41 100.0 100.0 100.0 0 68 1.1479 73.7
2017-05-16 23:20:24 40.70 100.0 100.0 100.0 0 78 1.1407 74.3
2017-05-16 23:20:25 41.15 100.0 100.0 100.0 0 78 1.2678 76.5
2017-05-16 23:20:26 39.95 100.0 100.0 100.0 0 73 1.1467 73.2
2017-05-16 23:20:27 40.80 100.0 100.0 100.0 0 78 1.2694 77.5
2017-05-16 23:20:28 39.69 100.0 100.0 100.0 0 73 1.2729 72.6
2017-05-16 23:20:29 40.40 100.0 100.0 100.0 0 79 1.2438 75.7
2017-05-16 23:20:30 41.94 100.0 100.0 100.0 0 80 1.2677 79.1
2017-05-16 23:20:31 41.16 100.0 100.0 100.0 0 80 1.2506 77.2
2017-05-16 23:20:32 40.75 100.0 100.0 100.0 0 80 1.2518 76.0
2017-05-16 23:20:33 41.75 100.0 100.0 100.0 0 81 1.2747 79.3
2017-05-16 23:20:34 41.98 100.0 100.0 100.0 0 80 1.2783 80.9
2017-05-16 23:20:35 42.97 100.0 100.0 100.0 0 82 1.2705 84.2
2017-05-16 23:20:36 39.79 100.0 100.0 100.0 0 81 1.2589 75.7
2017-05-16 23:20:37 40.63 100.0 100.0 100.0 0 74 1.1440 76.8
2017-05-16 23:20:38 41.72 100.0 100.0 100.0 0 82 1.2667 81.3
2017-05-16 23:20:39 40.96 100.0 100.0 100.0 0 82 1.2704 80.2
2017-05-16 23:20:40 41.11 100.0 100.0 100.0 0 72 1.1752 79.6
2017-05-16 23:20:41 39.66 100.0 100.0 100.0 0 79 1.2556 72.0
2017-05-16 23:20:42 40.41 100.0 100.0 100.0 0 73 1.1516 73.9
2017-05-16 23:20:43 41.16 100.0 100.0 100.0 0 80 1.2717 77.2
2017-05-16 23:20:44 39.13 100.0 100.0 100.0 0 81 1.2719 70.6
2017-05-16 23:20:45 43.53 100.0 100.0 100.0 0 76 1.1567 84.6
2017-05-16 23:20:46 42.11 100.0 100.0 100.0 0 81 1.2604 78.7
2017-05-16 23:20:47 41.75 100.0 100.0 100.0 0 81 1.2626 74.7
2017-05-16 23:20:48 42.15 100.0 100.0 100.0 0 81 1.2626 73.9
2017-05-16 23:20:49 42.23 100.0 100.0 100.0 0 80 1.2633 74.7
2017-05-16 23:20:50 42.91 100.0 100.0 100.0 0 83 1.2703 76.8
2017-05-16 23:20:51 42.17 100.0 100.0 100.0 0 81 1.2631 75.2
2017-05-16 23:20:52 40.77 100.0 100.0 100.0 0 81 1.2615 71.2
2017-05-16 23:20:53 41.57 100.0 100.0 100.0 0 80 1.2725 73.6
2017-05-16 23:20:54 41.93 100.0 100.0 100.0 0 80 1.2523 73.5
2017-05-16 23:20:55 36.91 100.0 100.0 100.0 0 71 1.1421 61.0
2017-05-16 23:20:56 42.55 100.0 100.0 100.0 0 82 1.2593 81.2
2017-05-16 23:20:57 40.35 100.0 100.0 100.0 0 82 1.2601 76.0
2017-05-16 23:20:58 41.38 100.0 100.0 100.0 0 84 1.2629 82.1
2017-05-16 23:20:59 37.86 100.0 100.0 100.0 0 80 1.2640 68.6
2017-05-16 23:21:00 39.01 100.0 100.0 100.0 0 75 1.1530 73.3
2017-05-16 23:21:01 41.11 100.0 100.0 100.0 0 85 1.2760 79.8
2017-05-16 23:21:02 40.99 100.0 100.0 100.0 0 84 1.2643 81.7
2017-05-16 23:21:03 40.90 100.0 100.0 100.0 0 82 1.2719 78.3
2017-05-16 23:21:04 41.57 100.0 100.0 100.0 0 85 1.2747 80.7
2017-05-16 23:21:05 41.39 100.0 100.0 100.0 0 82 1.2618 80.2
2017-05-16 23:21:06 42.34 100.0 100.0 100.0 0 84 1.2554 81.3
2017-05-16 23:21:07 40.56 100.0 100.0 100.0 0 82 1.2500 76.8
2017-05-16 23:21:08 39.90 100.0 100.0 100.0 0 74 1.1334 74.2
2017-05-16 23:21:09 40.22 100.0 100.0 100.0 0 74 1.1398 75.5
2017-05-16 23:21:10 41.73 100.0 100.0 100.0 0 76 1.1459 82.2
2017-05-16 23:21:11 39.73 100.0 100.0 100.0 0 82 1.2714 74.9
2017-05-16 23:21:12 38.73 100.0 100.0 100.0 0 74 1.1503 70.6
2017-05-16 23:21:13 45.00 100.0 100.0 100.0 0 83 1.2610 91.2
2017-05-16 23:21:14 45.00 100.0 100.0 100.0 0 86 1.2754 92.2
2017-05-16 23:21:15 44.63 85.0 100.0 100.0 0 79 1.2947 80.6
2017-05-16 23:21:16 44.74 33.6 100.0 100.0 0 71 1.3312 42.3
2017-05-16 23:21:17 44.94 33.7 100.0 100.0 0 74 1.3042 41.4
2017-05-16 23:21:18 45.00 34.1 100.0 100.0 0 74 1.3069 41.4
2017-05-16 23:21:19 44.45 33.9 100.0 100.0 0 71 1.2948 40.8
2017-05-16 23:21:20 44.40 33.9 100.0 100.0 0 72 1.3083 40.7
2017-05-16 23:21:21 44.56 34.2 100.0 100.0 0 73 1.2991 40.5
2017-05-16 23:21:22 44.90 34.3 100.0 100.0 0 66 1.3315 40.7
2017-05-16 23:21:23 35.07 35.1 100.0 100.0 0 58 1.1097 30.1
2017-05-16 23:21:24 41.56 34.3 100.0 100.0 0 72 1.2778 33.3
2017-05-16 23:21:25 44.59 32.6 100.0 100.0 0 65 1.2899 39.4
2017-05-16 23:21:26 44.70 32.5 100.0 100.0 0 67 1.3030 39.4
2017-05-16 23:21:27 45.00 32.1 100.0 100.0 0 72 1.3134 39.2
2017-05-16 23:21:28 44.82 33.0 100.0 100.0 0 63 1.3206 39.6
2017-05-16 23:21:29 44.31 33.1 100.0 100.0 0 67 1.2939 39.5
2017-05-16 23:21:30 44.34 32.5 100.0 100.0 0 64 1.2593 38.2
2017-05-16 23:21:31 44.45 31.6 100.0 100.0 0 71 1.3429 38.1
2017-05-16 23:21:32 44.53 32.3 100.0 100.0 0 65 1.3040 39.0
2017-05-16 23:21:33 44.32 33.5 100.0 100.0 0 69 1.3027 38.9
2017-05-16 23:21:34 44.47 27.5 100.0 100.0 0 53 1.3091 34.2
2017-05-16 23:21:35 20.37 26.2 100.0 100.0 0 51 0.8605 12.4

============cinebench run complete & cpu downclocks =====================
DATE TIME MULTI C0% CKMOD CHIPM BAT_mW TEMP VID POWER
2017-05-16 23:21:36 26.86 35.7 100.0 100.0 0 55 1.1625 20.7
2017-05-16 23:21:37 25.22 35.2 100.0 100.0 0 52 0.9369 17.6
2017-05-16 23:21:38 24.62 36.3 100.0 100.0 0 51 1.0028 15.7
2017-05-16 23:21:39 21.53 35.6 100.0 100.0 0 50 0.9235 14.0
2017-05-16 23:21:40 21.28 35.6 100.0 100.0 0 49 0.9375 13.3
2017-05-16 23:21:41 20.66 35.0 100.0 100.0 0 49 0.9194 12.7
2017-05-16 23:21:42 20.00 37.5 100.0 100.0 0 49 0.9131 12.5
2017-05-16 23:21:43 16.49 39.7 100.0 100.0 0 48 0.8429 10.9
2017-05-16 23:21:44 17.22 39.5 100.0 100.0 0 49 0.8971 11.3
2017-05-16 23:21:45 17.00 37.5 100.0 100.0 0 48 0.8503 10.8
2017-05-16 23:21:46 19.84 40.1 100.0 100.0 0 50 0.9424 12.6
2017-05-16 23:21:47 16.83 40.8 100.0 100.0 0 47 0.8447 11.5
2017-05-16 23:21:48 15.00 50.9 100.0 100.0 0 48 0.8497 10.7
2017-05-16 23:21:49 19.28 46.2 100.0 100.0 0 49 0.9471 13.2
2017-05-16 23:21:50 22.00 44.9 100.0 100.0 0 49 0.9375 14.9
2017-05-16 23:21:51 18.45 43.9 100.0 100.0 0 47 0.8621 12.6
2017-05-16 23:21:52 17.00 63.1 100.0 100.0 0 48 0.8644 13.2
2017-05-16 23:21:53 36.55 45.0 100.0 100.0 0 66 1.3354 32.4
2017-05-16 23:21:54 44.52 44.1 100.0 100.0 0 65 1.2028 45.4
2017-05-16 23:21:55 45.00 43.6 100.0 100.0 0 66 1.3300 47.4
2017-05-16 23:21:56 44.91 40.5 100.0 100.0 0 63 1.3232 43.4
2017-05-16 23:21:57 44.34 42.1 100.0 100.0 0 60 1.1722 44.5
2017-05-16 23:21:58 43.48 40.3 100.0 100.0 0 60 1.2909 42.2
2017-05-16 23:21:59 44.04 42.0 100.0 100.0 0 68 1.2975 43.8
2017-05-16 23:22:00 44.45 37.0 100.0 100.0 0 64 1.2900 41.6



Certainly can with a pair of cards



Looks like a software/OS induced throttle or just regular speed-step behavior during lower loads. Make all settings in BIOS and use TS only to fix the Turbo Multi to 4.5Ghz if you want the clocks to be consistent.



just to be sure: are you running high performance profile in windows and control center?



Use for monitoring only throttlestop. I has problem with HWinfo, when i used it my cpu worked to 3.5 ghz



that is very strange, ive never heard of such behavior before with HWInfo...



Please report your problem in the Hwinfo forum Make a post.
Make sure you can tell about what's wrong + post your Laptop hardware and brand. Thanks

I have seen Hwinfo had a problematic version, I think it was in 2014(used with RTSS with my AW17 and it crashed my machine). But was fixed right after. But not common as you said.



close to nailing it here, looks like 5 ghz everyday clocks with -2 AVX offset



haha

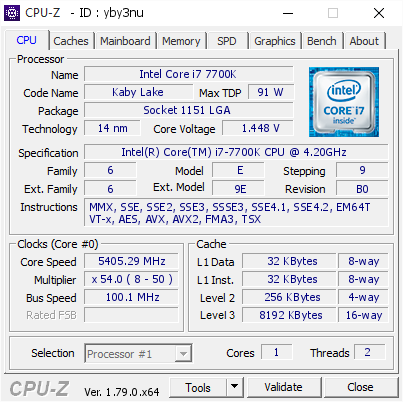

https://valid.x86.fr/yby3nu



Flipping awesome !

I need to stop trying to validate at 5.5 and just stick to a 5.4 validation



@jaybee83 - for you
http://www.fudzilla.com/news/processors/43676-amd-just-announced-zen-2
http://wccftech.com/amd-zen-2-zen-3-7nm-cpu-architecture-details/
So, AMD mentioned that it has plans for a 14nm+ process, a 7nm process for Zen 2, then a 7nm+ process for Zen 3 by 2020 on their roadmap. GloFo is taking customer designs for 7nm chips in the second half of this year, risk production starts first half of 2018.
They are predicting Intel levels of IPC growth of 5-15% improvement.

My prediction: When they said 20% for Zen+, they were meaning the 14nm+ design. The 14nm+ process is what is planned for first half through Q3 of 2018. This will erase all gap between Skylake (and possibly Kaby) and Ryzen's successor if they meet or beat the 20% promise for Zen+. Intel counter's with CL and says we are so great, but the gap is less than Ryzen and Kaby or TR and SL-X. Then comes the move in Q4 2018 to 1H 2019 to 7nm Zen (could be earlier by a couple quarters, but I'm not over rushing them nor Intel). Intel counter's with Icelake at 10nm+ with FIVR. Doesn't matter because with the IPC and core count AMD overtakes the field. Intel still has better logic density at the 10nm node and is at 10nm+ process at this point, which still does not outperform coffeelake, but is more dense because smaller node. So, 2020, you square off Tiger, the 10nm++ beast against the 7nm+ Zen 3 beast. Seriously, need I say more. This confirms my prior prediction (most likely). Enjoy!

Edit:
Hence why I said Coffee is a good sit and wait buy this fall for mainstream!!!



5.5 would be da bomb. @Prema predicted it could/would happen on KBL, but who's gonna do it...? cmon john, dont let us down! @Johnksss@iBUYPOWER

@ajc9988 two points im currently amazed about: first being the sudden and very apparent pressure intel is under after the release of zen, speeding up release cycles and bumping specs on upcomings cpus. and second, the return for my money invested in this machine: this is currently my third(!) brand new machine ive received inside warranty at no extra cost to my original P751ZM purchase *rofl*. and i still have over 20 months warranty left, mind you...

Sent from my HUAWEI NXT-AL10 using Tapatalk



Yeah if someone can do it first, it's him
I have been eyeing 5.5 more than 5.4 just to beat him for once.



Beating John usually lasts from dusk till dawn...



True that lol.
But .. one can hope that doesn't happen anytime soon.. *cough* singlegpufirestrike*cough*.



yeah, its like you fiddle and tweak around for weeks and months in order to beat him, then he goes like: oh! gimme a sec...bam, 5.6 ghz *lol* now go play, kids, and let the grown-ups do their thing, nkay?

have u even seen 5.5 on your screen yet? if so, that would already be quite a feat!

Sent from my HUAWEI NXT-AL10 using Tapatalk



LOL, they need more people to play with, that's for sure. Otherwise he and Fox get lazy and don't try to push harder...



Get me that LN2 / AC only BIOS and I'll make sure I light a fire under their asses

Spoiler

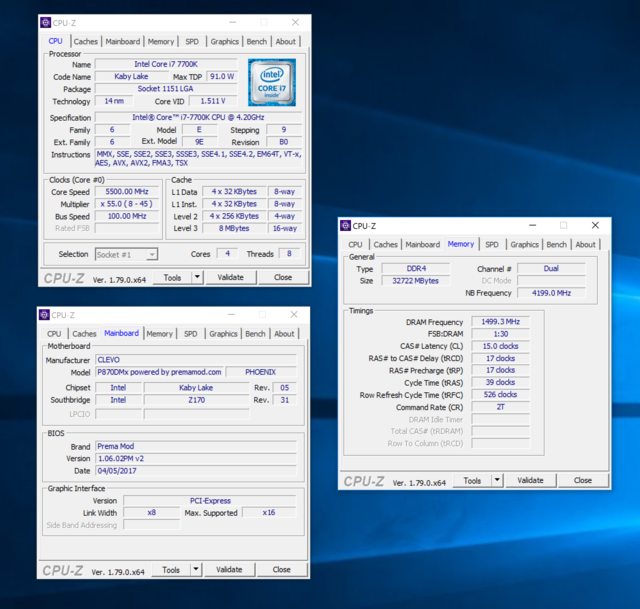

http://imgur.com/gxkQXSH



hm, the posted screenie is way fuzzy, cant really discern anything there...but if it shows what i think it does then kudos! looks like i got my work cut out for me *lulz*

edit: ok, got it now, sweet! validating 5.4 should be a breeze for you

Sent from my HUAWEI NXT-AL10 using Tapatalk



Fixed. For some reason I can't get the direct image links on the phone. Only the thumbnail.



Didn't you see bloodhawk's screenie clearly showed us proof of 7Ghz...



Bruh that was at the super duper secret 6.9V.



oh nooozzz....dont start that discussion again haha

Sent from my HUAWEI NXT-AL10 using Tapatalk



That's right! Benched in a vacuum chamber in John's garage.

Back on topic:

Are those Bitspower heatspreader worth the trouble? I kinda missed the final verdict...

@Mobius 1 did you get a chance to test the 'BIG BOY' FANs in your KM1, yet?



If removing Cclips doesn't work for you, then the bitspower IHS is worth it.



Then I was like

And thus the night ends with me laughing all the way until tomorrow. ( The firestrike is john's).

@Johnksss@iBUYPOWER @Mr. Fox @bloodhawk @Prema @jaybee83

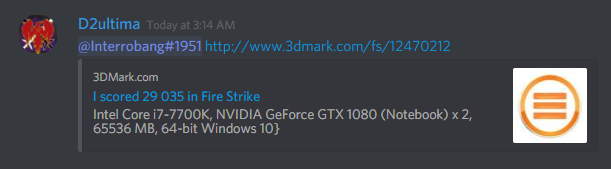

Desktop users get rekt by @D2 Ultima . Nicely done

Meanwhile, still scrubbing here with ~ 4600 Fire Strike with a GPU that's probably going to be outdone by a Vega iGPU from AMD later this year... Sigh.

Must... Have... Patience. Must... Wait... For... Navi.

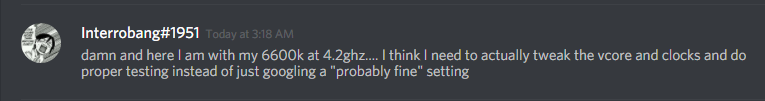

loving it btw, amazing how understanding and humble that desktop user is, planning to do proper tweaking from now on

Sent from my HUAWEI NXT-AL10 using Tapatalk



haha, this is nice



Yep, considering @jaybee83 knocked it out pretty quick.

You already have beat me at a few things.

That is all you!

I can run around at 5.6 ghz as well...validation is something of a whole nother story.



Some unexpected progress has been made having uninstalled CC, reset the EC, reInstalled CC and cycled through the power modes in CC... it now seems to be holding the cpu clock when the GPU is loaded.

Am i expecting too much in regards to being able to hold 4.5ghz whist both the CPU & GPU are under 100% load? I feel like a moron asking that question, as the haswell mobiles ive dealt with in the past dont seem to have any issue in that regard. My only experience with desktop cpu's for quite some time is an i5-750 which ive had at 4.2ghz since 2010

Thanks people



LOL.



Looks like the stock firmware had to be flushed out of existence...

With the mod there is no forceful limitation in place at such levels as long as temps don't exceed safety limits.



It's always fun to knock some sense into some desktop users



Yeah, Well you guys haven't knocked any into me yet because I do still own a desktop.



I actually think that is the evidence you haven't lost your good sense yet. If it were not for Brother @Prema being able to help us, we'd all be stupid for buying overpriced cancer trashbooks.



And something tells me you'll build at least one new one in the coming months...

Sent from my SM-G900P using Tapatalk



Yeah, never that. Notebooks are cool and all, but a desktop is worth far more bot points in the end. Way to many parts can be benched off of just one or two base setups. And that is what you need to gain many hard points to gain rank. Although it takes far longer to lose your laptop hardware points. There is more to all that, but you get the idea.

Maybe.... I didn't jump this time because it was only like 2 or 3 test I would have gained very minimal results in, so I just stayed with the 5960X. Debating on testing some TI's now that they are readily available, but I think I'll still wait.



I was meaning the threadripper or SK-X, if either overclock well. BW-E was shiite, but skylake seemed to overclock well and they used the 14nm+ process that was used for Kaby to make SK-X, so the numbers on LN2 might be really nice! TR is more for heavy multithreaded benches, but we'll know better in a couple months on those...

Also, now that micron showed the 12 and 14gbps GDDR6 this year, the rumors on Volta XX80 aren't as far fetched to fight Vega, coming in August...

Sent from my SM-G900P using Tapatalk



True, but I buy to bench, not to play games or run intensive imaging software so I'll wait and see what some of the heavy hitters think about it. Just because it looks good on paper does not mean it's good out in the wilds beyond a certain point. At least that's my line of thinking anyway. So I wait to see what my other team members have to say, then make a judgement call from there.

Side note:
For the record I'm side playing on the Xboxone, Destiny. And On the PC it's GTA5.
I need to go play with Brother @Mr. Fox on Diablo
