    *** Official Clevo P157SM-P150SM / Sager NP8250 Owner's Lounge ***

    Discussion in 'Sager/Clevo Reviews & Owners' Lounges' started by HTWingNut, Jun 1, 2013.

  1. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    I actually use the same heatsink as you on my master gpu. I upgraded my EM heatsinks to SM-A heatsinks while back. I did add more fins to cover the whole fan lenght and taped all gaps. Used autofans instead of max.

    t6nn_k, Sep 15, 2018
    #2398
  2. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    More fins? Any pictures?

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Sep 15, 2018
    #2399
  3. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    Right side. [​IMG]

    t6nn_k, Sep 15, 2018
    #2400
  4. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    So you chopped some off and used a thermal paste between them then? Or soldered them?

    So why the switch to this cooler?

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Sep 15, 2018
    #2401
  5. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    I used thermal adhesive. There was some foam to fill the gap.
    I bought SM-A heatsiks for better slave GPU cooling. Didn't see any difference in master tho. Some have reported cooler temps than old EM 2-piece heatsink.

    Temps with max fans
    CPU: 75*C
    GPU: 79*C

    Last edited: Sep 15, 2018
    t6nn_k, Sep 15, 2018
    #2402
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    I've generally read the opposite on the heatsinks with the split design being less efficient.

    Meaker@Sager, Sep 17, 2018
    #2403
  7. jasonlam

    jasonlam Notebook Guru

    Reputations:
    177
    Messages:
    72
    Likes Received:
    40
    Trophy Points:
    26
    I suspect my GTX 870M is dying after using the laptop for 4 years and a bit. It started with the screen freezing when I was playing games (BSOD error: VIDEO SCHEDULER INTERNAL ERROR), and now the whole Windows freezes just a few seconds after booting up. Tried reinstalling the Windows (both Windows 7 and Windows 10), but still can't solve the problems. And if I go into the safe mode, it works perfectly fine.

    Besides, it can detect my GTX 870M in BIOS. But in Windows, it only shows my iGPU in Device Manager.

    So I guess it's either the graphic card or the MXM port of the motherboard? I also tried to boot up without the graphic card. The fan for the graphic card was spinning on full speed, the laptop kept beeping and eventually it shut down automatically around 10 seconds later. Is this because the EC can't detect the graphic card? And is there a way to stop this?

    I just wanna make sure it's my GTX 870M causing the issues before I pay a few hundred bucks to get a new card.

    Thanks in advance.

    Last edited: Sep 20, 2018
    jasonlam, Sep 20, 2018
    #2404
  8. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    Tried again today...
    Often hitting power and even temperature limit (at 87°C)

    Afterburner set at +135 on the core and +250 on the memory.
    No overclock on the CPU.

    General score 8595
    Graphics 10400 - 48.92 / 42.04 fps
    Physics 8562 - 27.18 fps
    Combined 3745 - 17.42 fps

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Sep 26, 2018
    #2405
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    It's hard to say for 100% but it's rarely the slot and the shutdown is because the ECU gets no signal from the GPU when it's removed.

    You may want to play with your heatsink fit to see if you can make it perfect.

    Meaker@Sager, Sep 26, 2018
    #2406
  10. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    I've ordered some Thermal Grizzly Kryonaut to test with next. It's got 12.5 W/m.K, whereas the MX4 has around 8.5.
    So it should help.

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Sep 26, 2018
    #2407
  11. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    It's a good paste, check your spread pattern when removing the heatsink, share a pic if you can.

    Meaker@Sager, Sep 26, 2018
    #2408
  12. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    I planned on doing so and I will ;)

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Sep 26, 2018
    #2409
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    We can let you know if it looks ok or not :) you get to know over time.

    Meaker@Sager, Sep 27, 2018
    #2410
  14. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    Tried same oc and scores were same. Temperature reached 79°C with GC-Extreme and max fan. Do you have max fan feature?
    New paste will help a lot.

    t6nn_k, Sep 27, 2018
    #2411
  15. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    I dont have the max fan feature. But it sounds like a jet engine anyways

    I did replace the thermal paste already about a month and a half ago, since even the CPU was thermal throttling when I bought it.

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Sep 27, 2018
    #2412
  16. jasonlam

    jasonlam Notebook Guru

    Reputations:
    177
    Messages:
    72
    Likes Received:
    40
    Trophy Points:
    26
    It turns out it's the GTX870M having issues. I've got a GTX1060 running in it now.

    jasonlam, Sep 27, 2018
    #2413
  17. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    That's a nice step up :)

    Meaker@Sager, Sep 27, 2018
    #2414
  18. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    For real

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Sep 27, 2018
    #2415
  19. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    I think that card is the perfect partner for the system.

    Meaker@Sager, Sep 27, 2018
    #2416
  20. jasonlam

    jasonlam Notebook Guru

    Reputations:
    177
    Messages:
    72
    Likes Received:
    40
    Trophy Points:
    26
    Indeed. Runs cooler, but much better performance.

    Used to get 50ish fps in GTA V with mid-high settings. Now with everything maxed out, I still get around 60fps most of the time.

    jasonlam, Oct 1, 2018
    #2417
  21. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    Small major update on my thermals ;)

    Did a number of tests in stock configuration.

    I made screenshots of Idle temperatures, after running the Furmark Benchmark and 3DMark, as well as CPU-ID CPU Bench.

    Baseline MX4 Rice grain Idle.png Baseline MX4 Rice grain Furmark 5 Minute Custom 1080p Benchmark.png Baseline MX4 Rice grain 3DMark FireStrike.png Baseline MX4 Rice grain CPU-Z Stress Test.png

    Ronke01, Oct 5, 2018
    #2418
  22. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16

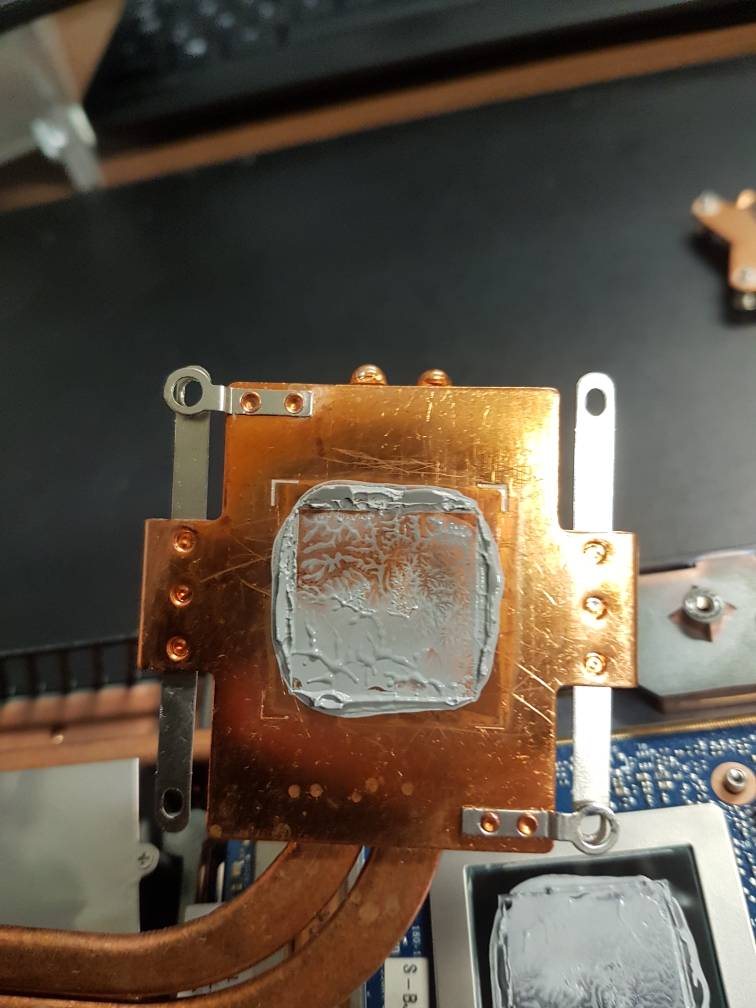

    After these baseline tests, I began tearing down the laptop to clean off the MX4 and apply some fresh Kryonaut.

    Between applying the MX4 and buying the Kryonaut, I learnt that with direct die contact it's a better choice to spread the paste, rather than applying 'a grain of rice'.
    Wether or not this is true, I dont know, but this time I decided to spread the paste, as directed by Thermal Grizzly.

    As can be seen on the CPU, the grain of cooked rice method did give me a consistent and even spread of the compound. The MX4 was also still very 'fresh'.

    On the GPU, on the other hand, it was clear that some portion of the die did not get as much coverage as the other, or was spread out much thinner. (the lightly coated areas on the die and heatsink corresponded) The MX4 also dried out a lot more. This might have caused some higher and uneven temperatures across the die.

    The thermal Grizzly Kryonaut was applied and spread out evenly across both the CPU and GPU die this time around. And I paid close attention to apply the heatsinks nice and evenly. [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 5, 2018
    #2419
  23. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    After this, I ran the same barrage of tests, to see wether or not it had helped… This time I did not take a printscreen of the CPU test, since it wasnt a very good test to begin with, I should have logged core per core temperatures. All I have is the stresstest, which bumps up the temperature untill it throttles anyways. Baseline Kryonaut Spread out Idle.png Baseline Kryonaut Spread out Furmark 5 Minute Custom 1080p Benchmark.png Baseline Kryonaut Spread out 3DMark FireStrike.png

    Ronke01, Oct 5, 2018
    #2420
  24. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    Here is a comparison between the 2 Afterburner Logs, I would have liked to plot the GPU-Z ones in excell, but that thing freaks out with datasets over 255 points...

    Anyways, You can clearly see, while running the same benchmark, that the Thermal Limit sets in way later now with the Kryonaut (on the right), while it manages to maintain higher clocks as well (759Mhz compared to 696Mhz before)

    Furmark 5 Minute Custom 1080p Benchmark Temp Limit compared.png

    Ronke01, Oct 5, 2018
    #2421
  25. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    What's the test?

    Meaker@Sager, Oct 5, 2018
    #2422
  26. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    The comparison? It was a 5 minute FurMark 1080p benchmark.
    You can see it hittin the power limit untill it hits the thermal limit. It's a pretty taxing benchmark.
    So it will always ramp up till thermal throttling under that kind of load.

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 5, 2018
    #2423
  27. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Just be careful running furmark over and over, it's generally not recommended for notebook vrms.

    Meaker@Sager, Oct 5, 2018
    #2424
  28. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    Yeah I know, I only ran it twice now.

    What do you think of the write up and pictures btw?
    Since you asked to post them ;)

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 5, 2018
    #2425
  29. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Pretty standard behaviour for a furmark run from what I see, the drivers do detect the load and limit the card beyond normal limits so it's a bit hard to use for testing too.

    Meaker@Sager, Oct 6, 2018
    #2426
  30. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    As seen on pictures you haven't sealed the gaps between the fan and heatsink? Try doing that with some foil tape.

    t6nn_k, Oct 7, 2018
    #2427
  31. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    Ah, yes I could try that, but I'm pretty happy with the thermals as they sit right now. Theres a bit of hard plastic running from the heatsink till the top port of the fan tho.

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 7, 2018
    #2428
  32. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    If you decide to do it then seal all around the fan.

    t6nn_k, Oct 7, 2018
    #2429
  33. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    If only I could do it without having to reapply the paste

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 7, 2018
    #2430
  34. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    You can do top and sides without removing anything. Just next time when you repaste make sure you remove the heatsink with the fan as one single piece to tape the bottom.

    t6nn_k, Oct 7, 2018
    #2431
  35. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    You do get faster getting a good application with paste the more you practise ;)

    Meaker@Sager, Oct 7, 2018
    #2432
  36. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    Its not that I m bad at it or dislike doing it, just the Kryonaut is pretty costly

    But it was the first time I ever spread it out like that and the Kryonaut applicator is pretty bad to use, wish they would supply a spatula as well

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 7, 2018
    #2433
  37. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    By the way, besides the Furmark I also ran 3DMark Firestrike to compare data.

    With the MSI Afterburner logging everything in a bespoke log viewer, I found out:
    - in general I dropped 2-3 degrees C on my peak GPU temperatures during the same scenes (with a small increas in core clock of about 10-50Mhz)
    -whereas my CPU dropped between 5 to 10 degrees C during the same scenes!!!

    Amazing stuff this Kryonaut!

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Last edited: Oct 8, 2018
    Ronke01, Oct 8, 2018
    #2434
  38. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    Thats what was expected from high end paste.

    t6nn_k, Oct 8, 2018
    #2435
  39. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Lol, work with liquid metal and it really starts getting expensive! Is the price really that bad where you are?

    Meaker@Sager, Oct 8, 2018
    #2436
  40. J-will

    J-will Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    2
    Trophy Points:
    6
    hi guys I plan to upgrade to windows 10 on my P157SM,
    what problems will I have with the drivers ?

    or is it better to stay under windows 7 with no problems ?^^

    J-will, Oct 13, 2018
    #2437
  41. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Take an image backup first so you can just restore back if you have issues.

    Meaker@Sager, Oct 13, 2018
    #2438
  42. jasonlam

    jasonlam Notebook Guru

    Reputations:
    177
    Messages:
    72
    Likes Received:
    40
    Trophy Points:
    26
    I have been using Windows 10 for 2 years now. No issue at all.

    I am still using the drivers I have for Windows 7.

    jasonlam, Oct 13, 2018
    #2439
  43. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Still worth taking a backup before, this is windows we are talking about.

    Meaker@Sager, Oct 13, 2018
    #2440
  44. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    The keyboard lights stop working, the screen sometimes dims automaticly to full dim. Other than that no major issues.

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 13, 2018
    #2441
  45. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    The LEDs have their own cable coming from the keyboard, check that's in on the motherboard.

    Meaker@Sager, Oct 13, 2018
    #2442
  46. Ronke01

    Ronke01 Notebook Guru

    Reputations:
    7
    Messages:
    71
    Likes Received:
    2
    Trophy Points:
    16
    Yeah they flash up on start up and go off once win 10 is up... its a driver issue

    Verstuurd vanaf mijn SM-G930F met Tapatalk

    Ronke01, Oct 13, 2018
    #2443
  47. peonpeon

    peonpeon Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    6
    Hello All,
    I was hoping for some help clarifying GPU upgrade paths. I would like to upgrade to a 1070 but I'm confused with some things.
    I see there are 2 versions of the 1070 card that are around: the MSI and the Gecube/(Eurocom?)
    Are revisions of these GPU's that I should be aware will or will not work?
    Are there specific GPU BIOS that is necessary to install for these to work? mobo BIOS
    Is it true that the Gecube version is prone to blowing up?
    Can the modifications be done in place to the current heatsink?

    I'm ok with purchasing a used card pulled from another machine just so it will last for another 6 months or so until the 2070 mobility lines are released so I'm not too picky about getting a pristine new card.
    Thanks in advance!

    peonpeon, Oct 27, 2018
    #2444
  48. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Most cards are the wrong shape so you need one of those two. No bios required iirc. The gecube had a much weaker vrm.

    Meaker@Sager, Oct 27, 2018
    #2445
  49. peonpeon

    peonpeon Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    1
    Trophy Points:
    6
    Thank you for your quick answer!

    peonpeon, Oct 27, 2018
    #2446
  50. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    The MSI card might need you to cut some bits in the heatsink iirc which would be the downside to that.

    Meaker@Sager, Oct 28, 2018
    #2447
← Previous pageNext page →
