*** Official Clevo P775DM2/3(-G)/P75xDM2(-G) (Sager NP9152/NP9172) WINGMAN 2.0/BATMAN 3.0 Lounge ***

Mine is as clean as when I bought it about a year and half ago. That doesn't make any sense! As Meaker said, don't make statements like that

Enviado do meu SM-N950F através do Tapatalk



Denuvo is pretty invasive as software too, it has been known to cause issues. With all problems you have to approach it from multiple angles one by one until you get the solution.



Is there a way to enable "Wake on keyboard"? I want to stash the laptop under the table to clear space on the desk.



It's not recommended to run them hard with the lid closed by the way.



Why so?

Enviado do meu SM-N950F através do Tapatalk



They draw air through the keyboard. Closing the lid will reduce airflow and create a hot spot.



The new P775 with 9th gen Intel Desktop Core processors are about to come out:

https://rjtech.com/shop/index.php?dispatch=products.view&product_id=30583

This model is notorious for being more cramped and overheating more, is anyone here gonna get one of them? is it recommended to do so?



As I understand it the P775TM1-G is the only Clevo with the RTX-2080 ?



Clevo P751dm2-g: Bios B10611, EC10601.
I´m on windows 10 64 bit, newest build. Why isnt the control center working correctly and wont start after reboot? I tried many versions... actual I´m on the newest vom the clevo download site: Control Center 5.0001.1.27. When I start the UI by hand everything seems fine, but the fan control seems it isnt working. Is there an other version? Or am I doing something wrong?



750 too.



How much can you OC your GTX1070 in a stable way with Afterburner?



Who are you asking? Mostly they are going to be power limited.



I could at least go this +mhz:



It's better than nothing, I guess.



So around 1850mhz boost at that speed, not bad. Is it crashing if you go further?



Yep, it does crash with more OC. I think this is the limit of my GTX1070.



Sounds like it unless you tune the voltage/frequency curve.



What is lastest bios version Prema made for the P775DM2/3(-G)/P75xDM2? I don't know if even have prema vbios doesn't have letter and number the end in bios version in GPU Z.



There isn't a public version from Prema. The latest official version (from clevo) of BIOS is 1.06.10

Enviado do meu SM-N950F através do Tapatalk



I have prema I meant people with Prema.



oopsie! My bad



When and where did you get the bios?



HIDevolution



Then give them a shout they should be able to make sure you have the latest.



What options do i have if i want to upgrade my WQHD 120hz screen right now? I probably want to get the FHD 144hz one but noticed it's AHVA and 25ms response time, is there a FHD 120Hz-144Hz variant too with TN? Gsync is not a issue, but the weird "interlaced" lines still trigger me after all this time

In general i'm a bit torn apart right now, if i should upgrade my book to a 9700k and a 2080 RTX with heatsink or just get a new book in general.



Technically with your specs you should be waiting for the generation after



Thanks I will so what you guys recommend lower temps on this model? I pretty much want to stock clocks maybe undervolt CPU lower temps?But if I wanted overclock maybe highest would be 4.6 or 4.7 my CPU is 7700k delided maybe Mr. Fox or Ultra Male can help on this but I doubt it seen people really great temps on here even tho this model gets a lot of hate on it's cooling.



With delid I ran 4.7 with a slightly below average chip on the p870dm3.



@Meaker@Sager Yeah is probably the most reasonable, would depend solely on the point if i could sell my current book. And about the display do you have some suggestions about what to get is compatible ?



Anybody know what drivers not compatible with windows 7? Any driver links would be welcome going back to 7 . kaby lake not compatible with windoes 7?



Ok just a headsup, i gave the N173HHE-G32 (Rev C2) a go and ordered it from amazon which surprisingly already arrived today, took me 5 mins to exchange and i must say it runs circles around the old B173QTN01.0 i had, no gsync anymore but superfast response time and very good colors for a TN Panel (8bit), i think it's the best compromise between getting a 20x0 card and a new notebook, cause going from 2560x1440 to 1920x1080 should boost the fps quite a bit. No issues i noticed so far, sadly the freesync feature isn't working either cause technically gsync in notebooks was freesync all along and switching brightness also works.



Yes non certified g-sync is for external panels only.



Called HIDevolution they said I had latest bios but vBIOS seems I have stock I checked NVIDIA inspector bios doesn't say modified did Prema release vBIOS for this model?



Not that I'm aware, it's not going to help much anyway.



Has anyone tried this before?

https://www.aliexpress.com/item/New...96-40ea-9682-e21e417a9119&transAbTest=ae803_4



The stock heatsink?



Hello, Do we know if our dm3 can be upgraded with rtx cards yet ?



It different from what I have right now. My heatsink is joined together so will this be better than the joined one since it is separate?



Not by default.



There's a fair chance you'll see little to no improvement - you might benefit more from other changes (paste, pads, undervolt, etc).

Are you running into overheating or throttling issues on your current heatsink?



Previously though. I did undervolt the CPU and GPU and it is better. However, I read that it was because the heatsinks are joint together that is causing the high temps.



That's generally a myth.



Any help with enabling second monitor on Win10 via USB Type C port please?

Update: It can be done in the bios settings, advanced chipset settings to map DP to TB.



Awesome
Another feature I didn't know the laptop had



Yes the desktop series (770, 750 and 870) can do this to make the i/o flexible.



I did know we could output for 3 screens but didnt know we could also use the usb type c for output! Damn i need to get updated lol



Note that does disable the DP, its re-routing the signal.

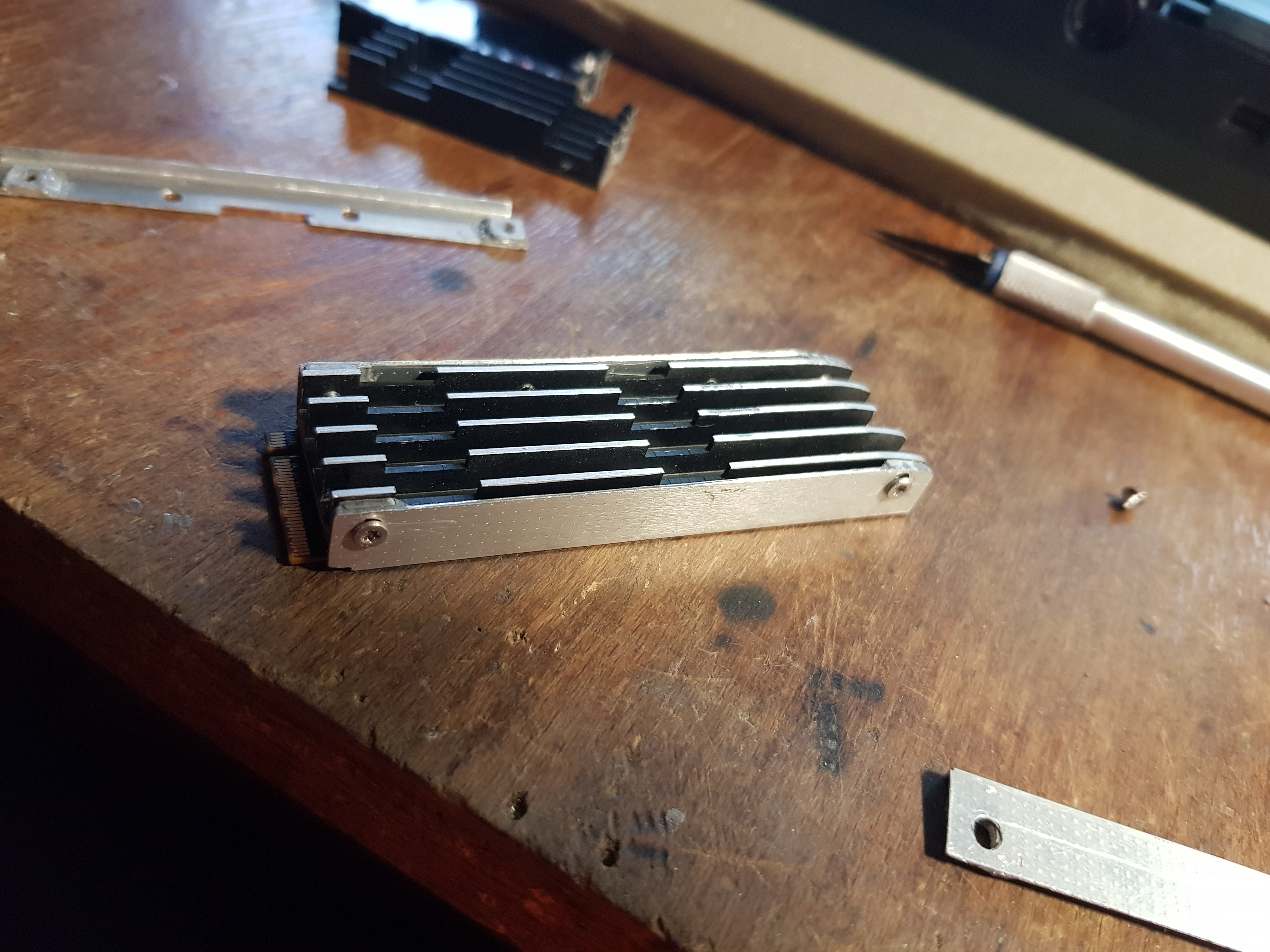

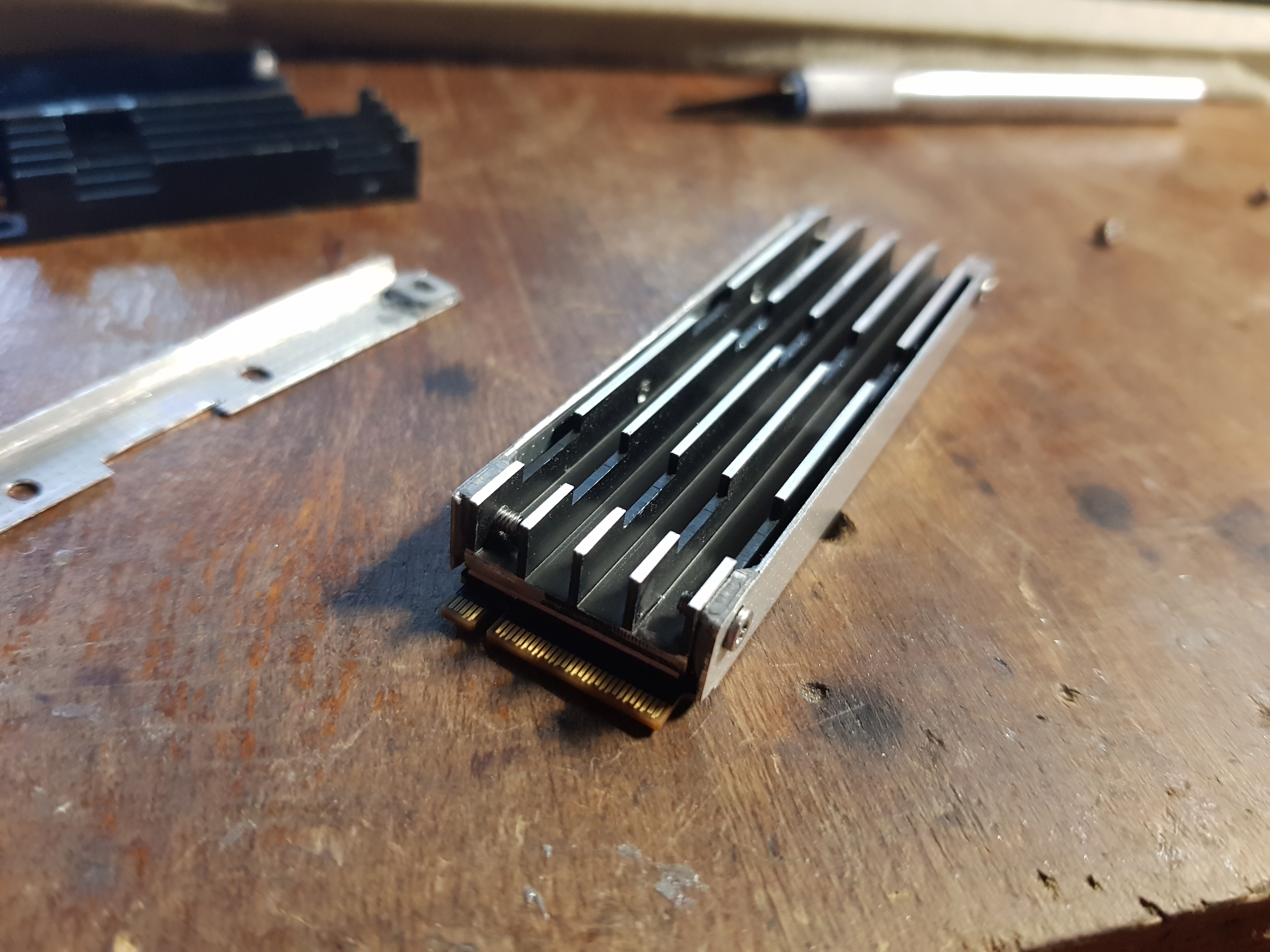

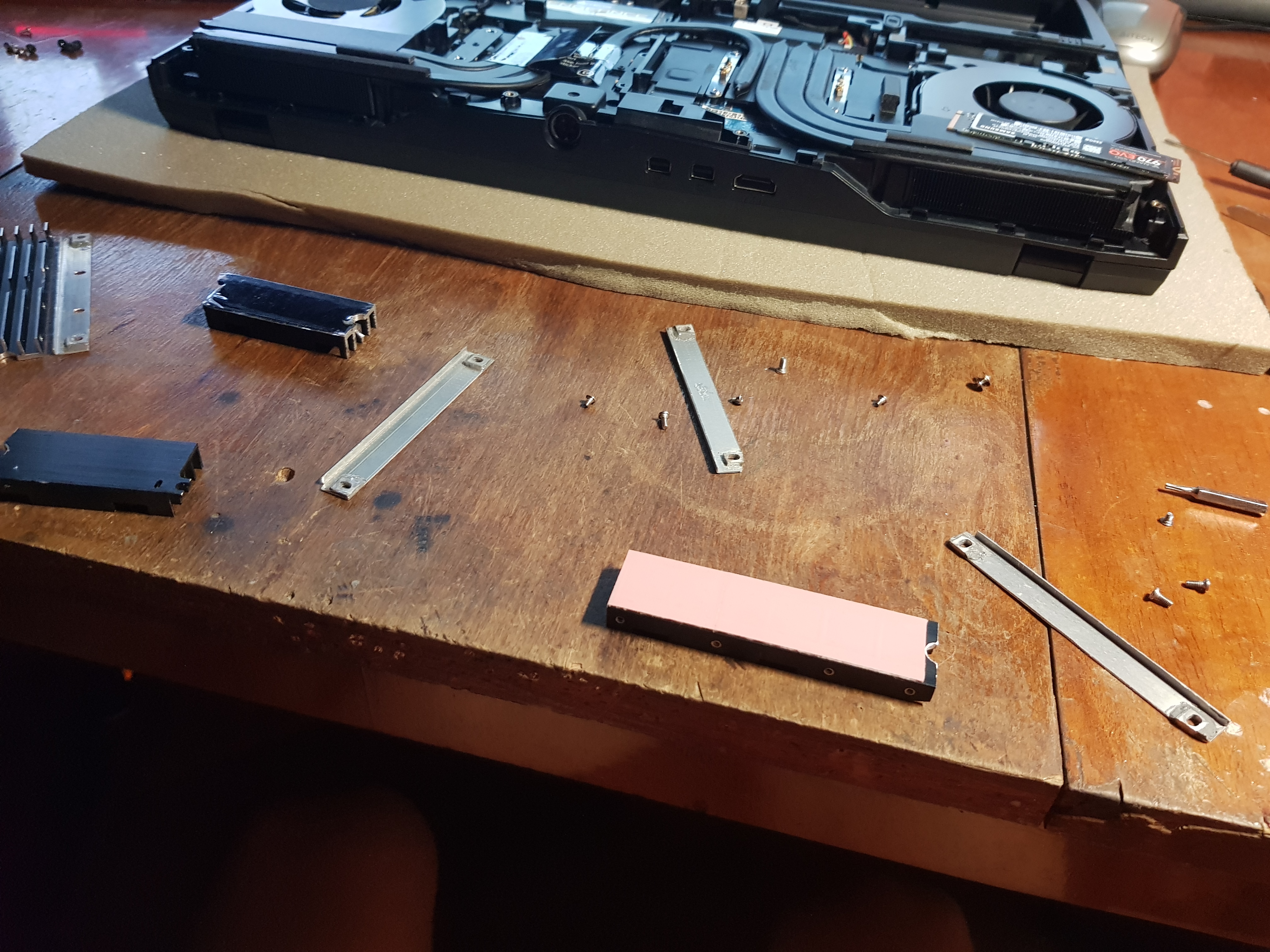

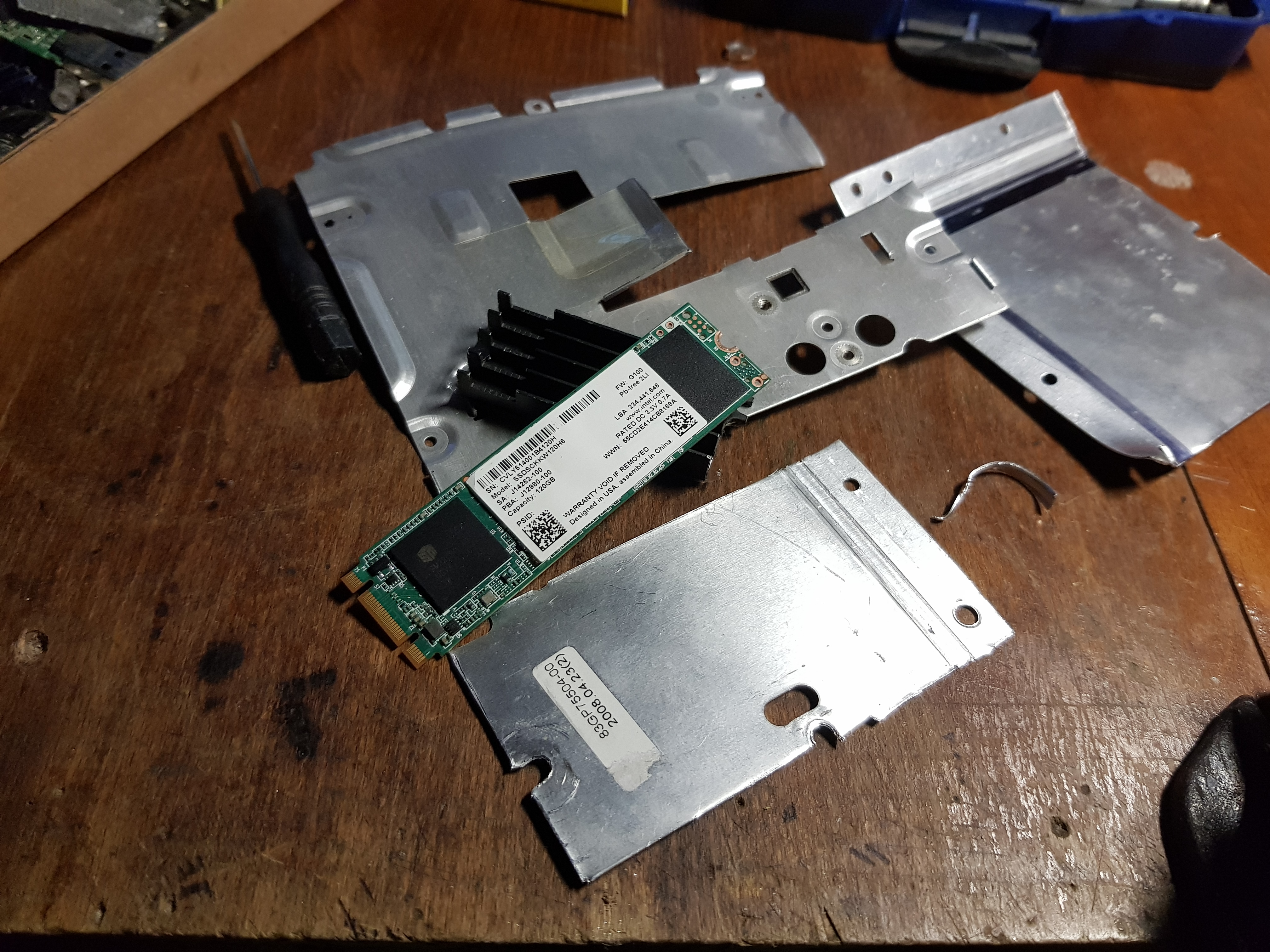

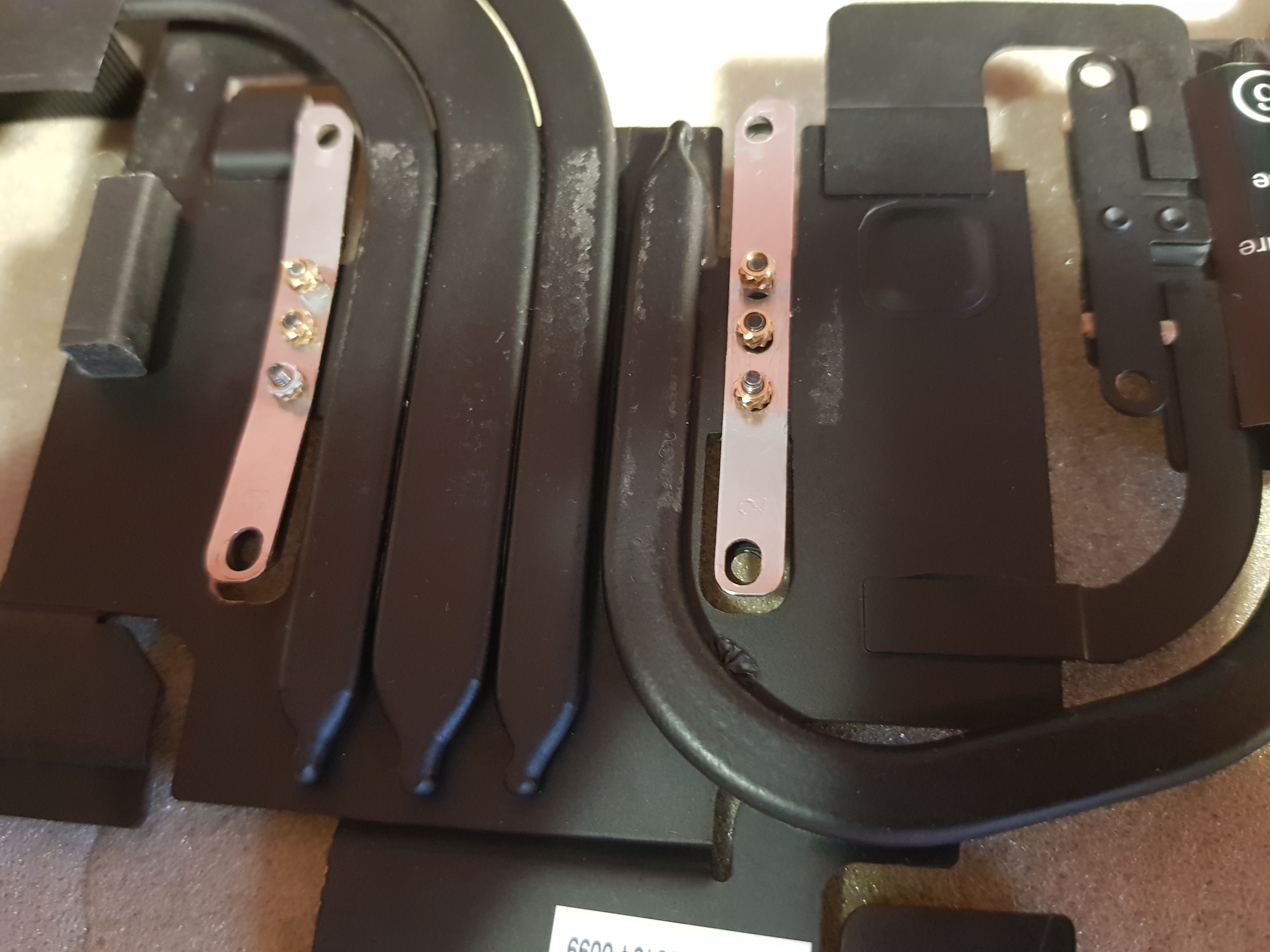

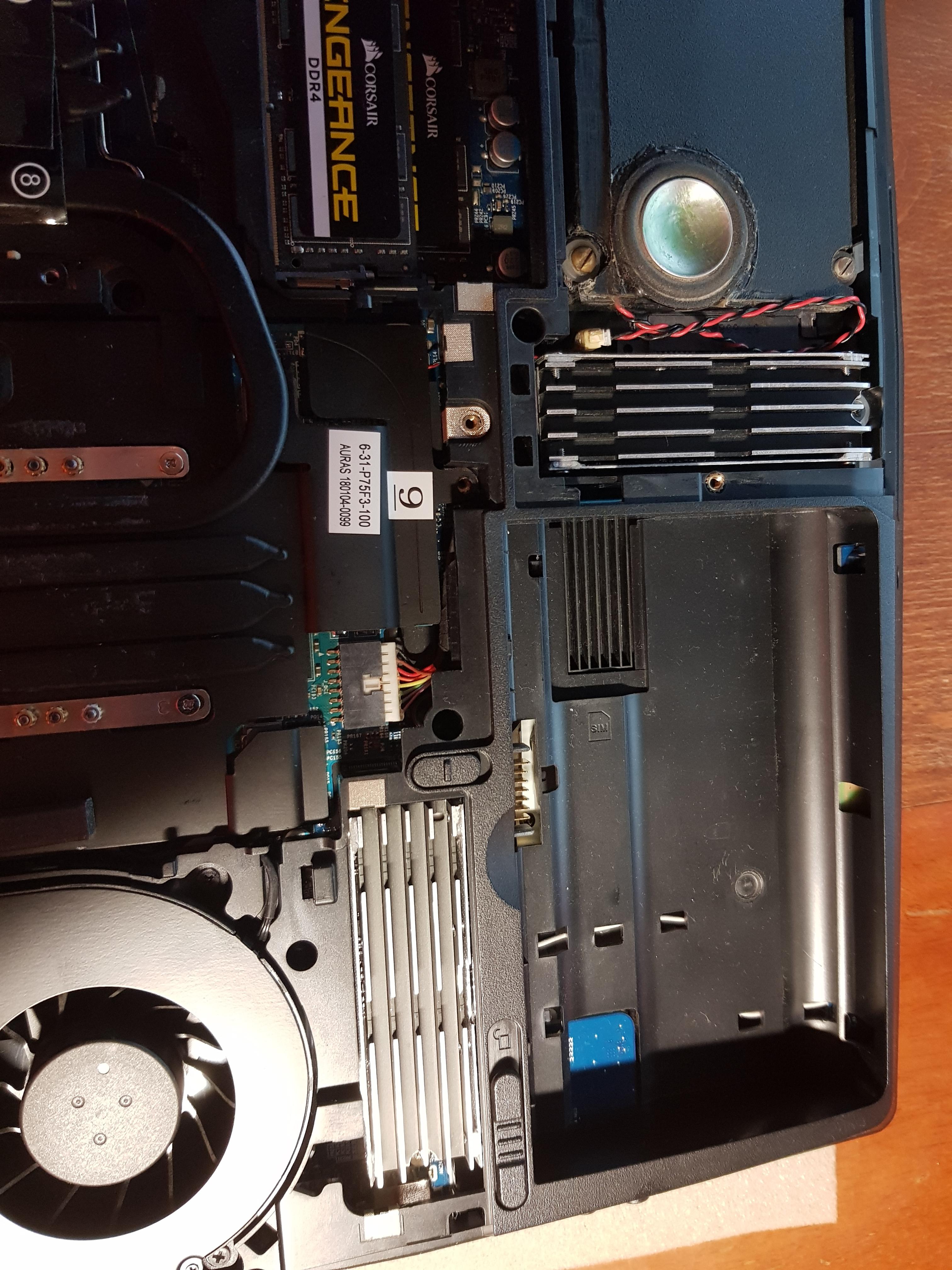

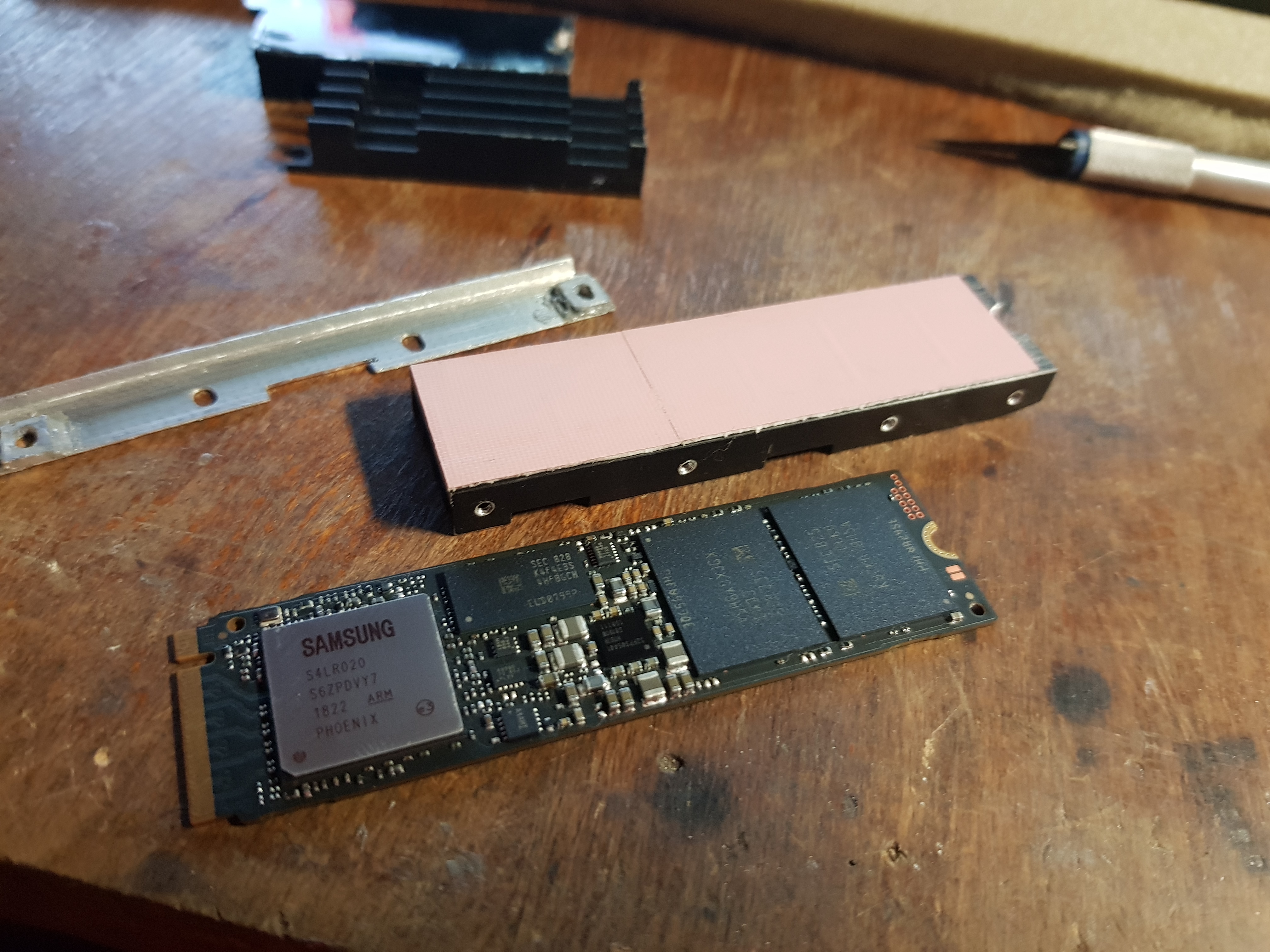

For some time I was struggling to make heatsinks for the m2 drives... had to fight to make them fit and still look nice, so I had several attempts, some of them were not pictured...

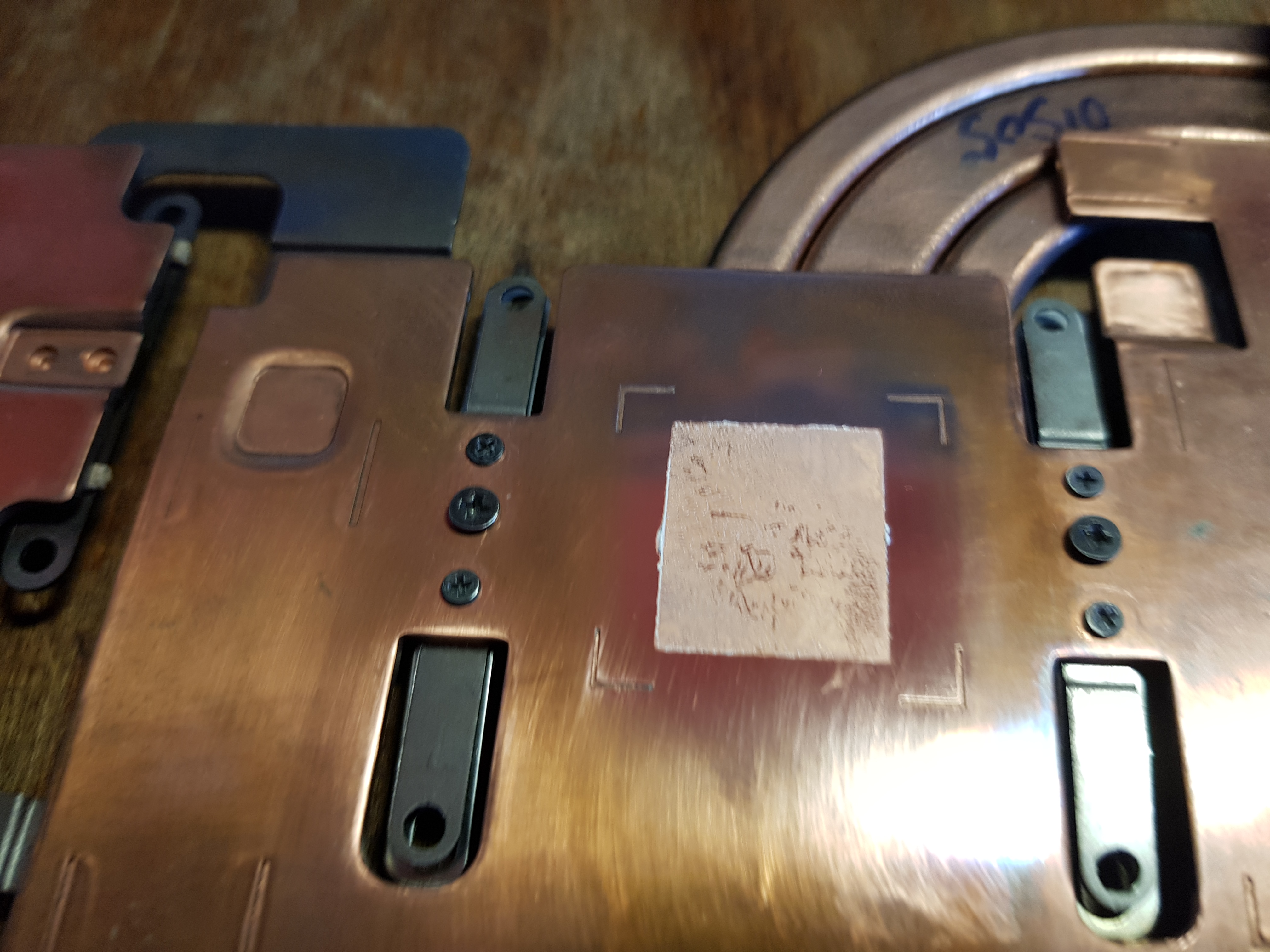

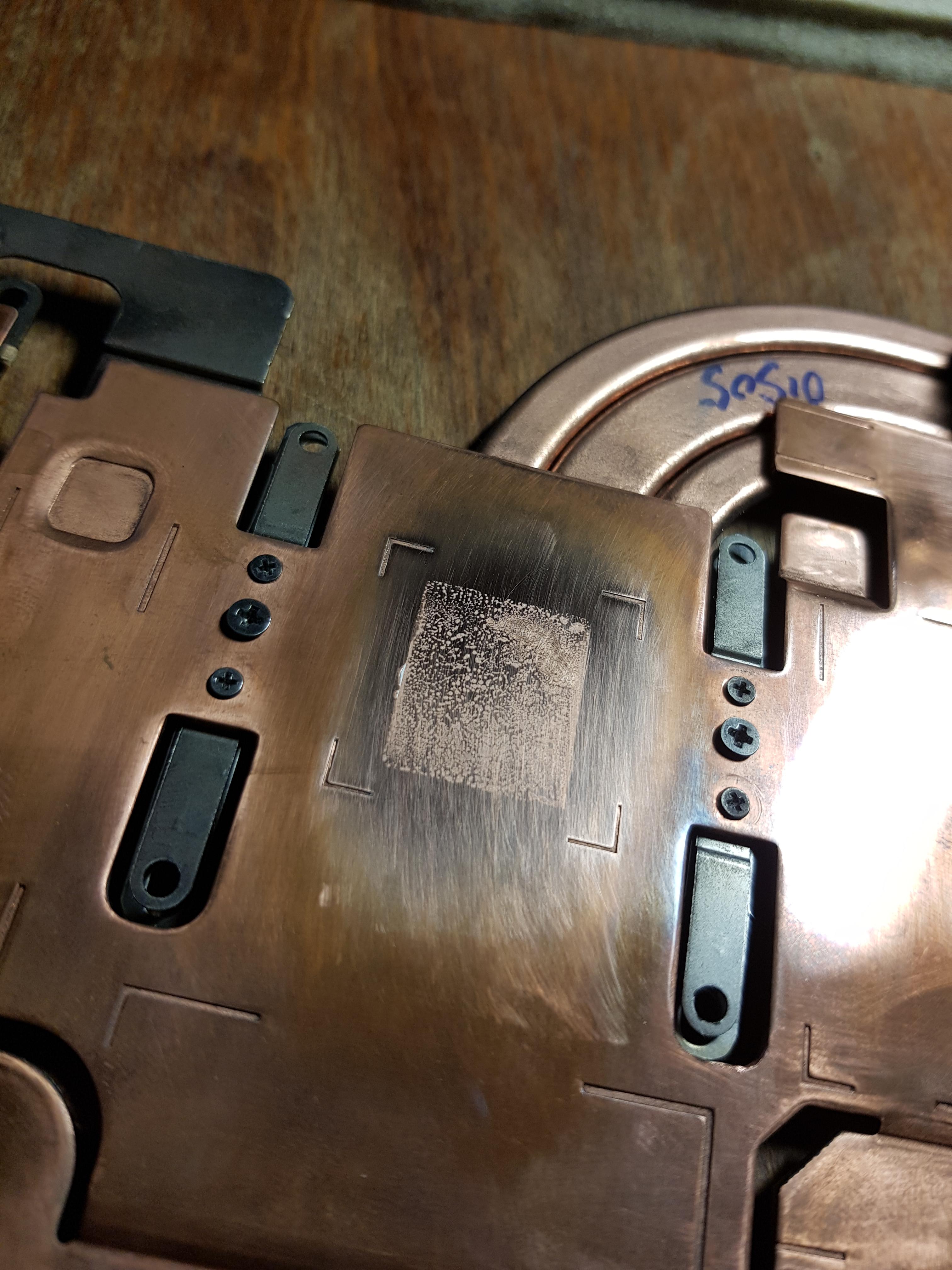

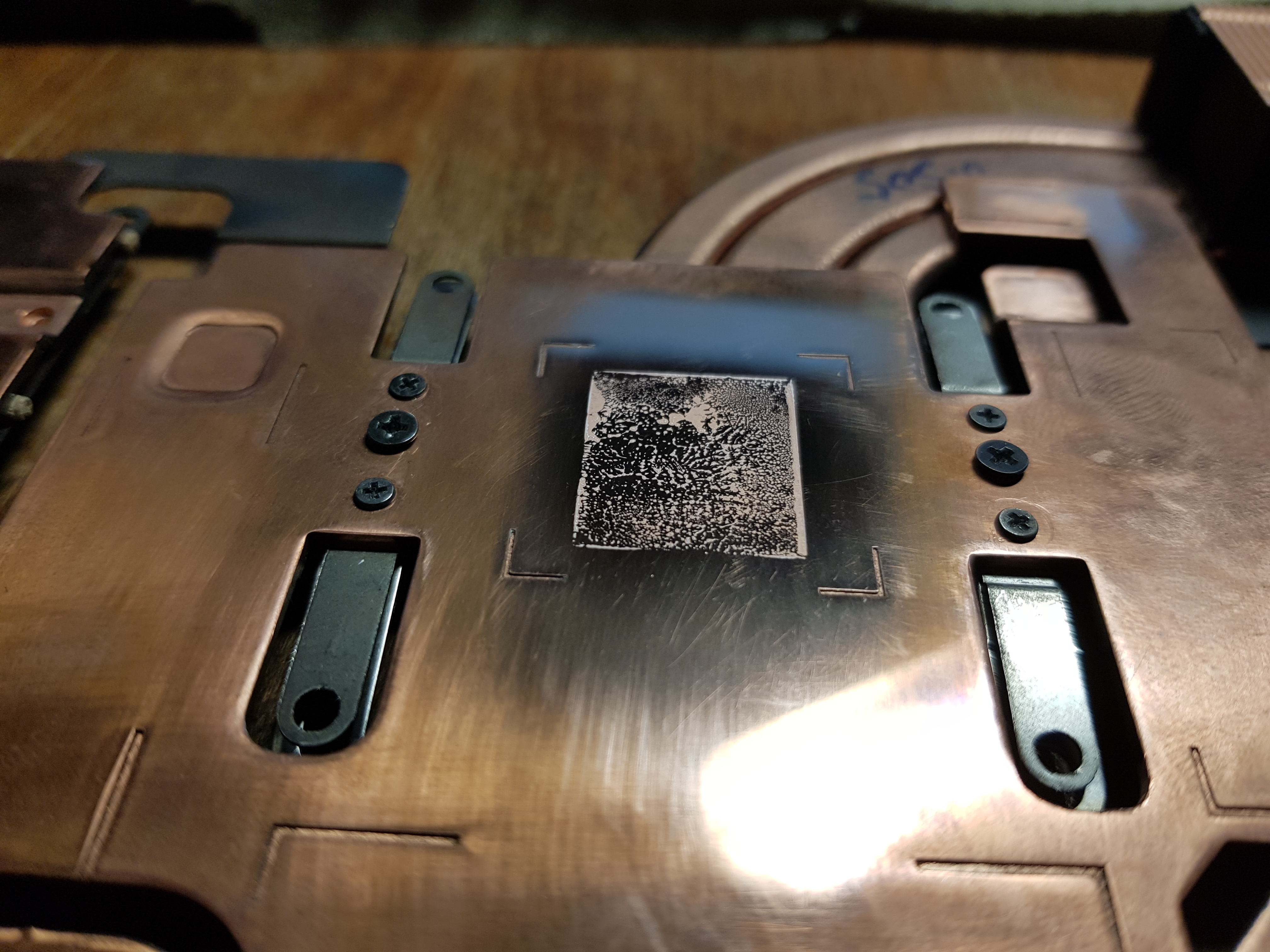

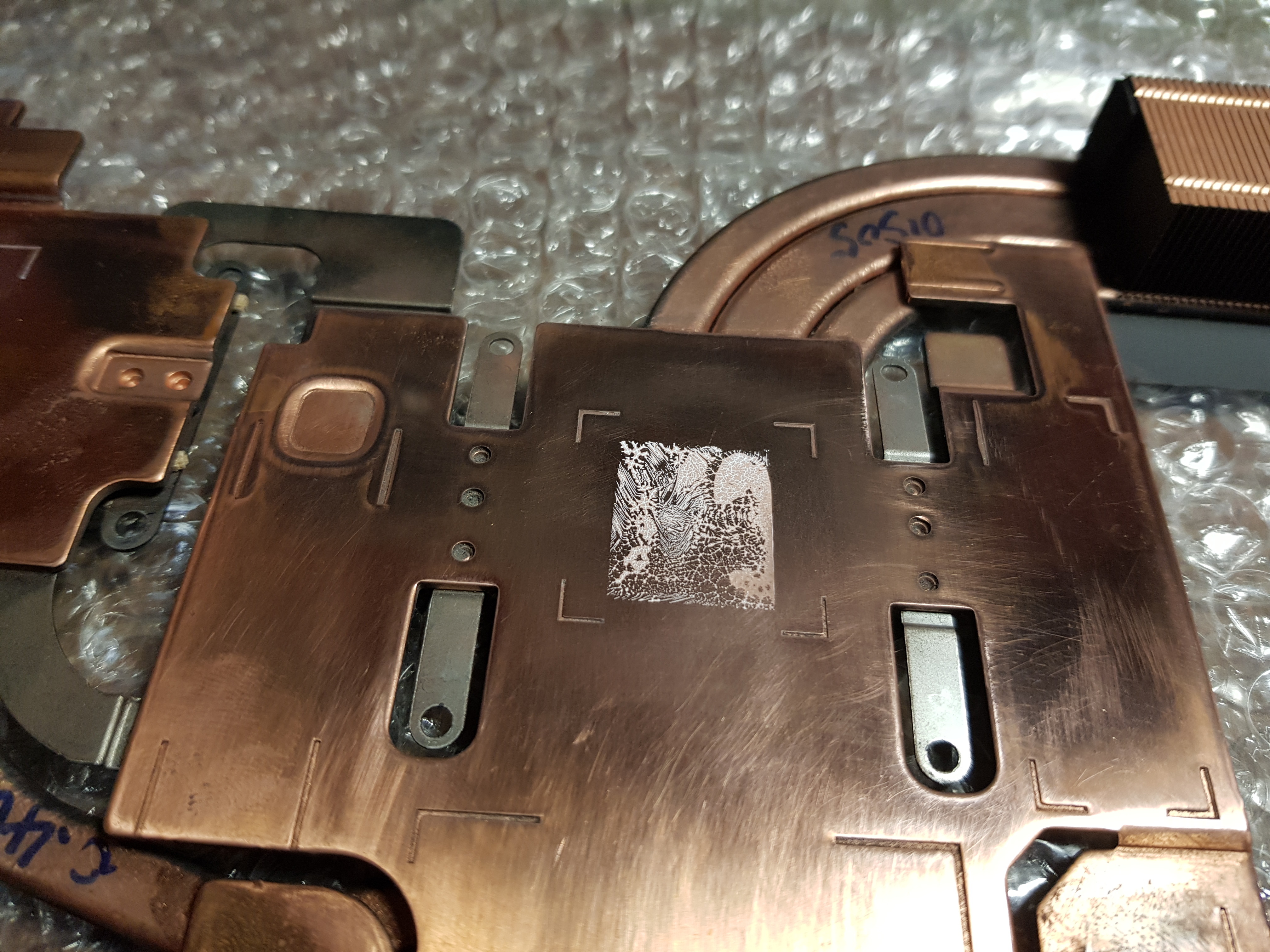

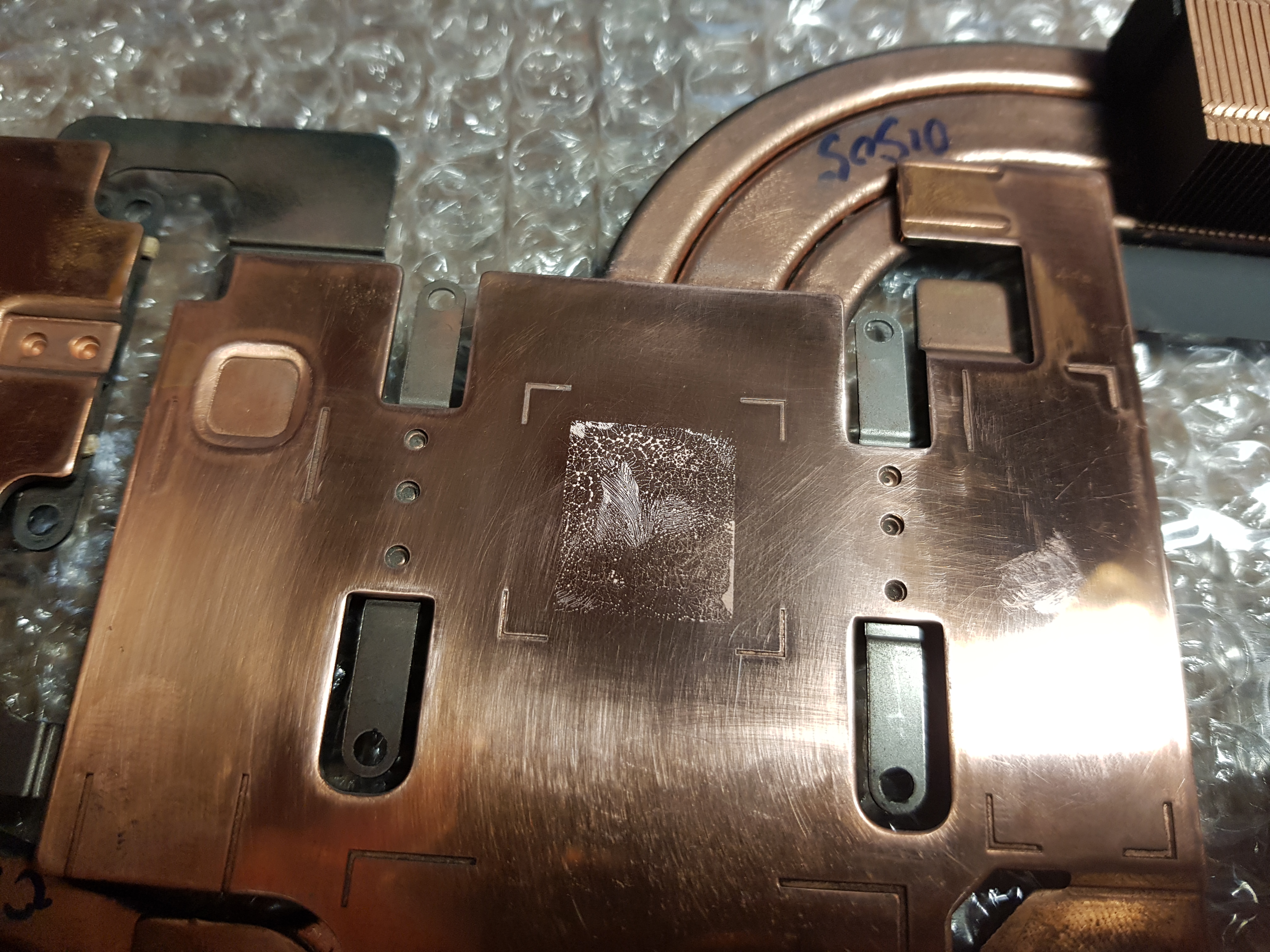

And, another thing, this lapping.. After sanding the heatsink the thermal contact was awful, so I spend like more than a month on lapping, still it's not perfect but thermal results are better with almost 15C...
In the end, this is very risky, one mistake and you did a "mistake", it's enough to chip a corner of this die and GPU dies partially or completely, so I decided to stop at some point.

Conclusion: this percent of die convexity may slightly vary with temperature, so, "cold" lapping will always be imperfect. Anyway, this process is long and requires patience. Clevo could do this heatsink a little better though..

Maybe this is not a very interesting post, but I would like to see if anyone else tried lapping...

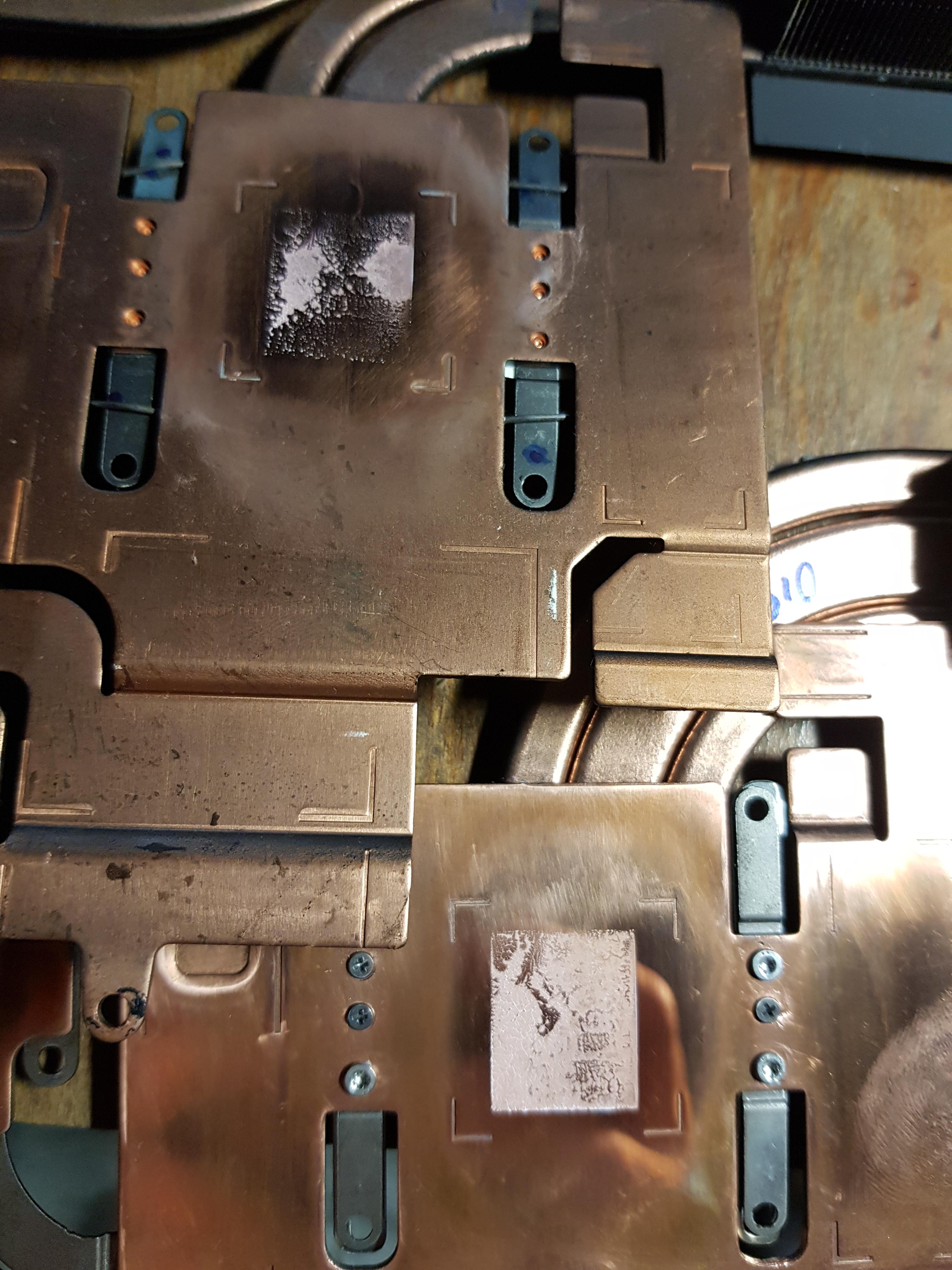

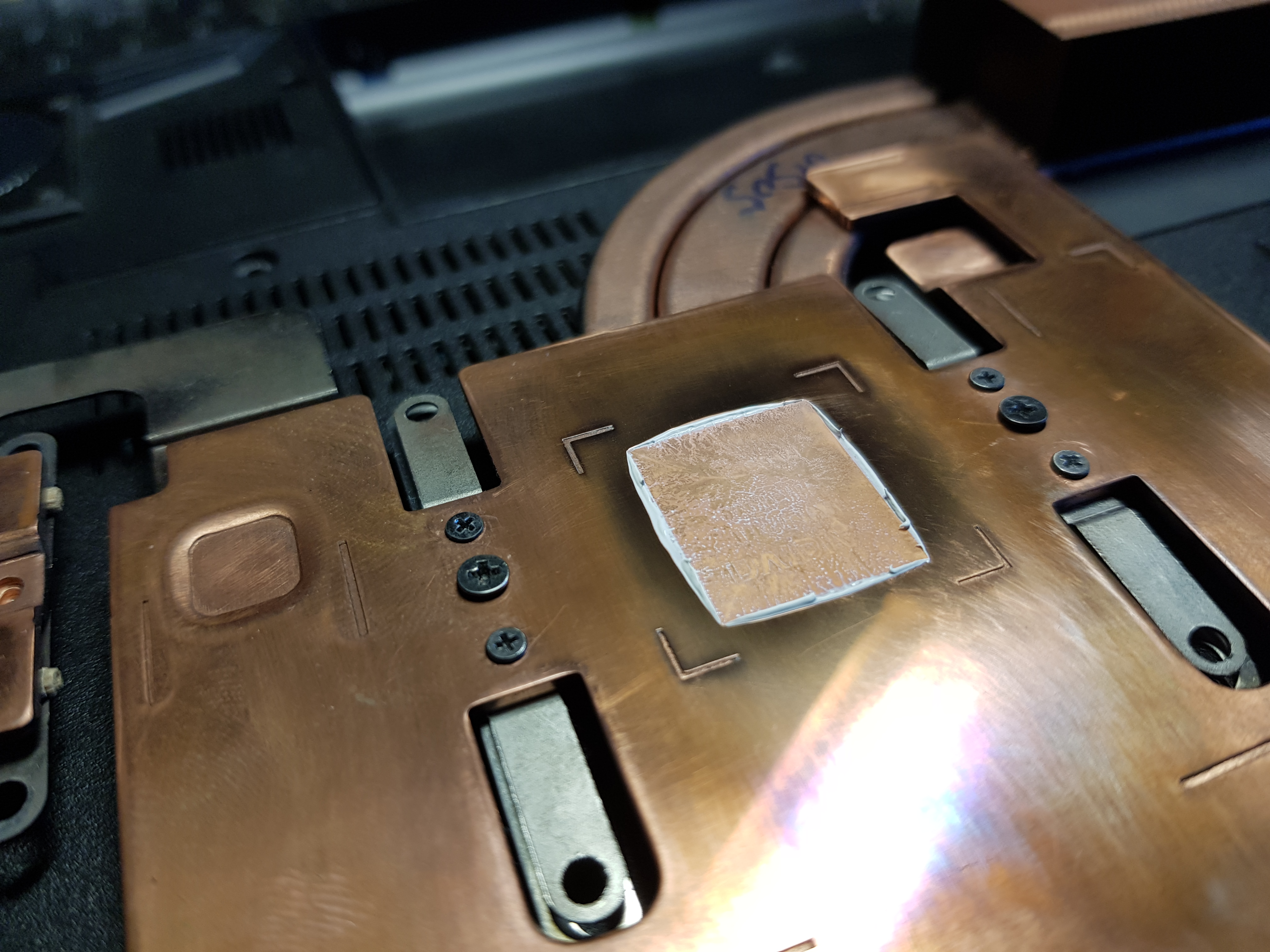

In the last picture is a comparison between original heatsink "non existent" lapping vs my attempt of lapping.



Hi,

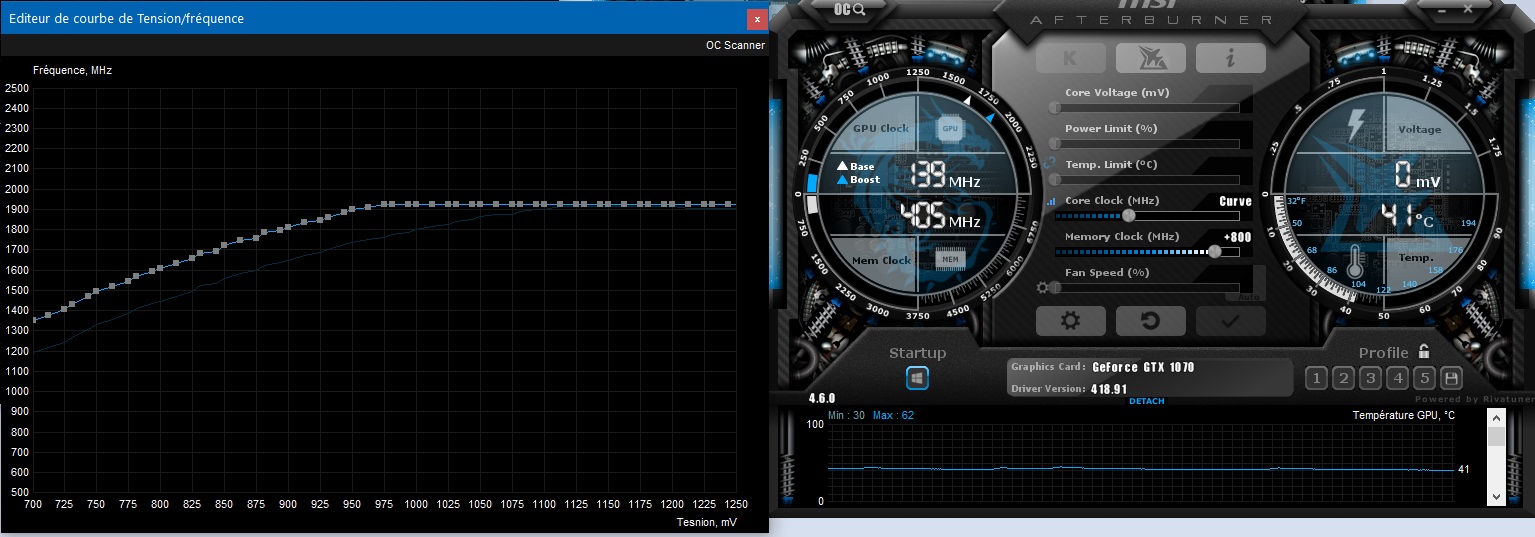

Here is my curve for more than a year now. I overclocked the Vram to +800mhz (It's to much I think but it works nice). No problems running Heaven or Valley benchs. No problem with 3Dmark or in games. This is the best I did.
I made another curve (+150mhz and +800 from stock). Those curves have the same result with benchmarks.
Maybe can be better, but a lot of time to spend for ... 1 or 2 fps ... or less.
From stock I got 5/6 fps with Arma3 and KingdomCome with OC.



My right speaker in the P775DM3-G has the membrane unglued and does a lot of back noise. Anyone know where can I buy speakers to replace mine!? I live in Europe and the store where I bought it... Well let's just say I don't want anything to do with them anymore.
@John@OBSIDIAN-PC any tips?

Feel free to pm me with links
