*** Official Clevo P870DM/Sager NP9870-G Owner's Lounge - Phoenix has arisen! ***

i saw that but you'd need...

1. an SLI bridge cable
2. 2 x 330w PSUs
3. a PSU converter box

cos 1 x 330w PSU isn't enough to power it in SLI mode.



For me I have all of that already.

Sent from my SM-N920C using Tapatalk



then you'll need to get 2 1070s with an SLI connector. do a bit of case modding and card shaving to get it to fit.

would be interested in seeing how that turns out!



Befor that, I just want to make sure there is no 1080 will appear suddenly within few weeks, that's why I asked @Prema to give us any information can help us to decide. 1080 even one card will be better. Hope that he can give us the answer soon.

Sent from my SM-N920C using Tapatalk

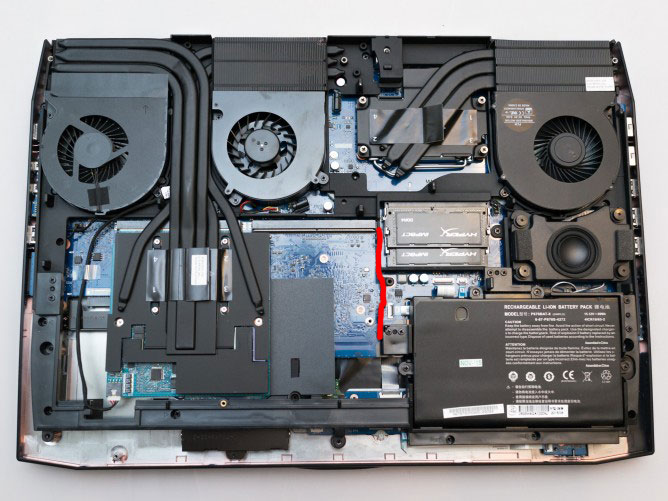

the red line is what you would need to cut out in order to fit the slave GPU and it's not that bad since it doesn't even contact the motherboard and you won't lose any mounting posts.

installing and removing RAM sticks might be a bit tricky but not bad as there should be enough space to pull the arms away from the modules.

@Meaker@Sager said that the MSI 1080s may have the dies shifted a bit. A 1070 desktop is as powerful as a titan x maxwell and having 2 laptop 1070s is still pretty good.



Well the ram sticks could always be installed below the keyboard



the slave GPU doesn't completely touch the RAM modules and you still have a bit of space to remove the modules so you can still use all 4 slots nicely.



Hey guys, just bought two Samsung 512gb nvme drives that I want to get running in raid 0 as a boot device.

does anyone have an idiot guide, nowhere within the bios can I find the raid menu to setup the raid array, can anyone please give me a hand, its really annoying me



Never mind, sorted guys, I think !



I see this in the web page of eurocom:

RAID 0 - for maximum performance; 2x M.2 PCIe / SATA are required; NVMe SSD are not RAIDable



That's not true, I had 2x 950 PRO NVMe SSDs installed in RAID 0

you just need the Samsung 950/960 Pro/960 EVO NVMe Driver v2.0 (INF) otherwise the SSDs / RAID Array won't show up in the Windows setup / partition selection screen



Sweet! My MSI GTX 1070 has shipped. I'll report back when I get it installed.

Sent from my SM-N910G using Tapatalk



Did you get the SLI version?

Sent from my SM-N920C using Tapatalk



Will find out but I doubt it.

Funny thing that I ordered it when I said I was gonna wait for the gtx 11 series

Sent from my SM-N910G using Tapatalk



I'm probably the first consumer to do this... Maybe?

Sent from my SM-N910G using Tapatalk



In the P870DM, yeah AFAIK.

This guy MSI 1070 into AW 17 R1:
http://forum.notebookreview.com/threads/msi-1070-in-alienware-17-r1-ranger-success.797893/



They still have some ongoing issues relating to their hardware. I'm hoping clevo hardware will be a bit lenient.

Sent from my SM-N910G using Tapatalk



I bear no responsibility for the cheapo yumcha calipers, I tried to be as accurate as possible but some weren't directly measurable



At least you/we have the motherboard connectors J_DC1 J_DC2 for figuring some way of adding more juice to the card



well, if eurocom did it then i should be able to do it.

will be trying j95's modded drivers (he stated that he added support / there's already support for the MSI 1070) to see if they work.



If you end up being able to go SLI, I have a SLI cable for your model still.



Will have to check if the card I get has the SLI plug to begin with. otherwise it's a bust.

though i am happy for someone else to try

Sent from my SM-T560NU using Tapatalk



They have a mod wire on the card it's worth looking at



i was told that it was because it was an ES that they took photos of and not a production card.



Fair enough, you can test before getting a soldering iron out anyway.



doesn't MSI use a rebranded version of the Tornado F5?



You've got it backwards, the Tornado F5 is a rebranded MSI barebones.



Yeah, they design all their own machines.



thanks. i wasn't sure which way it was.



and what about use sli of this

http://www.ebay.com/itm/Alienware-1...434407?hash=item1eb71214e7:g:VxMAAOSw9NdXwK8u

thanks



Because Alienware have a bad reputation for selling low quality cards
Because AW cards generally have problems in Clevo laptops with the missing EC signal thing
Because who would pay for two of them when they're last gen tech and a 1070 is the same-ish price and more powerful for less power

I am surprised no one tried in the DM. Maybe everyone who could, knew that Pascal was coming soon, and wanted to save their pennies.

Lol @ " VR ready" though. Not since Nvidia shifted the goal posts to Pascal minimum...



That's the P775DM 980. @Mr. Fox has already done it in SLI.



My googlefu sux then. Link?



Dunno where the posts are about it on this forum, but here's his FS score. If you mean what the card looks like, here.



The problem with those cards was heat. We need better heatsinks to take care of the heat.

Also you will have to modify the 980M heatsinks since the cards are longer and have additional components that need cooling.



for a moment i thought you were talking about the 1070 but then i realised it was about the 980DT.

that shouldn't be a problem with the MSI 1070 since it uses slightly more than the 980M and you get 50-60% more GPU power. When mine arrives I'm just gonna do a minor OC to match the desktop boost speed and hopefully get better performance because of that extra cluster.

EDIT: The dream here is to see if it's possible to do 2 x MSI 1070s in SLI with the P870DM-G (G1) / "Gen-1" with a bit of modding. We've already outline the possible internal structural changes and issues with regards to spacing between the master and slave drives, which are pretty minor and i think it is possible with 660W power input.

EDIT2: I wonder if i can get a decent amount for the 980 LOL



I think you don't need to cut out the wall completely but just cut out the top half of the wall that's next to the slave GPU. that can be done with a dremel, sandpaper, steady hands, and a lot of patience.



Guys, Eurocom offers 1070 in 870dm-g, maybe some got news that 1080 will be possible in future?



I think my mother board is busted. Need a replacement board STAT!

I am so stupid and embarrassed.

Sent from my SM-T560NU using Tapatalk



What happened?

Sent from my SM-N920C using Tapatalk



Busted the master mxm slot. Broke a bunch of contacts. So now I am in a frantic rush to find a replacement. I'm even asking @woodzstack for help.

Sent from my SM-T560NU using Tapatalk



How is that happened?

Sent from my SM-N920C using Tapatalk



Oh man, probably from trying to reinsert the gpu. Must have bumped something to break the contacts in the slot.

There goes the warranty... Oh well.

Might have to go to eurocom and buy the part there and hope the reassembly is easy.

Sent from my SM-T560NU using Tapatalk



This is bad news, I'm sorry for what happened to you we were waiting for you to give us your experience with the 1070, now you have another problem to fix 1st.
I lost my 2 980m GPU'S in a tragedy accident with CLU leaked on their boards. I'm thinking to sell the whole machine because of that, or waiting to make sure that I can upgrade to any new Pascal's


Sent from my SM-N920C using Tapatalk



Teardown by @Mr. Fox https://biosmods.wordpress.com/2015/10/21/sky-x9/4/ Also ask @bloodhawk for videos

Motherboard http://www.ebay.com/itm/MAINBOARD-MOTHERBOARD-FOR-CLEVO-P870DM-G-/302002364721
http://www.eurocom.com/ec/upgrade(2,349,0)ec



Take a deep breath and a closer look at the slot, maybe it's just some bend contacts which can be brought back into place...



Tried that and no luck.

Sent from my SM-T560NU using Tapatalk



Can you see what is wrong?



2-3 contacts are broken.

Sent from my SM-T560NU using Tapatalk



Not all PINs are required to run the GPU (many are unused)...
Did you try it, yet?
