*** Official Clevo P870DM/Sager NP9870-G Owner's Lounge - Phoenix has arisen! ***

New to lounge so hope ok to paste random tech question here, as a bit stumped trying to fix machine. Had Eurocom X9/P870DM for last couple of years and has been great, but the other week the fans started playing up and now it shuts down after about 30 seconds. Listed below problem breakdown incase could suggest any solutions.

1. Fans were starting to come on hard after about half an hour of playing a game, then the machine shut itself down, hence initially deciding to try and fix.
2. Replaced the thermal paste but then fans cam on hard straight after booting, and the machine shut down after about a minute.
3. Replaced the thermal paste with newer stock and recommended amount of paste, (think used too much in 2). Result same as 2.
3. As SLI, tried running in single card mode but with each GPU in turn incase GPU issue. Same problem happened as 2.
4. During 2 was able to load a Windows temperature program and temperatures seemed fine, so recon temperature problem from 1. might be fixed. Thinking maybe some fan sensor issue telling the system the fans are not rotating, when they are, so the system shuts itself down for safety sake? Could this be the case, and would there be any way to just run the system with a single gpu and single gpu fan to check each gpu fan in turn (if the sensors are located on the fans themselves)?



Please check with our Support Team - just submit Support request via our website. Meantime make sure that all of fans are clean and there is no dirt / dust inside the system preventing air flow. Repasting CPU/GPU is good idea too.



We are planning to test in P870DM our new MXM3 82x105mm GPUS gtx 1070 and 1060 that work with standard gtx 980M heatsinks. So stay tunned.



Any potential of 1070's in SLI with these MXM3 cards?



No they lack sli connectors



that's confirmed 1070s with no SLI?



I believe they said all their cards.



As having a fan issue at moment, should SpeedFan work on the p870, and if so have folk been able to get all three fan readings or just the CPU? At mo just getting a faulty (10M RPM), reading for the CPU fan, and no GPU fan info at all.



is there anyway to use a 120hz external monitor with this laptop? seems like there's no ports to support it. smh



dear guy!
i think you can upgrade to GTX 1080 .

here is VGA and heatsink http://forum.notebookreview.com/thr...-eu-seller-low-prices-for-ww-shipping.807154/

and here is DIY PowerCable

https://item.taobao.com/item.htm?sp...IhEwV&id=561066391727&ns=1&abbucket=13#detail



This is an educative post.



It's not that simple. The heatsink won't fit and the older MXM slots need to be rewired as well in order to even fire up a Clevo Pascal GPU...also the housing needs some minor modifications to even accommodate the card.



Is anyone using 3200mhz g.skill memory?
Can you please tell me the memory timing shown in bios?

And @Prema , please let your old friend try you mighty unlocked bios for p775dm3-g.
CPU is always throttling when both GPU and CPU are under load.



You're way behind the eight ball on this. We already stated that the clevo cards are a no go.

Sent from my SM-T560NU using Tapatalk

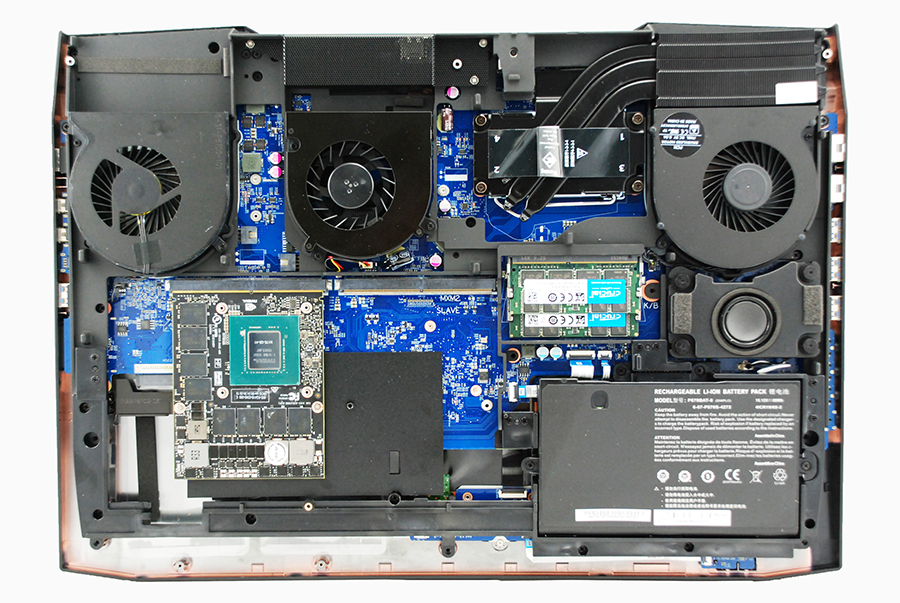

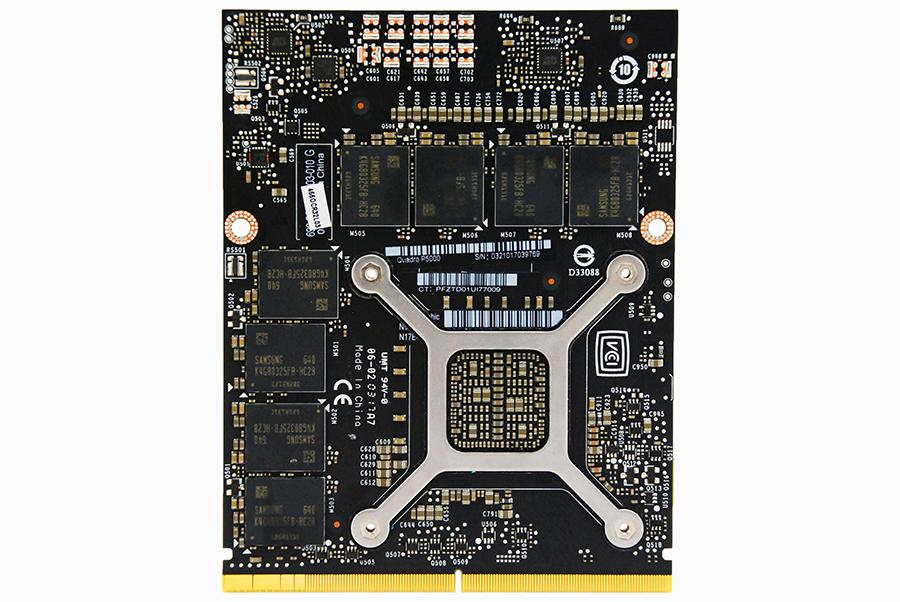

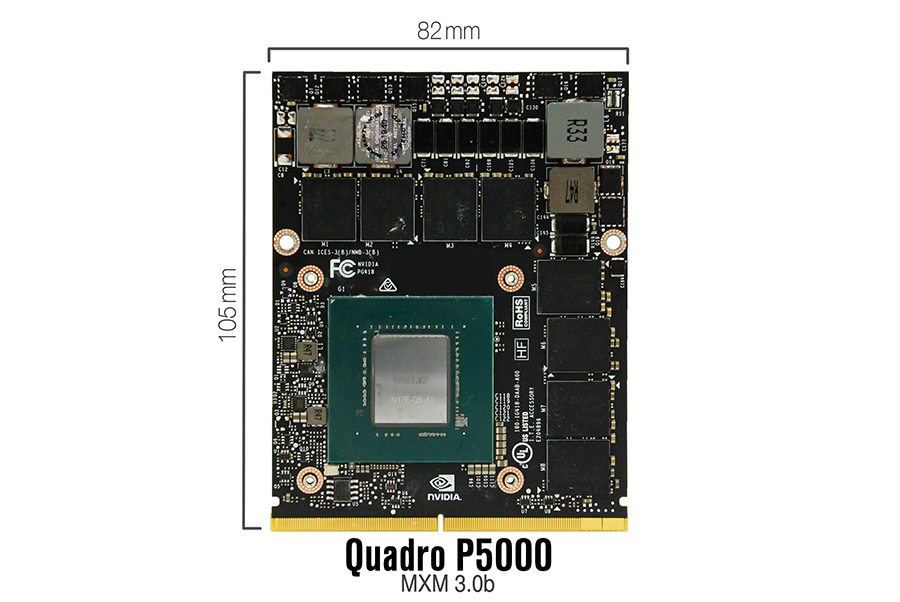

Here are some pics of Quadro P5000 installed in P870DM model. P5000 card is standard 82x105mm MXM3 spec so it fits inside P870DM without any VGA heatsink modifications, just need to re-adjust thermal pads to match the layout of the card.



Please drop me a mail buddy! Luckily I saw this as I don't really come here that often these days...

Get us some MXM-B heatsinks for DM2/3/KM1/TM1 models please!



Yes, What @Prema said!



That would be totally new heatsink fabrication which I don't believe any resellers have access to.



Whats its the difference between new mxm3 82x105mm versus the old msi 1070 in performance?



Performance is more or less the same, just physical dimensions are different. Tested with few different VBIOSes.



Smaller cards will have more cramped components/fewer power phases, they will be somewhat harder to cool and clock. It depends how well the PCB has been routed and the quality of parts used.



we need with sli connector...



Guys all, hello, who put on the p870dm video card quadro m1000m? The video card from the vendor HP is not recognized. Tell me where to find the bios for this video card



Try asking prema or eurocom.

What was the error message /situation encountered when you use M1000M in P870DM1?



I saw that they live here)). The screen does not light up, fans spin 100%. The laptop does not see the video card, there are several bios on TechPowerUp from hp, dell, nvidia, what to sew? I will sew as a programmer



Download last M1000M driver from nvidia, edit inf file with notepad. Install Manually.


I user M4000M by this way



I wonder how I will edit the driver? If the laptop does not see the video card and turns off. I need a bios first on the eurocom website that my laptop supports this card.



Yeah, laptop turning itself off sounds like bios/vbios problem.

No driver installed should still boot and display desktop fine (with inbuilt Windoze compatibility driver)



We have Quadro specific BIOS in our Sky X9W that only supports Quadro cards.

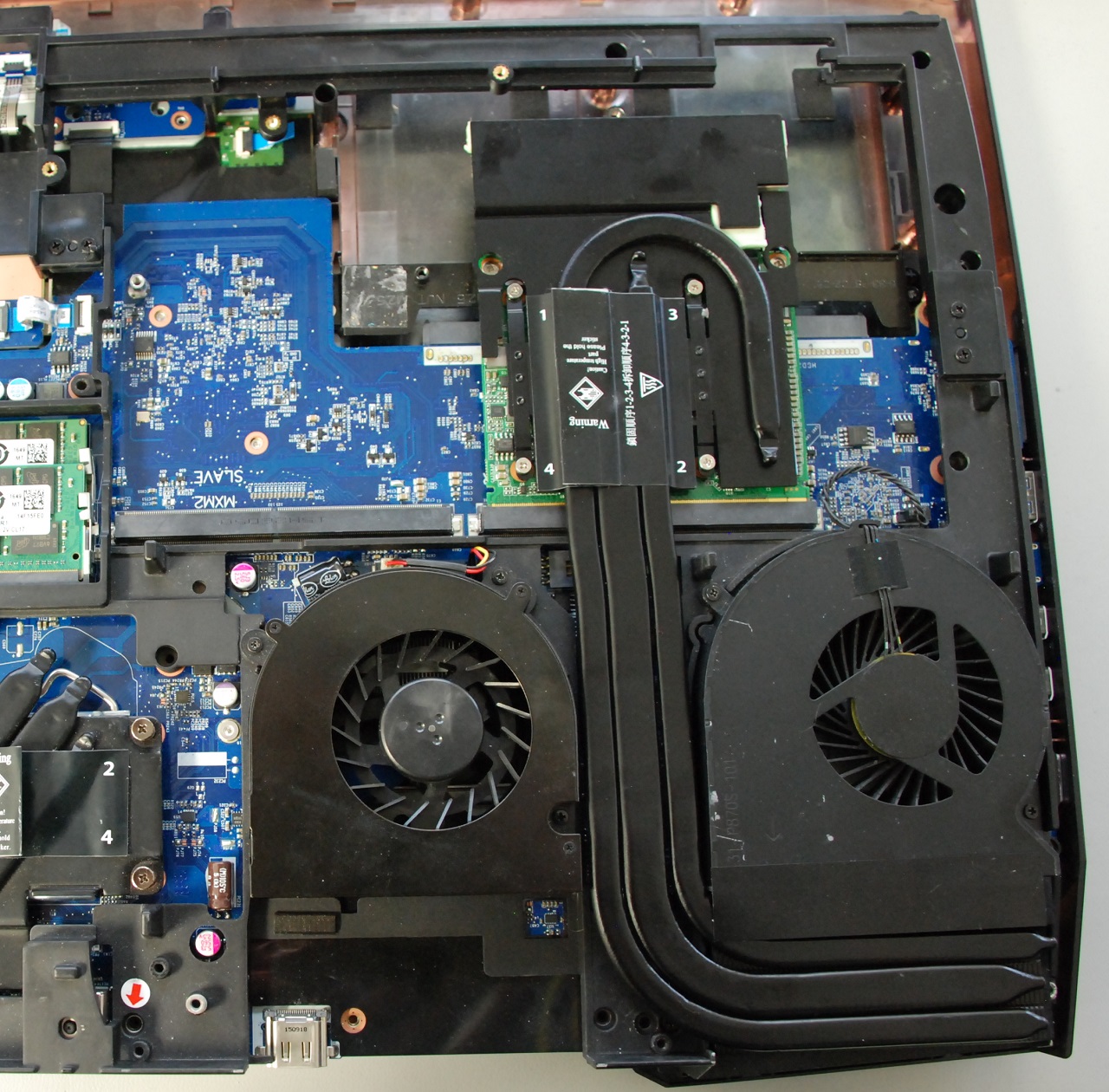

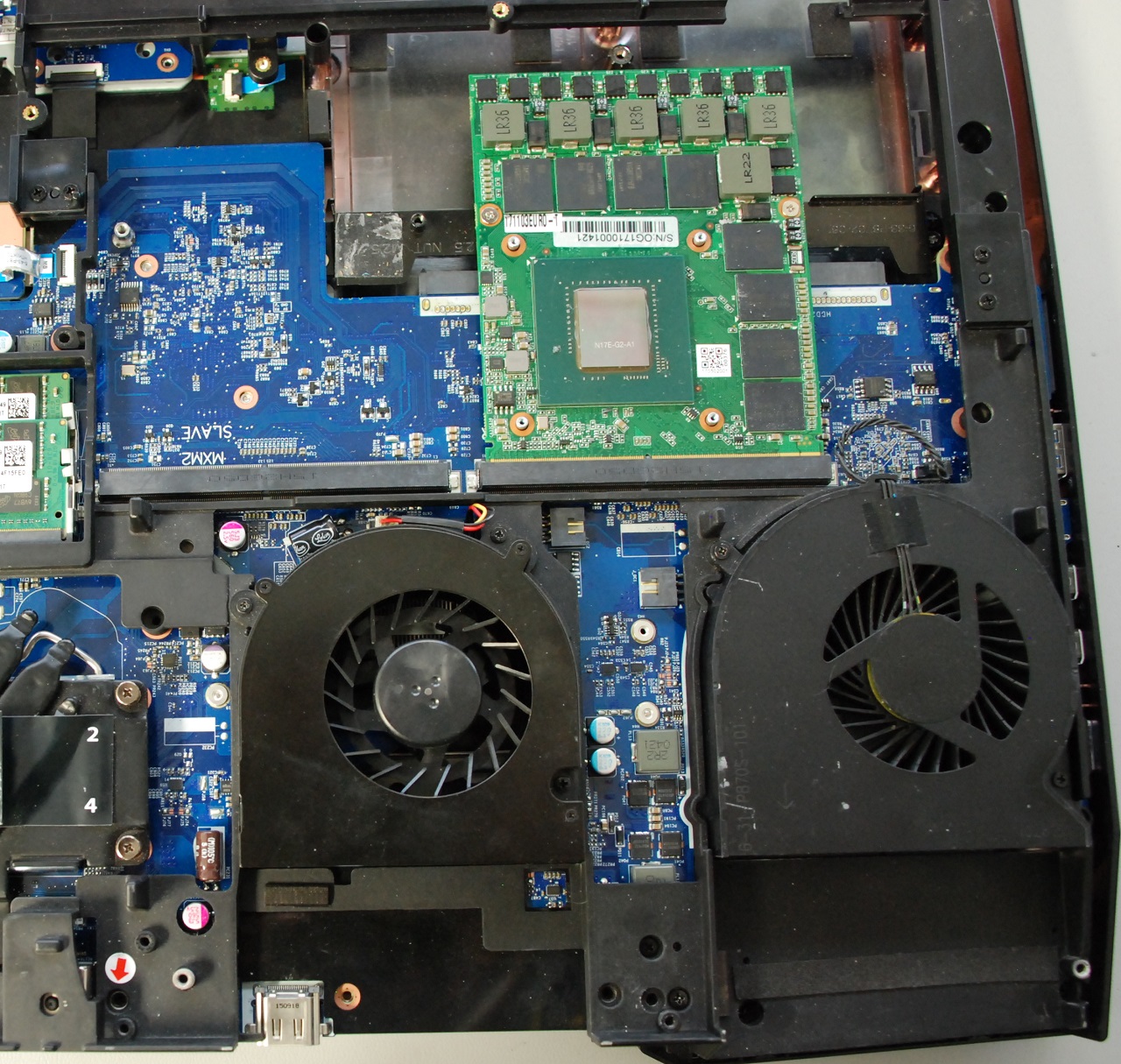

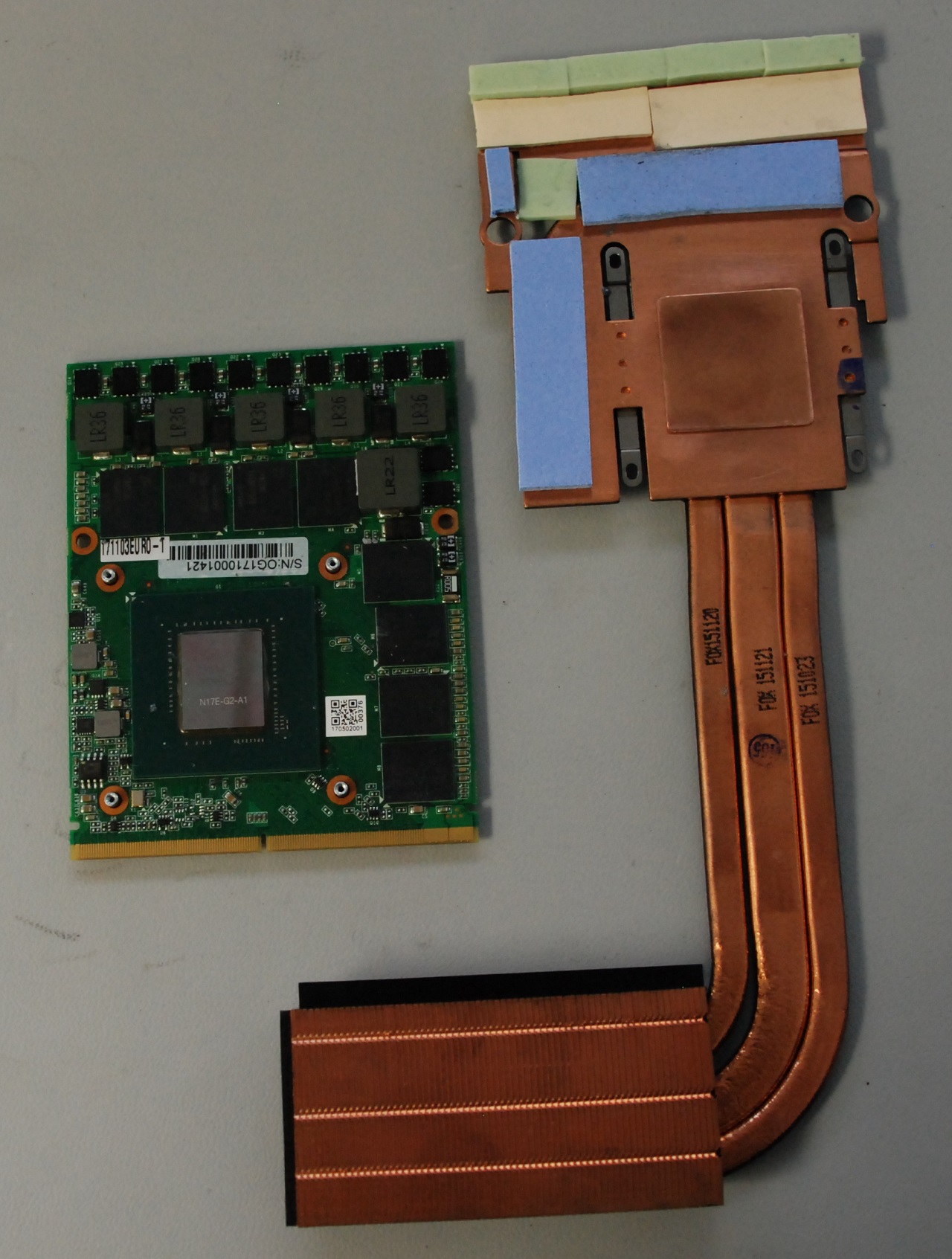

Just finalized testing of standard size 82x105mm MXM3 GTX 1070 card in P870DM. See some pics below. No need to modify VGA heatsink, just thermal pads layout needs to be changes and copper shim added.



how much my friend?



[QUOTE = "Поддержка Eurocom, сообщение: 10631905, участник: 681497"] У нас есть Quadro конкретная BIOS в нашем Sky X9W, которая поддерживает только карты Quadro. [/ QUOTE]
where to get this BIOS? on your site indicated that my laptop supports this



I made those special Quadro BIOS for Eurocom.
They are only for those who are purchasing the actual hardware from them and can, as per our agreement, not be obtained outside the hardware sale.



how can i get Prema Bios for my Sager NP9870-G



can I buy a BIOS from you? I need a BIOS on m1000m and m4000m



The point might have been that those are made for people who have the cards bought from Eurocom. Did you buy from them? Also, are you a reseller?



@Mr. Fox you Upgrade the CPU of your "machete", how I can do?

Thanks



I still have to mod the MXM slot wiring to make a Clevo 1080 bootable. I have the 1080 GPU from @tanzmeister, but need to find time to pull the motherboard and do the soldering. I haven't had time. But, I will do it soon.

To run 7700K you will need a @Prema BIOS mod. 7700K is not bootable with a stock P870DM-G BIOS. That is still a work in process. It is not ready for public use. A few things need to be fixed and Prema has not had time to focus on that right now.



I'll be very interested in a price on these when you are ready to sell!



I have stock P870DM-G from Sager with GTX980,
I just bought a card from Ebay Quadro M4000M.
When i check bios it doesn't show "M4000M", i have display. I couldn't install the driver first,
Then i just edit it.
For more than a year i use M4000M and i'm very happy with it.



No point really when coffee lake is rearing its head.



The BIOS wont as it's not one of the standard cards and the BIOS just checks it against a list it has built in.



I'm just glad the MSI 1070 works out of the box...mostly



@thegh0sts, I looked at your YouTube channel with gaming vids. Will you advise this laptop today for gaming, or look towards new models? (with 6C/12T)



Personally: I would hold out for the P870TM model.



6 cores is nice but not a requirement. No need to really hold off anymore though as they are available.



Depends on your budget.

Fully loaded DM are cheap, 980dt and 980m sli still do 1080p 60z easily

From my observations the 2 extra cpu cores don't add much to gaming until you get to 1080ti levels of power. 4.5ghz+ 6700K is still powerful and will be for some time, also may be helped by dx12's more efficient use of cpu to reduce the pace of obsolescence (relative to history)

There's a hell of a lot of quad core owners still out there and it's not like devs are going to let performance on the most common hardware spec go to the dogs overnight.



A single 1080 is a pretty big step up though for any higher res/refresh rate.



@ thegh0sts can P870DM-G upgrade screen resolution to 2560x1440?



Only 4K.

Sent from my SM-N910G using Tapatalk
