I ordered the samsung drive, we'll see in a few days.

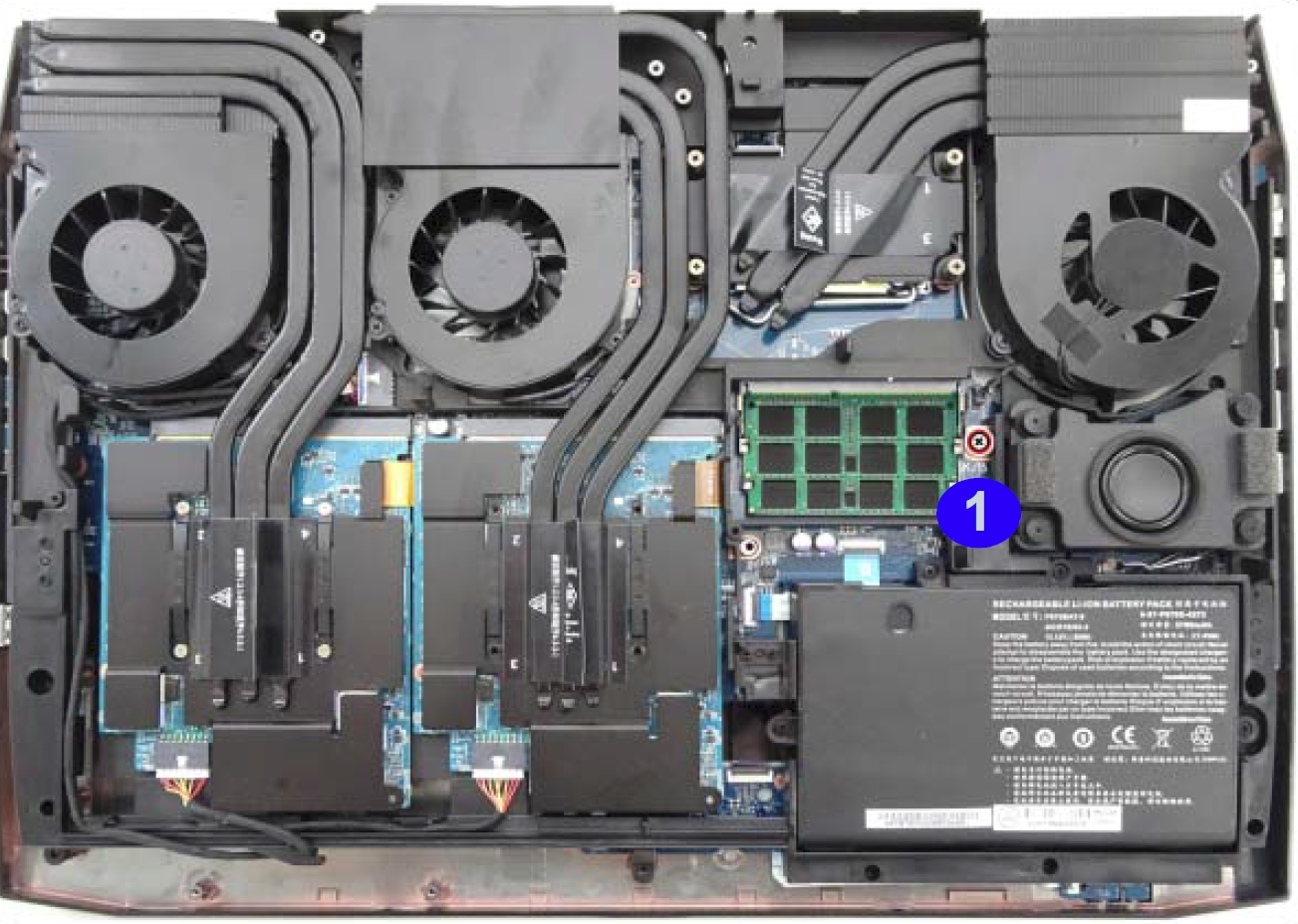

Here is an overlay from the respective service manuals :



Individual :

Spoiler: Images

This has already been covered before, you guys might want to touch base with Clevo maybe. Or maybe let us know what the difference(s) is/are?

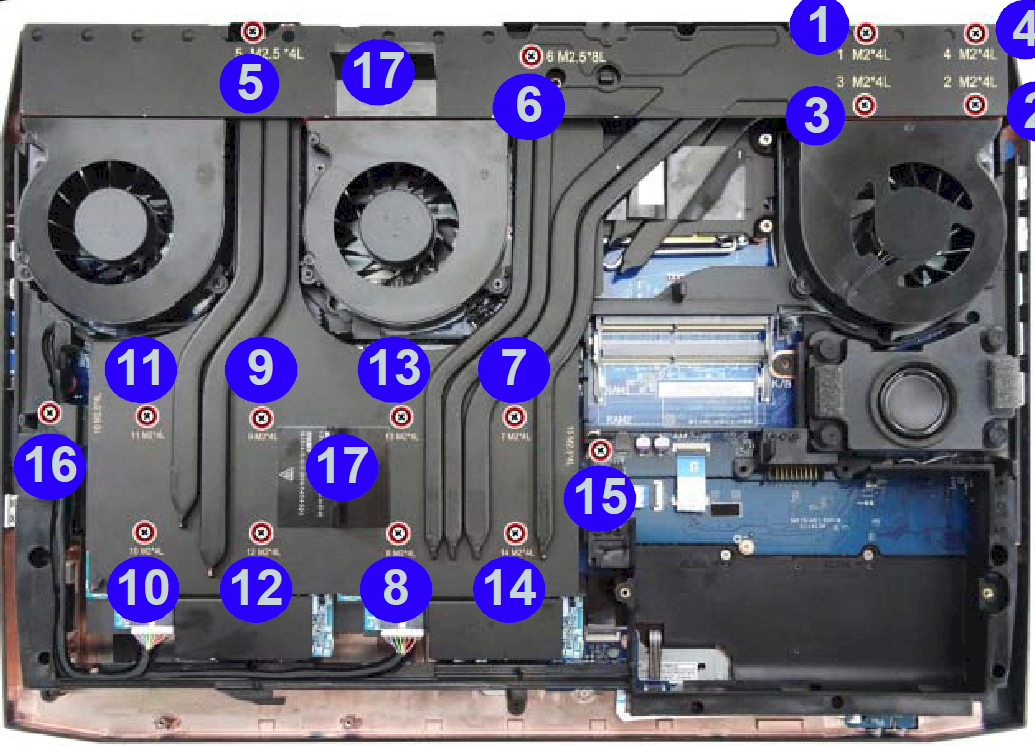

Number 15/16 doesnt exist by p870dm2g

CEG-Hardcorecustom 》Fastest Gaming Clevo Notebooks & High-End Mobile Workstations 《



Im sure you can post a few pictures to prove otherwise? 15/16 dont exist only on the DM1.



Number 15/16 is without screws threads. We check this tomorrow.

CEG-Hardcorecustom 》Fastest Gaming Clevo Notebooks & High-End Mobile Workstations 《



I can tell you this..... I have not had mine for that long and it's already at 97% wear. I just put in a second one last week and that one is currently at 100%



I set mine to Fleck Charger to start charge at 80% and stop at 90%



This helps with SSD wear level? Enlighten me on what the heck im missing!



SSD Flash wear, not battery wear



Thanks to the Bro Mr. Fox.

I have my Notepal Fan Mod almost finished.
Last night I connected the large 140 mm fans of Noctua both to the Sony USB adapter, which via USB from 5V to 12 V switches.
http://www.ebay.de/itm/150898721583?_trksid=p2060353.m2749.l2649&ssPageName=STRK:MEBIDX:IT

Now I'm still waiting for the power supply for
https://www.amazon.de/gp/product/B00NQ55Y8Y/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

Power supply:
https://www.amazon.de/gp/product/B002V9S46K/ref=oh_aui_detailpage_o02_s00?ie=UTF8&psc=1

Then I will also be able to regulate the fans and current they are also supplied differently than via the USB port.
The draft is now noticeable after the changeover from 5V to 12V.
The remaining three fans from the original Notepal I will also still change and also the metal plate cut out.

After the conversion to 12V, the temperatures during the game of Fallout 4 remain at a maximum of 61 degrees C of CPU / GPU at a room temperature of 25 degrees C.
And the fan noise of the Noctua is hard to hear though it is over 45 dBA.



@Mr. Fox @jointhegame @lctalley0109

Can one of you please get a measurement of the thickness (1.5mm?) of the metal sheet used for the Notepal U3 Plus? I was thinking about making my own custom stand, I currently have this one and like the adjustable height for the back, but I don't think it blows all that much air. I would like to make something like a cross between the Notepal U3 Plus & the one I have, with higher quality fans of course...



sorry man, brain fart



Sorry I don't really have a way to measure it that well. But it looks to be about 0.1cm thick.



I do not have an exact tool for measuring the thickness.
No laser or slider. Only a 2m measuring tape.
But with my 2m measuring tape I would say it is about 1.7-1.8mm thick.
Perhaps the others have such tools.

The metal from Notepal is really good.
It can be formed. It also carries a lot of weight.
The load distribution is good. However, I now have rubber feet under the Notepal. Because the three original front fans would otherwise be placed directly on the ground. The three original fans get the Sony 12 V Power and the Noctua get their own power supply.
Then all fans run below 12V.



Hi all, a bit of a dumb question, but I'm tearing my hair out trying to figure out what's wrong. I'm trying to boot from usb3 stick with freedos. I created it with rufus and it shows up in the bios however when I select it the boot override menu it doesn't boot. I've also tried changing the main boot order and turning off safe boot to no effect. This has worked in the past on my previous P870DM, anyone have any ideas?

Sent from my Nexus 6P using Tapatalk



Turn off UEFI.



That did the trick, thanks!

Sent from my Nexus 6P using Tapatalk



Thanks for measuring! It's hard to tell from pictures, and I couldn't find that dimension anywhere on the web. I had found some others that used 2mm thick plate though, just wanted to see if this was drastically thicker or around the same.

A website I order raw material from has a 12x18" metal plate (6061 aluminum) 0.08" (~2mm) thick I'm probably going to use... Will likely be a while before I get around to completing it, have too much other stuff going on as we all tend to do, haha, but I'll post back some pictures when I get it done!



My caliper says around 1.8mm.



P870DM3 is now appropriately Star Wars-ified...

http://imgur.com/a/2xToP



I don't have a caliper, but looking at the edge of it with a metric rule I was going to estimate 1.5mm by eyeball, so 1.8mm measured with a caliper seems right on to me. It has to be right since you used the best tool for the job.



It's more important to get the support for the top of the stand right when it's in place, notebooks distribute their weight pretty evenly which helps a lot.



Moved to a dual Heatsync!!



Before and after temps playing BF1. Both using the same amount GC Extreme. This was just running at stock CPU/GPU



Love this beast, everything runs great except Battlefield 1. Can't finish a map/match w/out crashing to desktop or a hard lock up. All other games/apps run perfectly fine and haven't had a single hiccup. Been monitoring temps while gaming and max temps were GPU 68C and CPU 92C. CCC was set to Gaming/Auto for fans. SW Battlefield w/ the same temps ran for hours w/ no issue.

Been uninstalling random software, changing video settings in-game and through Nvidia driver (graphics level, dx11, dx12, vsync/fastsync/on/off, multi vs compat vs single monitor mode, 4 different Geforce drivers, turning off AV/Firewall, custom *.cfg file settings, borderless vs windowed mode) and at least a half dozen other things recommended on Reddit and the BF forums.

For kicks, I ran my fans full speed and monitored temps... unbelievably, for some reason, if my CPU temps are below 80C, BF1 runs fine, map after map, operation after operation... where before I couldn't even get through a single map w/out some sort of crash. If my CPU temps hit 90C+... crash.

Any explanation? I"m at a loss why just BF1 seems *sensitive* to CPU temps while nothing else is.

Guess I'll delid/CLU/relid/paste this weekend.

Edit: What's the easiest way to undervolt (since I'm not overclocked right now) and try to lower CPU temps?



If you have not overclocked you could set your CPU vcore to -100 to -170 using adaptive. I use -110 and it brings the CPU temps down quite a bit. Just have to find what reduction in vcore is stable for you. Delid and CLU was 10 degrees difference for me in BF1. I have been setting the fans to overclock mode when I play.



Automatic mode doesn't work well for me either @trey22. The fans just don't run fast enough and the temps slowly rise till they max out.



Congrats, and great temps!

I do same as @lctalley0109 had stated, always play BF1 with overclock fan profile & no problem playing for 4+ hours!



I will PM you to help you out since you're an EVOC Team Member



I emailed a system report to Tamas at Finalwire and they have a new AIDA64 beta out now with better support for the P870DM2/3. You can download it here: https://www.aida64.com/downloads/latesta64xebeta

I have to give props to them for being so responsive. Awesome company. While working with @Prema on the Sky X9 BIOS mods I heard from Tamas frequently. It's nice to see a company so on top of things in an era where it seems mediocrity and lack of quality control is so rampant.



I bought a license for my PC and phone just to support them. at the time when I had my HTC 10, I wanted to know which screen did it have (by which manufacturer I mean) so I emailed them and they added support for that phone within an hour!



I had lockups too until I change the video vram usage to not be capped.

Sent from my LG-H918 using Tapatalk



Anyone having trouble installing the latest nvidia drivers? ( 376.09\Win10_64 ) It says it won't recognise any compatible hardware and the java scanner applet says "The manufacturer of this system requires that you download the driver for your GPU from their support site." The former version had no such issues and still works.



Seems to me, my gpu's dev ids for the 1080 (
PCI\VEN_10DE&DEV_1BE0&SUBSYS_08731558&REV_A1
) have just been removed from the latest driver.



Not just the 1080, the 1060 and 1070 are also missing



I am not sure that all NVidia drivers will support the laptop GPU. I can't recall which other driver did not work for me but not all of them are supported.



Well they are the laptop drivers that we downloaded, and in the Nvidia forum their tech guy is asking for people to let them know the device id's that they have missed out again



Ohh ok



http://forum.notebookreview.com/thr...09-findings-fixes.798716/page-5#post-10398330



Quick thoughts on the machine. The 1440p is absolutely stunning to me. I can't see any lines, refresh issues or artifacts. Smooth as silk at 120hz. It's the perfect resolution to screen size for a 17" laptop IMO. Viewing angles are very good, not excellent but very good. IPS has it beat in that arena (just by a hair).
25618 out of the box 3dmark11 scores. I did opt for delid via HID. They sent it clocked at 4.4ghz. Indobgeg throttlibg down to 3.5 when 3dmark11 runs.
After an hour of Battlefield 1, everything is left at stock fan profiles etc. haven't touched the CCC. Actually it's running in the task bar but willl not open to make changes for some reason. However at default after an hour of BF1 the CPU hovers around 70-71 and gpu1 67'ish and gpu2 65'ish during game play.
So hopefully after some @Prema magic, some voltage tweaks the temps will come down some and see the end of throttling as well.



Glad to hear you like it! I'm definitely enjoying mine as well!!

Not sure if you tried or not... But CCC in the task tray takes a double-left-click for me to open, then shows a tranparent "spinner" mid-screen, then pops open. Maybe that's the issue?



Great to hear you're loving it brother. I agree, the screen is beautiful. It gets it right. The throttling issue we'll soon be able to nip in the bud



Dear All bor, just finish my long vacation, seem I am missing many thing here.

I updated my ram to G SKILL DDR4 3000, seem is smooth than 16G 2400. Love it.



@Rage Set Sorry to hear that, hope your father wiil recovery faster



@lctalley0109 where you get the dual Heatsink?



Please read before and after this post about G. Skill 3000MHz http://forum.notebookreview.com/threads/clevo-overclockers-lounge.788975/page-693#post-10399403



The difference in results will be interesting to see on that. The chamber will give better gpu thermals.



The difference was 8 to 10c on the GPU.



I bought it from sager.



That was 10C in Battlefield 1. Here is a before and after comparison in Aida64 for just 5 minutes. This was in automatic fan mode with a -120mV CPU voltage offset.
