    *** Official Clevo PB7xEx-G Owner's Lounge***

    Discussion in 'Sager/Clevo Reviews & Owners' Lounges' started by sicily428, Jan 7, 2019.

  1. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    Yeah I have no idea how to determine compatibility and fit without just buying one and testing it.

    Ashlander, Dec 20, 2019
    #701
  2. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Panel thickness is your biggest guide.

    Meaker@Sager, Dec 21, 2019
    #702
  3. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    does anyone here have any issues on running the Clevo Control Center on their unit? ever since the update on windows 10 on the 2nd half of the year i cant seem to successfully run the CCC. even when using the fn+esc key, the cursor just loads but the CCC wont run. im running the latest version (1.14) of the CCC on windows 10 version 1909 with OS build of 18363.535.

    can anyone help me? or are there any alternative for me to control the lightings on the keyboard like how i usually control or customize it with the CCC app?

    any response is well appreciated. thank you!

    SlashNLennon, Dec 30, 2019
    #703
  4. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    Try opening the keyboard app itself. Just click start and search for LED Keyboard Setting.

    Ashlander, Dec 30, 2019
    #704
  5. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    same thing sir. the cursor just loads but the app didn't start. :( also tried fresh reinstall of the CCC

    SlashNLennon, Dec 30, 2019
    #705
  6. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    nvm. i just figured out that when i close the msi afterburner i was able to run the CCC again which is pretty weird. gonna figure out a way for them to be able to run on startup without messing CCC.

    SlashNLennon, Jan 1, 2020
    #706
  7. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Sounds like a sensor level conflict, both trying to grab the same data.

    Meaker@Sager, Jan 2, 2020
    #707
  8. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    sounds like sensor issue since both have the capability to control GPU voltage and clockspeeds. its just weird because this does not occur before. :/

    SlashNLennon, Jan 3, 2020
    #708
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    You might just be hitting the race condition they have developed just right, that's why its never recommended to run two control programs in parallel if possible.

    Meaker@Sager, Jan 5, 2020
    #709
  10. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    Btw did anyone notice the high temp of PCH in your unit? Mine keeps ramping up at 80 to 90 degrees. Is this normal? When i repasted my laptop i noticed that the PCH chip is just exposed and is not covered by any heatsink.

    SlashNLennon, Jan 17, 2020
    #710
  11. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    Mine currently has a max of 90, and average of 72. But I haven't been monitoring that specifically so I don't know how it's actually been behaving under load.

    Ashlander, Jan 17, 2020
    #711
  12. aznxwill

    aznxwill Notebook Consultant

    Reputations:
    56
    Messages:
    151
    Likes Received:
    93
    Trophy Points:
    41
    I've seen a max of 104 C when playing Anthem for 1+ hours. It didn't bother me too much - just kept playing... The temp seems to go down by about 5 C if i prop it up.

    aznxwill, Jan 18, 2020
    #712
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Case airflow will drop it quite a bit yes.

    Meaker@Sager, Jan 18, 2020
    #713
  14. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    I didnt also know such a thing exists! Hahaha. Im just monitoring cpu and gpu temps. The one that repasted my unit just noticed it and said that i should also monitor pch temps.

    Btw sir. Have you tried overclocking your gpu??

    SlashNLennon, Jan 19, 2020
    #714
  15. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    W
    So does it mean that even if your pch reaches 104 at long term gaming this wouldnt pose a negative effect or cause a concern for our laptop?

    SlashNLennon, Jan 19, 2020
    #715
  16. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    Ive noticed that passive cooling is our only solution to this since the pch is not covered by any heatsink.

    SlashNLennon, Jan 19, 2020
    #716
  17. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    I'm using Afterburner to overclock. For some reason I'm unable to adjust the voltage or anything other than GPU and VRAM clock speed though.

    Ashlander, Jan 19, 2020
    #717
  18. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    Cant you adjust it using the custom fan curve? Whats your most stable settings at the overclock department? How high is the fps increment and temps increment due to the oc?

    SlashNLennon, Jan 19, 2020
    #718
  19. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    GPU +165 and VRAM +350 has been fairly stable for me. I've only checked the fps difference in Star Citizen and it was generally about 7-8, but that game fluctuates so much it's hard to tell. I haven't noticed any temp difference.

    Ashlander, Jan 19, 2020
    #719
    SlashNLennon likes this.
  20. SlashNLennon

    SlashNLennon Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    2
    Trophy Points:
    16
    Whoah. This is quite nice. Will try this when i get home. So is this overclock being constantly applied to your unit at all times?

    SlashNLennon, Jan 19, 2020
    #720
  21. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Airflow works over a bare die just fine.

    Meaker@Sager, Jan 20, 2020
    #721
  22. aznxwill

    aznxwill Notebook Consultant

    Reputations:
    56
    Messages:
    151
    Likes Received:
    93
    Trophy Points:
    41
    I don't see any ill effects yet at this temp. I just learn to ignore it for now since PCH can tolerate high temperatures.

    aznxwill, Jan 20, 2020
    #722
    SlashNLennon likes this.
  23. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    @Meaker@Sager Should we have access to voltage, fan speed, etc in afterburner? Everything but clock speeds is greyed out for me. I just did a Windows reinstall recently but don't recall if it was the same before, or if I have some sort of driver issue. The Clevo fan app controls the fan perfectly fine, so I dunno why Afterburner is having problems.

    Ashlander, Jan 20, 2020
    #723
  24. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    That’s normal for mobile GPUs.

    yrekabakery, Jan 20, 2020
    #724
  25. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Yes as it's the ECU on the laptop that controls these, not the gpu.

    Meaker@Sager, Jan 21, 2020
    #725
  26. radio_silence

    radio_silence Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    1
    Trophy Points:
    6
    FWIW on the 15" version PB51RF-G I squeezed two spare 1.5mm pads I had lying around between the PCH and the heatpipe above it after removing some of the black insulating sticker.

    With the pads against the heatpipe, my PCH idle temp is usually around 55°c, but when the GPU is under load, the temp can climb up to max around 85°c.

    It may not be possible on the 17" version though.

    radio_silence, Jan 23, 2020
    #726
  27. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    You'll get heat transmission as above.

    Meaker@Sager, Jan 23, 2020
    #727
  28. scooptroop

    scooptroop Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    Anyone have any throttlestop and afterburner settings they'd be able to share for their PB71?

    scooptroop, Jan 30, 2020
    #728
  29. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    For TS I have -250mv to core and -135 cache. This runs pretty good for me, no BSOD. Only exception is Phantom Doctrine which frequently and randomly CTDs with these settings, so I also have a profile of -140mv to both, that the game runs fine with. I also have my Speed Shift setting enabled and set to 98, which seems to be a good balance between heat and performance.

    These are basically my two TS profiles;
    -140 Core
    -140 Cache
    Speed Shift at 98

    -250 Core
    -135 Cache
    Speed Shift 108

    The heat is basically the same between both undervolts, I mostly just swap between them to switch speed shifts if the CPU is running hot now.

    My afterburner settings are +165 core clock, and +350 memory. No crashes. Could start with these adjust higher/lower as your system needs.

    Ashlander, Jan 30, 2020
    #729
  30. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Could you provide a photo of that? Mine gets quite hot also Id like to take care of it.

    iionas, Jan 30, 2020
    #730
  31. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    On laptopchips voltage is locked from what I know, I havent seen any unlocked yet and officially working - would be nice to get temp target although on tripple a games i never see above 62. If anything Id like more TDP

    Do you get any errors on TS bench? i think we are governed by bios here (the values take to what the bios is)

    Im on a 9750H version and im stuck on .100 anything else i get errors. This is prob the limit of my chip Im guessing.

    iionas, Jan 30, 2020
    #731
  32. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Quick question to all you guys with more knowledge - i have 32gb of 2400mhz ram, is this overclockable?

    Could anyone help me out here? I have no idea about overclocking ram.

    I have a PB71RF0-G - (9750H/2070 nonq)

    iionas, Jan 30, 2020
    #732
  33. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    iionas, Jan 30, 2020
    #733
  34. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Overclocking ram is usually the last thing you do due to the smaller performance gains. You could try raising the speed up (might have options in the bios or via intel xtu) one step to 2666mhz to see if it will run at the higher speed.

    Meaker@Sager, Jan 31, 2020
    #734
  35. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    I wanted to score bit higher in firestrike thats all, i think ive reached the limit with it, ill try today. lets see what it does! I dont want to throw it into a bootloop. XTU does this also? didnt know.

    iionas, Jan 31, 2020
    #735
  36. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Depends if its unlocked or not but yes XTU can. If it struggles to boot use a single stick.

    Meaker@Sager, Jan 31, 2020
    #736
  37. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Alright thanks I'll give it a whirl

    Sent from my Phone using Tapatalk

    iionas, Jan 31, 2020
    #737
  38. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Just take it steady and me methodical.

    Meaker@Sager, Jan 31, 2020
    #738
  39. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Unfortunately I've never overclocked ram!

    Sent from my Phone using Tapatalk

    iionas, Jan 31, 2020
    #739
  40. radio_silence

    radio_silence Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    1
    Trophy Points:
    6
    Sure. The pads I used are adhesive:
    PB51RF-G heatsink.jpg

    I stacked two, with the bottom one covering a little more than the die so it reaches completely under the heatpipe, giving the top one more contact with the heatsink. From pics I see of the 17" model, the heatpipe is a little further away, maybe you need to add a heat spreader?

    One easy one if you haven't done so already may be to increase the default PL1 Power Limit from 55W, on mine the VRM seems happy delivering ~80W continuously. But the thermals suffer pretty bad on the 15".

    radio_silence, Feb 1, 2020
    #740
  41. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    You should avoid using adhesive pads as they can take chips with it.

    Meaker@Sager, Feb 1, 2020
    #741
    radio_silence likes this.
  42. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16

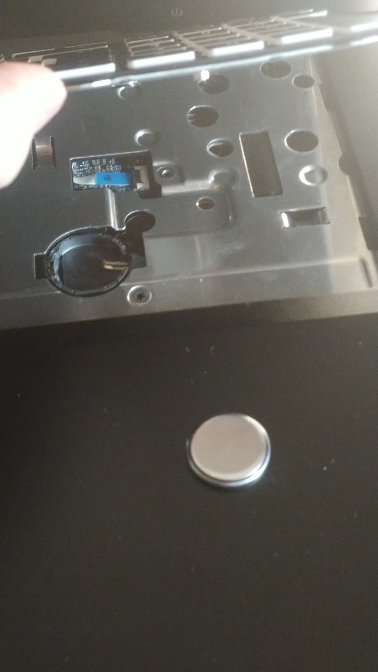

    Quick question. What's he procedure for a cmos reset? Also which way does the bios battery go [​IMG]

    Sent from my Phone using Tapatalk

    iionas, Feb 1, 2020
    #742
  43. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Long story short - ram overclocking didn't work and I'm in a bootloop

    Sent from my Phone using Tapatalk

    iionas, Feb 1, 2020
    #743
  44. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Fn+d for a bios reset and cap (+) side up.

    Meaker@Sager, Feb 1, 2020
    #744
  45. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Thanks dude ill report back

    Sent from my Phone using Tapatalk

    iionas, Feb 1, 2020
    #745
  46. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Your battery holder looks chipped, make sure it is making contact.

    Meaker@Sager, Feb 1, 2020
    #746
    iionas likes this.
  47. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Alright so back to working again man. Its fine it was the cmos. Back to normal. Huge thanks for the help my reseller is unavailable to talk on weekends you saved me a huge hassle for tomorrow - I have to work and needed to get it back up and running. You're a champion I owe you a beer

    Sent from my Phone using Tapatalk

    iionas, Feb 1, 2020
    #747
  48. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Good to hear you are back up and running and you are welcome.

    Meaker@Sager, Feb 1, 2020
    #748
  49. iionas

    iionas Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    What are you guys setting your charge levels to in bios? I've been suggested 80 max as mine is a desktop replacement

    Sent from my Phone using Tapatalk

    iionas, Feb 1, 2020
    #749
  50. Ashlander

    Ashlander Notebook Evangelist

    Reputations:
    14
    Messages:
    323
    Likes Received:
    134
    Trophy Points:
    56
    How are you doing that? I tried setting mine to 75w but have never been able to get it to actually stick. HWinfo still reports the default 55/90.

    What's difference between this and just removing the cmos battery?

    Ashlander, Feb 1, 2020
    #750
← Previous pageNext page →
