*** Official Clevo x7200 and Sager NP7280 owners lounge ***

Hi,

I have a lot of experience with server RAID performance, some points for you to consider:

* RAID initialisation typically affects benchmarks heavily - perhaps by as much as 30-50%. We always wait for initialisation to complete before benchmarking.

* We always benchmark all the stripe sizes to find the best performance. Some raid controllers perform better with 64k, others with 128k. One controller with 4GB BBU Ram performed best with 512k stripes. Bottom line is benchmark all configs before settling on your live config.

* For VM/VHD usage, we have found using 64k NTFS in both the parent and VHD file systems is more performant. YMMV.

HTH.



Yea, I understand waiting for after initilize. And the controller is the one in the lappy here, ICH10 I believe. I am 64K right now, and think will stay that way, I just dont have the hours will take to do 64k, initilize, test then do all over again at 128k



Has anyone with crossfire 6970m tried the Hotfix 11.5b?
It did install everything without problems, but you can´t use crossfire after update... There are still 2 cards shown in device manager, but the Catalyst Control Center doesn´t have an option to configure crossfire and benchmarks show that ony 1 card is working...
So I tested some and it seems to be the screen driver, not the new CCC. Everything works fine until I install new "8.85.6" driver... couldn´t find any information on this from other sources...

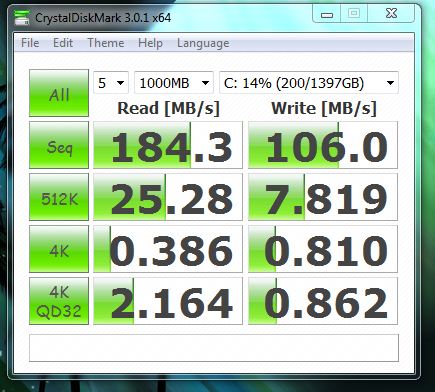

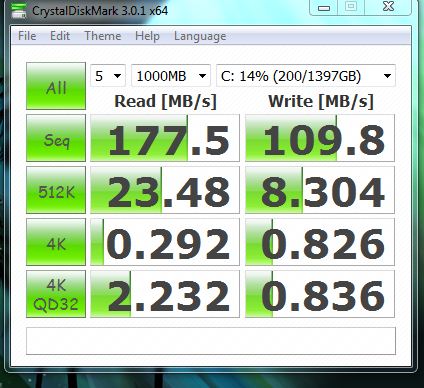

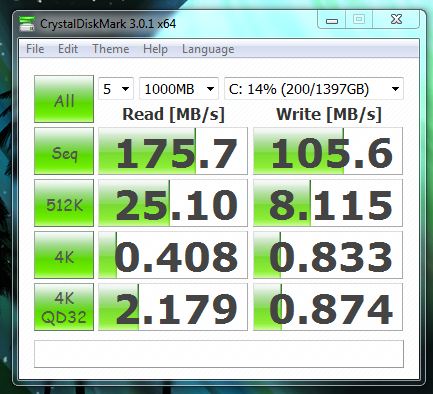

OK, I dont get this, the raid5 array finished initializing, so I decided to lket the comp rest a few hrs to settle, then I ran the SAMR benchmarks...

Look th the numbers:

Its like I lost about 10MB/s on the benchmarks. The stripe is 64kb.

Anyone have any ideas why that would be ? I am thinking of trying a 128kb stripe.



Hi!!!

I'm new and I am writing from Italy!
Want to buy a Clevo X7200 - (Sager 7280) with this configuration ..

17.3 "1920 x 1080 Full HD
Intel Core i7 Processor Extreme-990X
IC Diamond Thermal Compound - CPU + GPU
12GB Triple Channel DDR3 SDRAM at 1333MHz
2x GTX 485M SLI + 2nd AC Power Adapter with Converter Box
HDD1 Intel 250GB 510 SERIES
HDD2 ntel 250GB 510 SERIES
HDD3 Intel 250GB 510 SERIES
RAID 0
Blu-Ray 6X
Windows 7 Ultimate Edition 64-bit
Bigfoot Networks Killer Wireless-N 1102
etc etc..

Configuration is as powerful gaming is to play???
The notebook I would buy this "mostly" to play ...
With this configuration I can easily play games like Crysis - Crysis 2 - GTA4 - Resident Evil 5 - Black Ops - Bulletstorm - whit 1920x1080 und Quality Ultra??

Have any of you my own configuration?
Greetings from Italy !!!!!!!!!!



^^^^ Customers are telling us that have a very similar configuration that is a "beast of a beast" as to performance! You should be VERY happy...
_



wondering clevo will add sas port and 12v in x7200 successor......

however it will blast m18x for sure



how soon will you expect the refresh?



hard to tell based on that picture...but that don't look like a 1366 socket



lga2011.........have to see the hdd cable looks like
then this is x7200 mobo lga1366 though



10% decrease from which baseline? Didn't you just change out the drives? Was the original bench from the other set of Scorpies?



Go ahead and ignore this I found a setting I had on earlier and forgot about....



Got a better picture of the lga2011 board?



Clevo x7200

+900 yields Clevo x8100

So what do we have now?
+900?? The first glance of a Clevo x9000?



But the x7200 is a 17" and the x8100 is a 18"....

more likely we will see x7300 and x8200



Wow! I missed that one. I never put the 7 in 7200 to 17" (and 8 in 8100 to 18").

Regardless, those may be too close. I like something in the 9K to 10K range. In any case, it's all B.S. right now, as it is really up to Clevo. In the end, I guess it will depend if there is enough difference b/w features of their existing systems.



p270wm



New nvidia driver:

NVIDIA DRIVERS 275.33 WHQL



Yes. There has also been a couple of other driver updates in the last couple of week or so. Easiest way to make sure you're up to date is to bookmark the driver sig and periodically check for updates.



Maybe I am a little slow but I saw nothing that looks like a traditional hard drive connector on that motherboard, most likely will use a ribbon like the stacked HDDs to I assume?



hello firends, i have question....my 6970M crossFire seems wierd, when i am bechmarking smt like Crysis, well one GPU clock is 680MHZ but another one is still stays at 100mhz? any problem ? the temps are good, its up tp 65 not more. what is wrong?



Is Crossfire on and working? Sounds like it aint



If it's running at the low clock, it sounds like your crossfire is not turned on. Also make sure you have the newest Catalyst drivers as well when you enable it. If you still have issues after enabling crossfire (or can't enable it) then you may have a faulty card.



yehaa my two 485 is finaly arriving to morro bin stuck in customs for a month
started preping via lapping one of the GPU coolers to morro the other one is going to get lapped only down side is dont have any IC D at home and its a B to get in Poland so i have to go with AS 5 but thats ok to
Have taken some pics will post them when im done with the other cooler and the cpu cooler and the shims



Look forward to your pics!!!



@lawtq
hi m8 hows it going
got the 980x back
and are you still running the 480m



Never got my cpu no Lost by USPS's best service!! Didnt run the x7200 for weeeeeks cause I was so p'd off! And not having a cpu gives you no choice lol.

Now have a xeon W3680 oc'd to 4.2ghz with a vcore of only 1.2875, great! Still running one 480m, I really cant justify upgrading gpu, the 480m handles everything, make sure you put up loads of pics!



i cant get my Bclk higher then 148 then i get bsod then it restarts and it has reset it self
you using XTU or setfsb or some thing
even that i upgraded the ram to 1600mhz
at one point i got it to 160 without bsod
doing my head in



thats a big lag...........so c mon bro im sure u can beat those m18x 6970m cf



I would skip the raid or at least use two of the ssds in raid and make the third a standard spinner. That would greatly increase your onboard storage potential and lower costs. The benefits of the third drive in raid is negligible while increasing your opportunity to lose data if a drive goes down. Another option here would be to go raid 5 but then your left with 500 gigs onboard.



Hi guys my pics and benching will be delayed a little ran out of sand paper for the lapping of the GPU coolers since i calculated that i could use the ones i had but i got new ones with the cards with a dif GPU stamping in them so the old ones wont due since the stamping is placed in a dif place so it can interfere with the cooling i think dont kill me if im wrong havent done proper mezurements but just looking at them there is a small dif so getting new paper to morro and trust me they arent straight any where alot sanding to do



any1 knows where i can get dual gtx 470m sli to replace my old dual 460m's
as its not available on the
sager retailers,are the gtx 560m's more powerfull than the the 470m's ?

currenty am awaitng sager 2 check up my pc as it just died alone lol seems crazy but well happens



It is unlikely that the resellers would have them since the 470m is no longer being produced. I have had some people find them on ebay, but I don't know how much I trust that personally lol.

As far as performance is concerned, take a look at some of the benchmarks for the 560m over at notebook check. They put the 470m as outperforming it slightly, but they will be close.



ORG BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:575 Standard setting
Mem:1500 Standard setting
Physx on GPU 1
Temp Idle:33c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P26635
GPU:22677
CPU:55908
Link to Score: 26635

Spoiler

Uploaded with ImageShack.us

Uploaded with ImageShack.us

First run after installation pics and Oc max on standard Vbios and Oc max on Bumpt VBios coming later have to try these bbys out in some real gaming



The nVidia Quadro FX5010M with 4GB of GDDR memory is now available to order for this model!
_



What about the 580M? I saw the BIOS support update for it.



hit 33000 to night will up load later



Yes please do! Your best 3DMARK 11 too!
_



I'm looking for a new laptop to replace my old NP5790. I do some light gaming but I'm really more interested in having a strong platform for VMware which I'll be using to create ESX testing environments.

Here are the basics of my initial build:

17.3" FHD 16:9 "Glare Type" Super Clear Ultra Bright LED Glossy Screen
Intel® Core™ i7-970 (3.2-3.46GHz) 12MB L3 Cache, 4.8 GT/sec QPI, LGA 1366
IC Diamond Thermal Compound - CPU + GPU
nVidia GeForce GTX 485M 2,048MB PCI-Express GDDR5 DX11- ~ 12,288MB DDR3 1333MHz Memory (3 SODIMMS)-
120GB Intel 510 Series Solid State Drive (SSD2 Serial-ATA III)
500GB (w/ 4GB SSD Memory) Seagate XT 7200RPM NCQ Hybrid
500GB (w/ 4GB SSD Memory) Seagate XT 7200RPM NCQ Hybrid
Bigfoot Networks Killer™ Wireless-N 1102

I have a couple of questions.

1. I was hoping to configure Raid 1 on the 500 GB drives. Is that possible on this machine if neither drive is the primary?
2. If I'm not bothering to go for SLI is it worth investing in a laptop that's built for that?
3. Is investing in the 990X Extreme worth it if I'm not overclocking?
4. Is there anything else I need to consider?

Thanks All,

S.



So I was looking to add a 3rd monitor to my system, and came across this, anyone have any experiance with it or know much about it ?

Amazon.com: Diamond Multimedia BizView USB to HDMI Video and Audio Adapter (BVU1000): Electronics



Dont do raid on those drives....trust me, been there. I had a raid5 setup with those drives and nothing but weekly failures (the drives would fall out of raid). The drives werent bad but there not good for raid. Even Seagate has said as much. Also, I dont know where youre buying it from, but my reseler Xoticpc, has also said thats a bad idea, dont know about other resellers.

There is a whole lot of messages here on that subject, search for my posts, and I believe there is a whole different thread dedicated to that also. Save yourself massive headaches.....just dont. Get yourself some good WD Scorpio 500GB's and go with them....

That wireless network card is meh.......just go with the Intel Ultimate N 6300, you will be fine. And yes, I have the 990X and yea I love it. You can see my specs in my sig.

Rest of system looks great though. I did go SLI because I game also, but a single 485 will be fine if youre not into it a lot.

BTW, I use my system for work as well as games. I run 3-4 vms (vmware) at a time for work.



What you talkin' 'bout Willis! Still no problem with RAID 1 on my end. BTW, the Seagate forum is now rumbling about SD26. However, as you've documented RAID-5 is a definite no-no. Also, I've seen seem some RAID-0 folks have inconsistent results for RAID-0 on the XTs


s.flybuss, I think you'll be fine. You have a similar config as me (see sig). SSD system drive and RAID-1 data drive. No issues on this since day one. In regards to SSD, if you can shave a few bucks with a SATA II drive, you may want to take a look at that. It's really up to you. After flashing the [FW] on my Crucial C300, the drive has performed like a champ. If you want to know why I'm mentioning the drive it's because the x7200 won't gain too much with a SATA III drive as it will be limited to its SATA II controller.



Here i some pics from when i resived the GPU's and was lapping the GPU Heat zinc's
Unpacking the box

Spoiler

the first pic is the most important

By torment78 at 2011-06-17
very well packed boxes nice done easy to empty

By torment78 at 2011-06-17

By torment78 at 2011-06-17


By torment78 at 2011-06-17

The Content

Spoiler

i was happely supriced to se that they sent fans and Heat zincs
By torment78 at 2011-06-17

By torment78 at 2011-06-17


By torment78 at 2011-06-17

Pic's from dif stages of the lapping

Spoiler

the tools you need for most of your surgery's

By torment78 at 2011-06-17

here is the Heat zinc Like it comes before i remove any thing

By torment78 at 2011-06-17
the thermal pads are very fradgile so be careful when removed put them on a clean plastic film and dont remove the green plastic put so its facing up
the preaplied Paste you need razor blades for and alcohol to clean of dont scrape to hard so you scratches becouse they are hard to get out


By torment78 at 2011-06-17

Here is some pics from difrent stages under the process
The striped area is where dip is and the paper havent started to take yet or on starting to take

By torment78 at 2011-06-17

By torment78 at 2011-06-17

By torment78 at 2011-06-17

final result

Spoiler

By torment78 at 2011-06-17

By torment78 at 2011-06-17
Ready for installing

By torment78 at 2011-06-17

Some pics of the GPU's and istallation

Spoiler

By torment78 at 2011-06-17

By torment78 at 2011-06-17

By torment78 at 2011-06-17

By torment78 at 2011-06-17

How i did it

Spoiler

Started with 240 grit and just do the movment like when you lap a CPU up and down in 40 reps den turn 80degree do 40 more untill almost flat then go with 320 grit just do the same but this time untill its compleatly flat then go for 400grit rotate after 40 then when you see there only markings from the 400 paper and its still flat keep on going to a higher grit count you be ok to stop at about 1000 or 1500 grit then you just get your polish paste and a cloth and start going at it when done clean with alcohol to make shore that no paste resedue or finger prints left on the heat zinc bada bing your done

AND THIS IS THE MOST IMPORTANT THING OF ALL

Spoiler

By torment78 at 2011-06-17



Hahahaha!! The first and last pic's deffo are the most important, now that is how you take pics, very nicely done!!!!

I'm bursting with jealousy, are they everything you thought they would be? Do they make your 480m sli look silly? Nice tattoo dammit lol!



Nice lapping job!



Yep these bby's blow the 480's totally out of the water

Thanks guys for your feed back
the lapping deffo made a dif im not hitting over 71c with the highest Overclock



My Vantage Benches SLI 485m


Benches made with ORG VBIOS

Spoiler

ORG BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:575 Standard setting
Mem:1500 Standard setting
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 26635
GPU:22677
CPU:55908


Uploaded with ImageShack.us



ORG BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:675
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:66c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 29241
GPU:25113
CPU:57689


Uploaded with ImageShack.us



ORG BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:685
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:65c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 29447
GPU:25184
CPU:59842


Uploaded with ImageShack.us


ORG BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:700
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:66c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 29772
GPU:25553
CPU:59005


Uploaded with ImageShack.us


ORG BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:710
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:67
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 29915
GPU:25625
CPU:60102


Uploaded with ImageShack.us

Benches with Overclocked CPU 3,6Ghz ORG VBIOS

Spoiler

CPU OverClock to 3.6ghz
ORG VBIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:575
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:62c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.625Ghz
Bclk:145mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:78c
Temp Max Core:89c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 27265
GPU:23097
CPU:59463


Uploaded with ImageShack.us


ORG VBIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:675
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:65c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.625Ghz
Bclk:145mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:78c
Temp Max Core:90c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 30149
GPU:25695
CPU:62811


Uploaded with ImageShack.us


ORG VBIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:700
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:68c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.625Ghz
Bclk:145mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:82c
Temp Max Core:92c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 30663
GPU:26201
CPU:62692


Uploaded with ImageShack.us


ORG VBIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:710
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:68c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.625Ghz
Bclk:145mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:82c
Temp Max Core:93c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 30884
GPU:26345
CPU:63929


Uploaded with ImageShack.us


ORG VBIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:720
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:68c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.625Ghz
Bclk:145mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:82c
Temp Max Core:93c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 31092
GPU:26579
CPU:63386


Uploaded with ImageShack.us

Last of the 3.6Ghz Benches

Benches with Overclocked CPU 3,8Ghz ORG VBIOS

Spoiler

ORG VBIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:575
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:68c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.875Ghz
Bclk:155mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:82c
Temp Max Core:93c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 27310
GPU:23236
CPU:57617
MISSED TO TAKE SCREEN OF THIS ONE




ORG VBIOS
Volt:2D o.85v Standard setting
Volt:3D 1.00v Standard setting

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:675
Mem:1500
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:68c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.875Ghz
Bclk:155mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:84c
Temp Max Core:93c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 30244
GPU:26027
CPU:58842


Uploaded with ImageShack.us

Just wanted to pass 31000 with the Org BIOS did that with the 3.6Ghz
Overclock so this was only for comparing the dif when Overclocking the CPU

Benching with standard 3.3Ghz Overclock VBIOS 1.03V

Spoiler

OVERCLOCK BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.03v

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:730
Mem:1500 Standard setting
Physx n GPU 1
Temp Idle:34c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 30411
GPU:26045
CPU:61176
MISSED TO TAKE SCREEN OF THIS ONE


OVERCLOCK BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.03v

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:730
Mem:1800
Physx n GPU 1
Temp Idle:34c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 30917
GPU:26552
CPU:61004


Uploaded with ImageShack.us


OVERCLOCK BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.03v

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:740
Mem:1700
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 31055
GPU:26684
CPU:61059
MISSED TO TAKE SCREEN OF THIS ONE


OVERCLOCK BIOS
Volt:2D o.85v Standard setting
Volt:3D 1.03v

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:745
Mem:1700
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 31227
GPU:26879
CPU:60674


Uploaded with ImageShack.us

Benching with 3.6ghz and Overclock VBIOS 1.03V

Spoiler

CPU OverClock to 3.6ghz
Overclock VBios
Volt:2D o.85v Standard setting
Volt:3D 1.03v

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:750
Mem:1700
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.625Ghz
Bclk:145mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:79c
Temp Max Core:90c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 32458
GPU:27846
CPU:64521


Uploaded with ImageShack.us

Benching with 3.7ghz and Overclock VBIOS 1.03V

Spoiler

CPU OverClock to 3.7ghz
Overclock VBios
Volt:2D o.85v Standard setting
Volt:3D 1.03v

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:750
Mem:1700
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.750Ghz
Bclk:150mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:82c
Temp Max Core:93c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 32956
GPU:28201
CPU:66682


Uploaded with ImageShack.us

Benching with 3.9ghz and Overclock VBIOS 1.03V

Spoiler

CPU OverClock to 3.9ghz
Overclock VBios
Volt:2D o.85v Standard setting
Volt:3D 1.03v

Driver:275.33 Whql
OS:Win7 64Bit Ultimate

Clocks:750
Mem:1700
Physx n GPU 1
Temp Idle:33c
Temp Max During Bench:70c
Temp Utillity:CPUID HWmonitor ver 1.11.0
Paste:Arctic Silver 5

CPU Settings
CPU:3.925Ghz
Bclk:157mhz
Uncore:1,270v
Core:1,350v
MemV:1,60v
memT:9/9/9/27
Turbo Boost:Off
Temp Min core:81c
Temp Max Core:91c

Vantage Advanced Edition
Ver 1.0.2
Performance Mode
P 33016
GPU:28638
CPU:60994
I save the screen so it would safe now i cant find it will do a new run and take screen later

All overclocking was done with Setfsb for the CPU
and EVGA Precision 2.0.2 for the GPU's
NiBiTor was used for modding the VBios thanks to Mavke @ MVKtech.net
for hooking me up with ver 6.03
hope all you guys like the post
more will be done for Vantage non physx and 3dmark11 and Pcmark 7



This is the latest from Sager...



Run that again with no physx man.....



So, I was looking at the left side of this beast (same side as the HDMI out) and there is also a DVI out. So I am wondering, would it be possible to add a 2nd external monitor useing the DVI, that way have 2 external monitors, one useing HdMI and one useing DVI ?
