*** Official Sager NP9175 / Clevo P775TM Owner's Lounge! ***

I think this heatsink is fake. Bootom is flat and what about cooling GPU memory and power section?



Are there any upgraded heat sinks for this laptop? I see some sellers promote advanced/upgraded cooling and some others don't mention it?



Does your GTX 1070 achieve more than 1650 Mhz on games? I thought that it should reach about 1850Mhz and have about 18500-19000 GPU score in firestrike. What bios version do You have? My is 86.04.2A.00.29.



Everyone should use the same base heatsink now.



Were there differences previously then?



I was more thinking the 750tm actually. This should be the same.



How do you guys (P775TM owners) like the chassis? Does it feel cool, comfortable, palm rest feels nice, keyboard feels nice, port locations all make sense, etc?

Trying to decide between this and P870TM. I kinda like the appearance of P775TM better, though I know P870TM is capable of better cooling. It may come down to just how each one feels, and comfort of use, if anyone has any input. Intended build is 17" FHD, GTX 1070, i7-8700k.

What's your day-to-day use impressions?



Well, it might not be perfect for gaming, since your hand is utilizing only one part of the keyboard most of the time, which might feel uncomfortable. But since I see an i7-8700k, my guess is that you're looking to create a workstation of some sort and for that purpose, it's quite alright. The tactile feel is nice, but I can't really compare it to anything else. You can still buy a separate keyboard, if you're feeling like it.

As for the cooling, I didn't have any problems with i5-8600k and GTX 1070, since I use a cooling pad, undervolt and delid. Usually, it doesn't go over 70, so I was quite surprised, that a laptop with this pack can be chill. You might want to ask P870TM users about their experience. Good luck!



Laptops are quite thick, so if it lies flat on the desk, the edge will cling to the wrist. the solution is trivial. You buy a cooling pad so that the laptop is at an angle (eg COOLER MASTER NOTEPAL U3 PLUS). Then you have full comfort for the hands and extra cooling of the laptop.

These laptops are perfect for gaming but only at the desk. They are too heavy and too big to use on knees sitting on the couch. But if you want to have the strongest guts for work and games (desktop CPU and GPU) P775 and P870 are the only way.

I chose P775 because he looks better to me, and it is slightly smaller (and I dont need two GPU's) but P870 has a bit stronger cooling (due to its size)



The way i use mine is having an external keyboard, because i´m too picky with keyboards. So at home i have an external keyboard/mouse/lcd/power adapter, and then at work i have another set of keyboard/mouse/lcd/power adapter.
I also 3D Printed two sets of desktop risers/stands to sit the laptop.
I never seen a laptop matching the comfort levels of a good external keyboard/mouse so i never even considered comfort to be important. To me comfort comes from the fact that i can quickly transition my laptop from home to work.
Now if we were talking about a laptop for coding that would be different, i like to code my stuff with a thin and light laptop, so i can go to the couch and have it in my lap or go to different locations to run diagnostics or debuggers.

By the way, the P775 can cool down a GTX 1070 / 8700K combo without any problem, considering that the assembly was done correctly.



There is nothing quite as comfortable as a full depth cherry MX brown keyboard sitting at a desk for long typing sessions.



I intend to have a docking setup in my office, but also like to sit in my chair and use it (I have a coolermaster notepal u3 plus for my old laptop, but the fans crapped out. Still use it, sans fans)

How is the P775 for docking? I'm guessing you'd ideally want a thunderbolt 3 docking station? I also assume dual monitors isn't an issue.



Thunderbolt will give you the cleanest setup but a USB hub setup and display cables would also work.



Hello, would anyone have a vbios from gtx 1070, version 86.04.72.00.12 or 86.04.72.00.13 or similar? I would be very grateful for sending me or link to download.



Hi, I do have 86.04.72.00.12 it seems. If it's possible to extract it, I would give it to you with pleasure. Respond, if you're still in need.



Hi, thank you, I have tested 86.04.72.00.13 and it dosen't work so with 12 either. Thank you for response.



Which card are you using?



I'm trying to run gtx 1070 on P775TM1 with higher TDP limit than stock 115W.



The older versions wont boot, the code is different and the new ones wont work with the old editor.



What about modding an old vBIOS and updating the GOP, maybe that will let it boot on -TM systems?



Then it's a case of having the skill to modify the editor for the new versions and correcting the positions of the editor.



Try the vbios in the coffee lake refresh upgrade thread, my DM3 2016 1080s are successfully modded using that as a base and they work fine with the custom BIOS and 9900K



That’s where I got the idea from. The creator of that mod updated the GOP on the old vBIOSes and got them to boot on the Coffee Lake BIOS.



Well well, after at least 6mos since the P775TM1 with the O/Cable 8700 setup came out I have followed this thread very closely. I watched many Youtube videos and searched thru as many 17.3in laptops with any hint of undervolt and other options in such laptop.

Well it in fact came down to the P775TM1 from HIDEvolution. I only called to CA and their offices to get some information but in fact Don is as good as has been said in this forum.

I have ordered this:
EVOC High Performance Systems P775TM1 17.3" Custom Built Gaming Laptop w/ nVIDIA GTX 1060, 1070 or 1080

LCD Panel
17.3" Full HD (1920x1080) IPS LED Antiglare Matte Type Display - with nVIDIA® G-SYNC™ Technology

Display Warranty
30 Days Zero Defective Pixel Warranty (perfect panel guarantee) -

Video Card
NVIDIA GeForce GTX 1060 w/ 6GB GDDR5 - NVIDIA G-Sync Enabled

Prema Custom BIOS
Prema Custom BIOS - Latest Updated Version once available - Contact us for details

Processor
HIDevolution Delidded - Unlocked, Under Volted, and Overclocked 8th Gen Intel Core i7-8700K 6 Core-12 Thread Processor, 4.7 GHz (HIDevolution OC'd to 4.8GHz) - GUARANTEED Performance (Thermal Grizzly Conductonaut included) -

Thermal Interface Materials
Thermal Grizzly Conductonaut on CPU + GPU, and Fujipoly Extreme Thermal Pads on heat sensitive surfaces – BEST PERFORMANCE -

Memory
HIDevolution Approved Standard 16GB Dual Channel DDR4/2666MHz (2 x 8GB) - installed by HIDevolution - $85.00

RAID Options
no RAID (1st drive as primary boot drive, 2nd drive as storage drive)

M.2 SSD Slot 1 (supports M.2 PCIe and SATA)
Samsung 970 EVO 500GB M.2 PCIe 3.0 x4 NVMe 3D-VNAND SSD ...
M.2 PCIe NVMe or SATA SSD

Slot 2
500GB Samsung 860 EVO (3D VNAND TECH) M.2 SATA SSD - $ ...
1st 2.5" HDD/SSD Bay

2TB Seagate FireCuda Gaming 7mm SSHD (ST2000LX001) - installed by HIDevolution -
2nd 2.5" HDD/SSD Bay
Empty HDD bay (with caddy/adapter)

External Optical Drive
External Bluray read/write DVDRW drive -

Wireless Cards
Killer™ Wireless-AC N1535 802.11 ac/a/g/n 2x2 NGFF w/ Bluetooth 4.2 -

Operating System
Genuine Windows® 10 Pro, 64bit, English - $130.00

Operating System Reinstallation Media
OS Reinstallation + Drivers USB Flash Drive - $25.00

Office Software
None
Battery Options
Audio
Onkyo Speakers x 2 + Subwoofer
Back-lit Gaming Keyboard
Customizable Gaming Macro Back-lit Keyboard
Keyboard Language
U.S. English
Branding
EVOC Logo on LCD Cover and Bezel
Warranty and Service
1 Year HIDevolution Limited U.S. Warranty + LIFETIME HI ...
Warranty and Service
1 Year HIDevolution Limited U.S. Warranty + LIFETIME HIDevolution Technical Support
HIDevolution Limited Global Warranty
NONE



Congratulations and welcome to the HIDevolution Gaming Team! The team for enthusiasts!



Thanks for the welcome Ultra Male. I am hoping the upcoming holiday will keep my mind occupied until my unit will arrive. Again thanks sir.



What's the machine going to be used for?



This.


Sorry, I just had to.



Well Falkentype that bright mushroom cloud is expressive for certain but i hope that such does not follow my travels with this laptop. Hehe. More than one bios chip was corrupted in my days in looking for record speeds with desktop setups.

Meaker@Sager the P775 is intended to continue my home video editting and allow for use of the HDMI output to show what I want on a TV screen. I do very little so little that you might say I do not game at all. That said the Prema bios does not leave me wishing to setup a Bios as I have for years now on desktop rigs so I bowed to maybe more rig than I needed cost wise to be closer to my Bios. The NVME main drive is aimed directly at the "searchable" nature of the tutorial software I will be using with this laptop.

Thanks for the welcome guys. It feels good to become involved in forum life after about a 4 year layoff of such. RGone...



If someone could modify 1070 vbios I could check it on my hardware (I've got programmer so I can revert back if it doesnt work)



Sounds like a great fit hardware wise then, enjoy



Hey all, my order is arriving tomorrow and the panel I chose was the AUO 144hz B173HAN03.1. Does this have the same inverse ghosting issue as the Asus laptops that have the 3.2 version of the display ?



I don't believe so but let us know how you get on tomorrow.



Will do, I wasn’t sure if it was just an Asus issue with their specific version of panel they used. There must be many people with the same screen as me, everyone else good ?



I would have expected so, but it's not what I've seen on here.



Fedex is horrible. I paid good coin to get this priority overnight and it’s still in California with a later deliver date. Should have arrived by 1030AM today.


Sent from my iPhone using Tapatalk



Not many couriers have good reviews on their depots, let's put it that way.



How is upgrade-ability these days on the MXM GPUs on these laptops? Same as always I’m assuming where we won’t know if we can upgrade till the new GPUs come out and form factor is the same.


Sent from my iPhone using Tapatalk



That and the usual BIOS issues with a little bit of power cable uncertainty on the high end.



Well the system came in and I am very impressed with it. Build is flawless and screen is perfect. Pro star did a great job here. See below for my first stock benchmark. GPU temps can be high and hit 90C, but boost clock always stays above 1700mhz. CPU temps are below 85C and stay at 4600mhz during benching and gaming.






Sent from my iPhone using Tapatalk



I assume you have no prema bios on your notebook?



No I don’t, just the stock bios from Pro Star


Sent from my iPhone using Tapatalk



What titles are you going to play on it?



Destiny 2, black ops 4, battlefield V, dragons quest, monster hunter world , Forza Horizon 4, just cause 4. That’s about it for right now


Sent from my iPhone using Tapatalk



Well have fun



rumor says that next gen is still 775TM series with Z370, 8100~9900K, RTX2070(clevosized), RTX2080(clevosized).
no more 870TM series due no more SLI.



If true that means current 775 owners will be able to upgrade to the RTX series


Sent from my iPhone using Tapatalk



When I first purchased this machine, I had the motherboard die and had to send it back to Eurocom. They took care of it and shipped it back super quick, props to them. Yeah I don't have the prema bios, but that's alright. I've been slowly allowing myself to let others take care of some details and not have to worry about tinkering with them. I know, I know, but sometimes life is just simpler that way.

Anyway, I've finally managed to have the time to find a decent undervolt (no BSoDs anymore) -

Throttlestop settings:
Speed Shift - EPP: 64
C1E unchecked
Speedstep unchecked

48 core multiplier for all cores
CPU core offset -117.2 mV
CPU Cache offset -117.2 mV

190 watt power limits

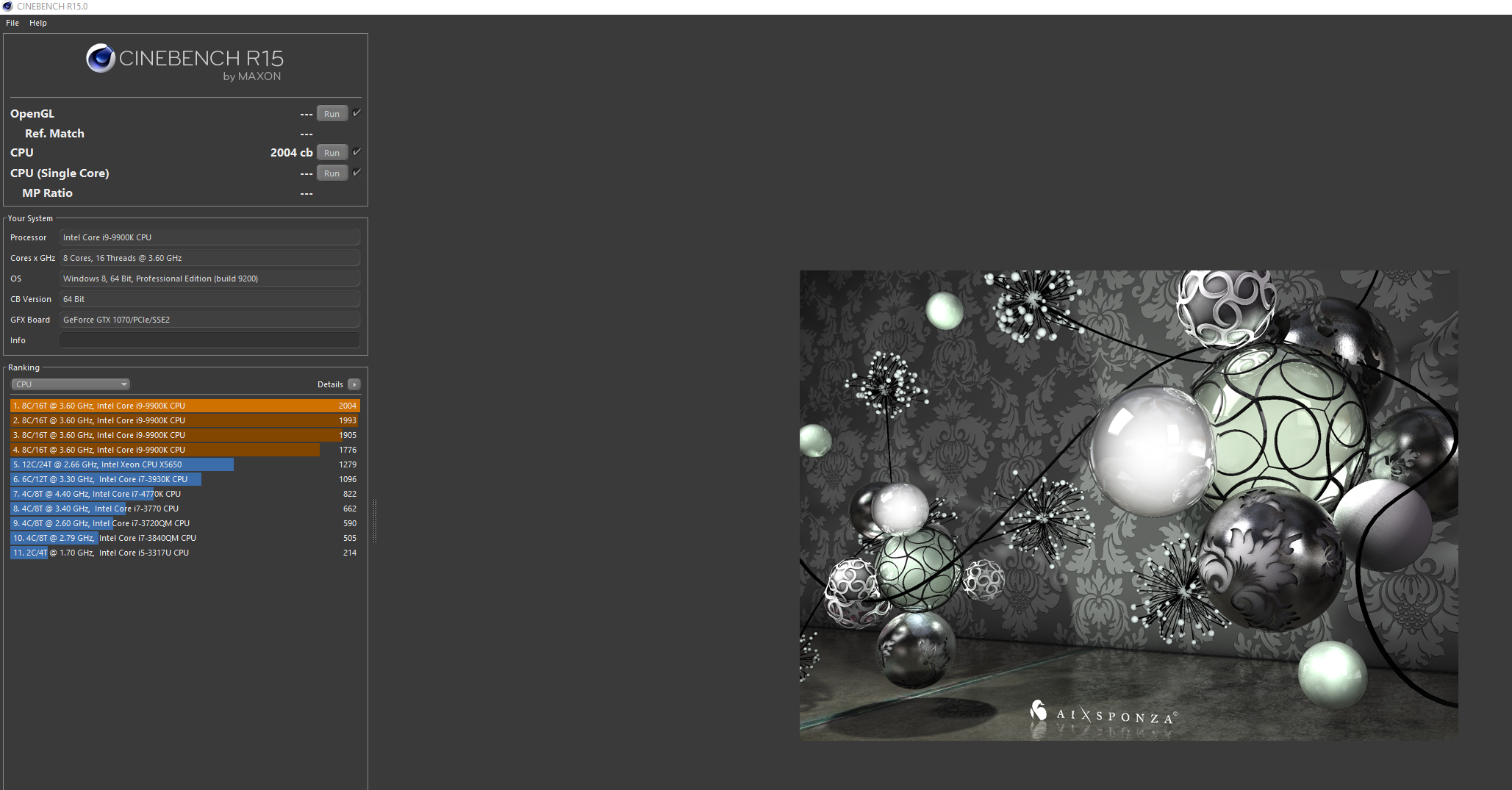

Only thing I'm curious about: how does this compare to other i9-9900k P775s? I can't run at 190W for long, basically just enough to do a Cinebench run. Can an overclock/undervolt be more stable if I use a static voltage instead of an offset? I don't mind not having 5 GHz if it means a nice power:heat ratio.

edit: I've settled on a more conservative, error-less undervolt. Set 8-core turbo to only 4.2 GHz, and reduced the undervolt to -80mV. Passed throttlestop's bench with no errors over and over. Otherwise, the rest remains the same; 1-7 core turbo is still 5.0 GHz, but I also set a 95W TDP limit. Cinebench uses all the cores so of course the score is much lower (just under 1600) but still quite good. Can't complain.



Static voltage can help higher end stability but increases idle power draw.



If that were true I sure hope HID offers upgrade service. Would send my TM across the ocean to them in a heartbeat lol.
