    *** Official Sager NP9877 / Clevo P870TM-G Owner's Lounge! - Phoenix 4 ***

    Discussion in 'Sager/Clevo Reviews & Owners' Lounges' started by Spartan@HIDevolution, Oct 5, 2017.

  1. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Is that a new one for the 9900k? I have the old 6700k one that's especially tall.

    Meaker@Sager, Jul 3, 2019
    #3199
    kfxsti likes this.
  2. kfxsti

    kfxsti Notebook Evangelist

    Reputations:
    121
    Messages:
    472
    Likes Received:
    302
    Trophy Points:
    76
    There is a new one yes indeed . I have it and the Rockit 88 .
    ** Let me refraise this. Lol unless I have some knock off or something. I have a 9series bitspower IHS and I definitely know I have a Rockit88 9 Series IHS. Lol

    kfxsti, Jul 3, 2019
    #3200
  3. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,706
    Messages:
    29,841
    Likes Received:
    59,619
    Trophy Points:
    931
    The 9900K die is thicker than 8086K. Rockit warns against use of 8th gen lid on 9900K you could crush the die.
    Where can you buy Bitspower IHS for 9th gen? It seems they only advertise for 7th and 9th gen.

    Have you the thickness (height) numbers for stock 9900K lid? As well for Rockit 9 series IHS and same for the Bitspower lid? Thanks

    Papusan, Jul 3, 2019
    #3201
    jc_denton likes this.
  4. kfxsti

    kfxsti Notebook Evangelist

    Reputations:
    121
    Messages:
    472
    Likes Received:
    302
    Trophy Points:
    76
    I'll measure first thing in the AM. And Amazon is where the bits came from.

    kfxsti, Jul 4, 2019
    #3202
    Papusan likes this.
  5. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Good point, unless you go the whole hog and grind the die down too.

    Meaker@Sager, Jul 4, 2019
    #3203
  6. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Where did you buy the 9th gen Bitpower ihs? It's not listed in their store from what I can see.

    Edit: Just read the previous replies :)

    Last edited: Jul 5, 2019
    jc_denton, Jul 4, 2019
    #3204
  7. kfxsti

    kfxsti Notebook Evangelist

    Reputations:
    121
    Messages:
    472
    Likes Received:
    302
    Trophy Points:
    76

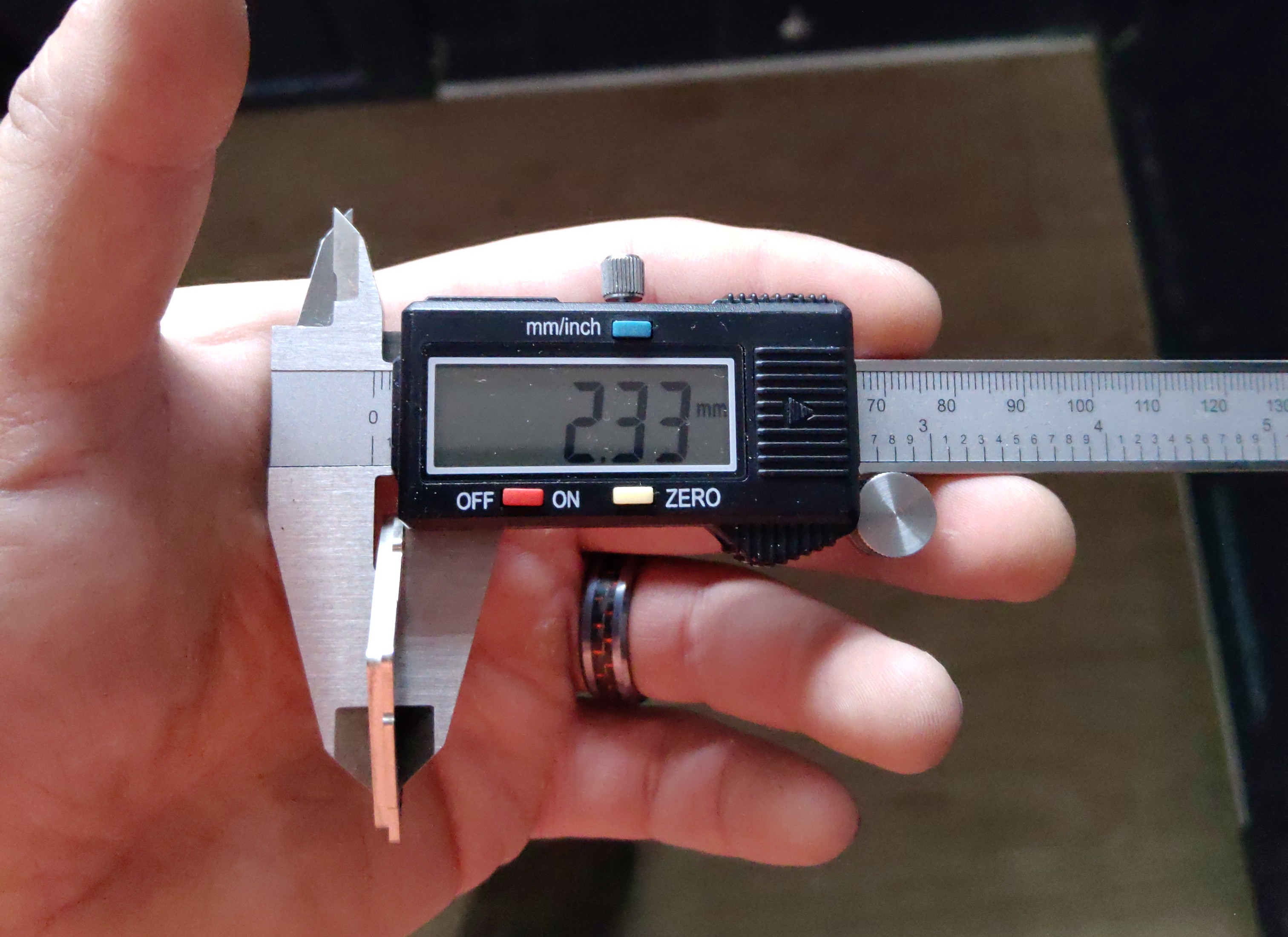

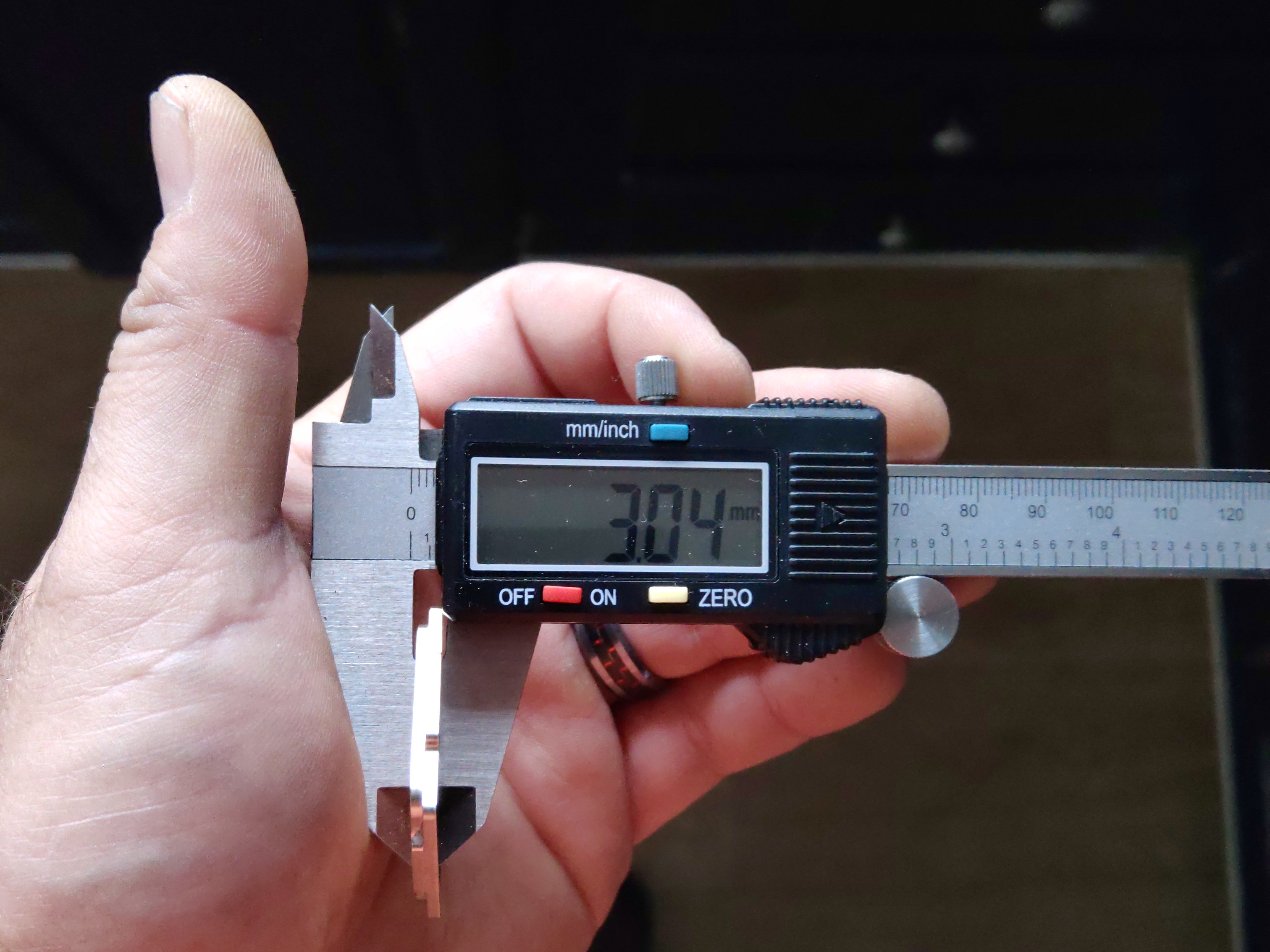

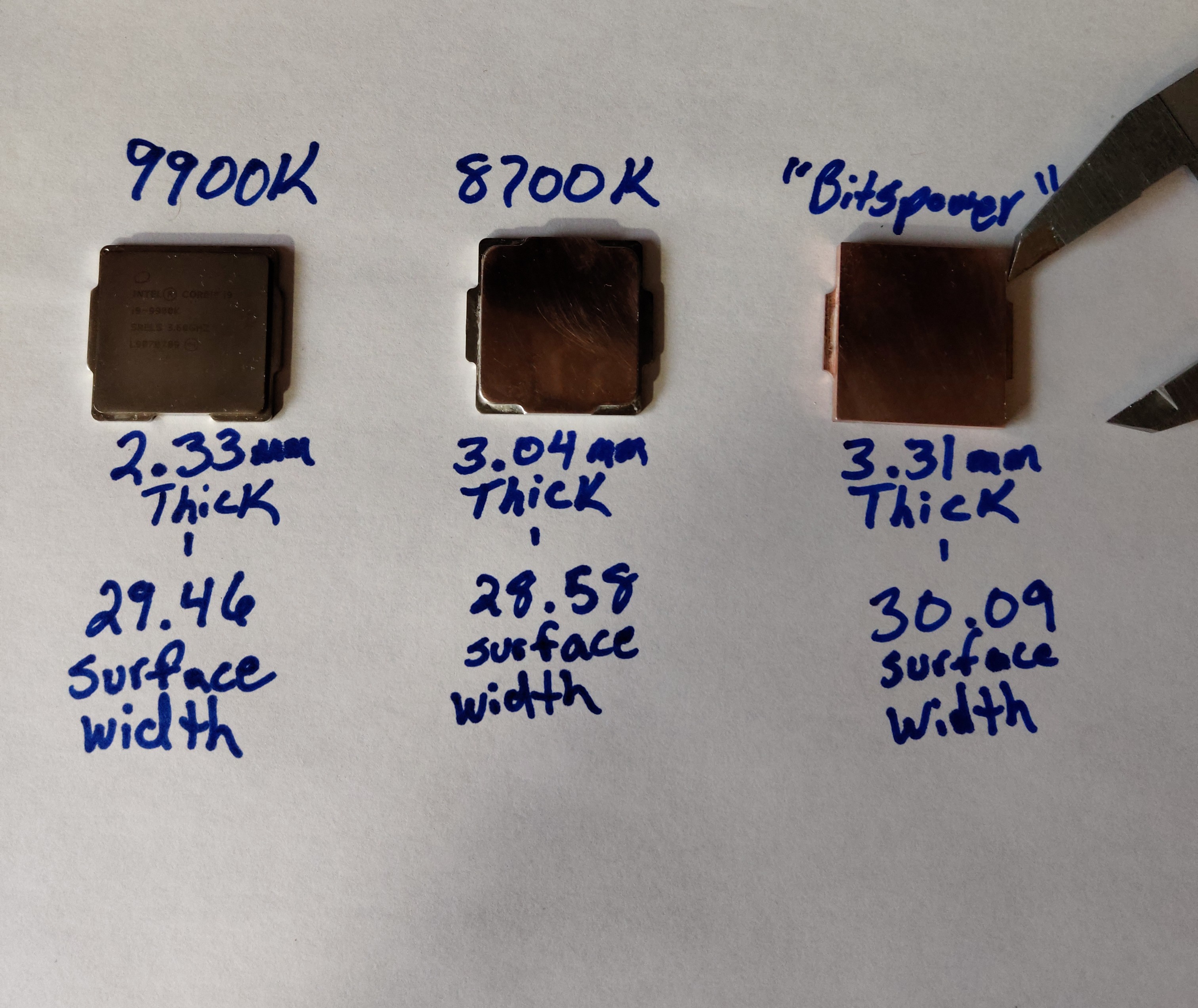

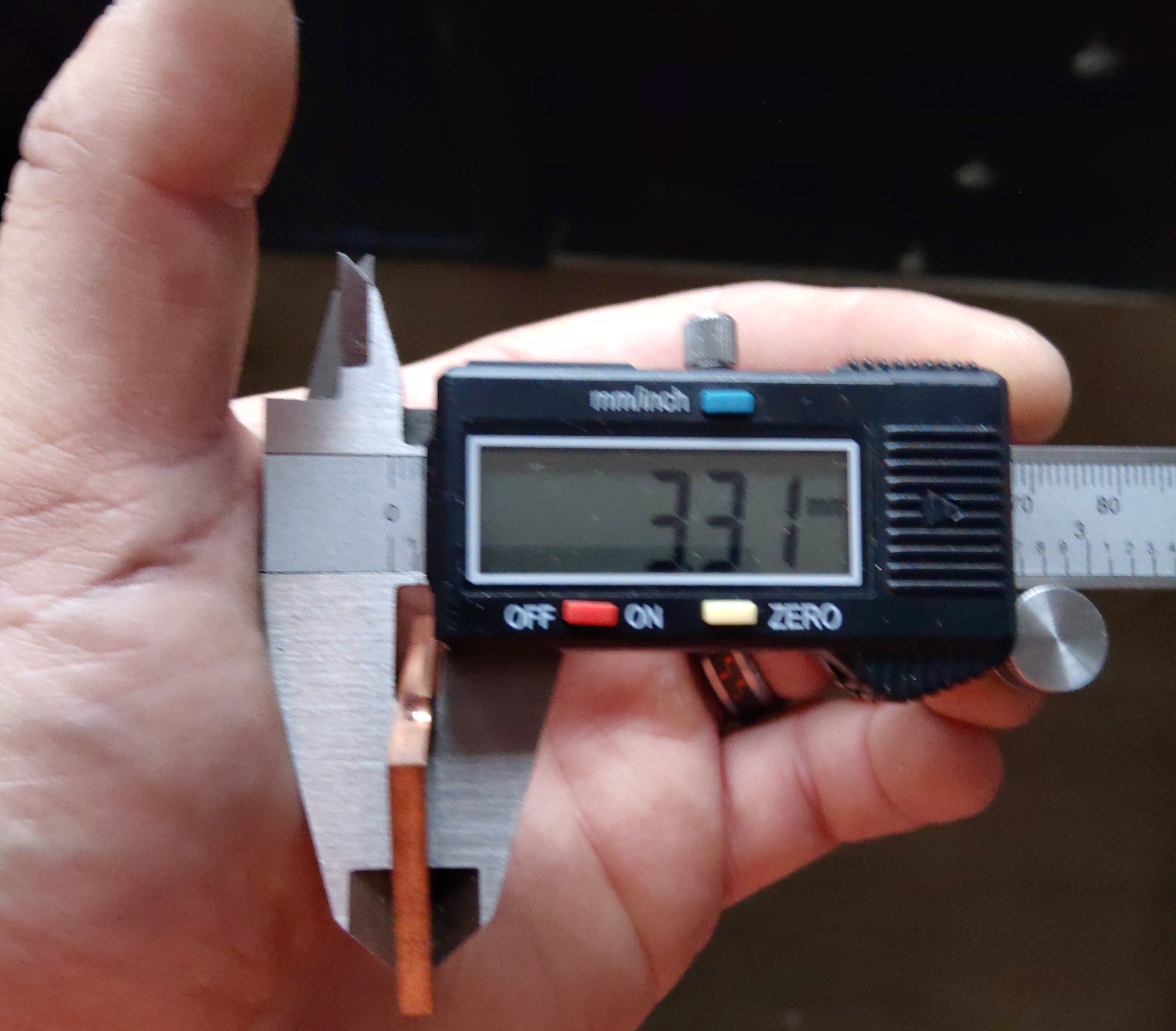

    I'll have to measure the Rockit88 when I repaste this weekend.


    Attached Files:

    kfxsti, Jul 5, 2019
    #3205
    jc_denton likes this.
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    I think the old silver shining one is around 4mm thick?

    Meaker@Sager, Jul 5, 2019
    #3206
  9. electrosoft

    electrosoft Perpetualist Matrixist

    Reputations:
    2,766
    Messages:
    4,105
    Likes Received:
    3,936
    Trophy Points:
    331
    The old Silver Shining is ~4.3mm in height versus the stock 3.3mm.

    Here are some photos I took a few minutes ago from my IHS pile showing the SL vs the RC Copper:


    electrosoft, Jul 5, 2019
    #3207
    jc_denton and Meaker@Sager like this.
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Nice, thanks for confirming :)

    Meaker@Sager, Jul 5, 2019
    #3208
    electrosoft likes this.
  11. kfxsti

    kfxsti Notebook Evangelist

    Reputations:
    121
    Messages:
    472
    Likes Received:
    302
    Trophy Points:
    76
    What is the surface area width and length ?

    kfxsti, Jul 5, 2019
    #3209
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    A fair bit less but if you need the height the quality of contact is more important.

    Meaker@Sager, Jul 6, 2019
    #3210
  13. kfxsti

    kfxsti Notebook Evangelist

    Reputations:
    121
    Messages:
    472
    Likes Received:
    302
    Trophy Points:
    76
    The more area you have ,the less likely you are to need a shim is why I was asking. Adding too much height with not enough surface area can cause the heatsink to cup around the IHS.

    kfxsti, Jul 6, 2019
    #3211
  14. electrosoft

    electrosoft Perpetualist Matrixist

    Reputations:
    2,766
    Messages:
    4,105
    Likes Received:
    3,936
    Trophy Points:
    331
    Here are some comparison shots top and bottom.

    The RC IHS definitely has more surface space, but that is its main selling point just as the BP selling point is the added height for a better pair (at least for us).

    I used a SL in my P870DM-G when I was running a 6700k. The tighter pair allowed me to use Gelid and LM no problems. With the stock IHS, I used Kryo then eventually Nano.

    I'm running a SL 8086k in there now with the stock lid and nano atm.





    electrosoft, Jul 6, 2019
    #3212
    jc_denton, Papusan and Arrrrbol like this.
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    While if the fit is just right you get a good contact pressure.

    Meaker@Sager, Jul 6, 2019
    #3213
    kfxsti likes this.
  16. kfxsti

    kfxsti Notebook Evangelist

    Reputations:
    121
    Messages:
    472
    Likes Received:
    302
    Trophy Points:
    76
    True that. Lol but my fitting lottery sucked . On 4 Heatsinks. Lol.

    kfxsti, Jul 6, 2019
    #3214
  17. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    I get perfect contact basically with it and I'm not sorry :p

    Meaker@Sager, Jul 6, 2019
    #3215
    kfxsti likes this.
  18. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I'm having a weird issue with my keyboard. I had to clear cmos due to ram testing, and now F2 key and 0 on keypad don't seem to work. Initially I thought this was because one of the ribbon cables wasn't seated properly, but after reseating both cables it persist and only those keys don't seem to register.

    There is no damage to the k/b as far as I can tell and I certainly did not poke a hole through it.

    Any ideas? As a temp fix I just swapped k/b from my p775tm1 for the time being.

    jc_denton, Jul 7, 2019
    #3216
  19. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    The keyboards are based on arrays so if only two keys are not working that usually means it is switch based issues.

    Meaker@Sager, Jul 8, 2019
    #3217
  20. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I see, is this something that is fixable by hand?

    jc_denton, Jul 8, 2019
    #3218
  21. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Usually not I'm afraid.

    Meaker@Sager, Jul 8, 2019
    #3219
  22. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Ah bummer, thanks anyway Meaker.

    jc_denton, Jul 8, 2019
    #3220
  23. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    It's worth speaking to your reseller about.

    Meaker@Sager, Jul 9, 2019
    #3221
  24. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I'll shoot an email to Donald and see what we can do. On the bright side, the p870tm1 boots fine with 3200mhz ripjaws :)

    jc_denton, Jul 9, 2019
    #3222
    Papusan and kfxsti like this.
  25. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Nice on the memory speed :)

    Meaker@Sager, Jul 9, 2019
    #3223
    jc_denton likes this.
  26. supernovastar

    supernovastar Notebook Enthusiast

    Reputations:
    10
    Messages:
    23
    Likes Received:
    35
    Trophy Points:
    16

    Hi jc_denton,

    Have you tried cleaning the contacts on your primary keyboard ribbon cable with 99% isopropyl (rubbing) alcohol and a soft-bristled toothbrush or Q-Tip before properly reseating the cable?

    I had a similar problem with three keys that didn't work (i.e., the "backspace", " [ ", and " ] " keys) awhile ago and the above cleaning and reseating of the cable did the trick.

    Good luck.

    supernovastar, Jul 11, 2019
    #3224
    Papusan and jc_denton like this.
  27. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I simply reseated them a couple times, I will try to clean the contacts as you suggested. Thanks!

    Edit: I tried cleaning the contacts as suggested, it sadly did not help with the issue. The keys still don't register.

    Last edited: Jul 12, 2019
    jc_denton, Jul 11, 2019
    #3225
  28. Fromont

    Fromont Notebook Consultant

    Reputations:
    11
    Messages:
    133
    Likes Received:
    40
    Trophy Points:
    41
    Hey can anyone tell me if any CPU designed for a intel 300 series mobo will work in the p870tm to see if the motherboard or the cpu is dead?? asking for a friend...

    Fromont, Jul 28, 2019
    #3226
  29. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    According to this any 8th/9th gen CPU would be compatible with the 300 series. However, 6th/7th gen cpu, ie. 6700k/7700k are not with the 300 series boards.

    jc_denton, Jul 28, 2019
    #3227
  30. Fromont

    Fromont Notebook Consultant

    Reputations:
    11
    Messages:
    133
    Likes Received:
    40
    Trophy Points:
    41
    Ok yep cool. But there are no other restrictions in terms of 8th/9th gen cpus that can go in the p870tm?

    Ie I could use an i3 9100f which only costs $100 for testing porpoises ?

    Last edited: Jul 28, 2019
    Fromont, Jul 28, 2019
    #3228
  31. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    What chip are you looking at?

    Meaker@Sager, Jul 28, 2019
    #3229
  32. Fromont

    Fromont Notebook Consultant

    Reputations:
    11
    Messages:
    133
    Likes Received:
    40
    Trophy Points:
    41
    I could get an i3 9100f for $100 today and rule that out as the problem, as long as it would normally work in the p870tm...

    Fromont, Jul 28, 2019
    #3230
  33. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    In theory, it should. As it's a 9th gen lga 1151 cpu designed for z370.

    jc_denton, Jul 29, 2019
    #3231
    Fromont likes this.
  34. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,706
    Messages:
    29,841
    Likes Received:
    59,619
    Trophy Points:
    931
    Not sure if the F chips have same microcode. And If so has Clevo added them in their later firmware? Only testing can confirm or the OEMs.

    Papusan, Jul 29, 2019
    #3232
    Fromont likes this.
  35. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Best bet would be to ask your reseller wheter its supported. As Papusan pointed out, there could be potential problems.

    Would be a bummer to waste 100 bucks, hence why I wrote 'in theory'

    jc_denton, Jul 29, 2019
    #3233
    Papusan likes this.
  36. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Ah, basically it would be what was available when ordering your system generation wise.

    Meaker@Sager, Jul 29, 2019
    #3234
  37. Fromont

    Fromont Notebook Consultant

    Reputations:
    11
    Messages:
    133
    Likes Received:
    40
    Trophy Points:
    41
    Processor / CPU
    - 3.7GHz (up to 4.7GHz) Intel Core i7-8700K; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W
    - 2.40GHz (up to 4.0GHz) Intel Core i7-8700T; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 35W
    - 4.0GHz (up to 5.0GHz) Intel Core i7-8086K; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W
    - 3.2GHz (up to 4.6GHz) Intel Core i7-8700; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 65W
    - 3.6GHz (up to 4.3GHz) Intel Core i5-8600K; 6C/6T; 9MB L3; 14nm; Coffee Lake; LGA1151; 95W
    - 2.8GHz (up to 4.0GHz) Intel Core i5-8400; 6C/6T; 9MB L3; 14nm; Coffee Lake; LGA1151; 65W
    - 3.7GHz (up to 4.6GHz) Intel Core i5-9600K; 6C/6T; 9MB L3; 14nm; Coffee Lake; LGA1151; 95W
    - 3.6GHz (up to 4.9GHz) Intel Core i7-9700K; 8C/8T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W
    - 3.6GHz (up to 5.0GHz) Intel Core i9-9900K; 8C/16T; 16MB L3; 14nm; Coffee Lake; LGA1151; 95W

    Fromont, Jul 30, 2019
    #3235
  38. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    From the looks of it there aren't any 'F' type cpu listed, so it would be a gamble.

    jc_denton, Jul 30, 2019
    #3236
  39. Fromont

    Fromont Notebook Consultant

    Reputations:
    11
    Messages:
    133
    Likes Received:
    40
    Trophy Points:
    41
    Yep I’ll go the i5 8400 as the next step up probably. Although I’ll, I mean, my friend will be annoyed if it is the cpu and then I’ll end up buying a 8700k as well...

    Fromont, Jul 30, 2019
    #3237
  40. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,706
    Messages:
    29,841
    Likes Received:
    59,619
    Trophy Points:
    931
    8700K is a nice chips.

    Papusan, Jul 30, 2019
    #3238
    Encryptonite likes this.
  41. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Or the 8086k as a binned one ;)

    Meaker@Sager, Jul 30, 2019
    #3239
    Encryptonite, electrosoft and Papusan like this.
  42. Fromont

    Fromont Notebook Consultant

    Reputations:
    11
    Messages:
    133
    Likes Received:
    40
    Trophy Points:
    41
    Yes yes, I have an 8086k. The problem is, have I fried it? I mean my friend...oh **** it. Do I buy a back up 8086k? Or do I buy an 8400 to check it...

    Fromont, Jul 30, 2019
    #3240
  43. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Something easy to pass on I would say that's selling quickly.

    Meaker@Sager, Jul 30, 2019
    #3241
    Fromont likes this.
  44. Fromont

    Fromont Notebook Consultant

    Reputations:
    11
    Messages:
    133
    Likes Received:
    40
    Trophy Points:
    41
    Ok that makes sense. So either an 8700k or 8086k and then I either keep it or sell it...thanks!

    Fromont, Jul 30, 2019
    #3242
  45. monkeysystem

    monkeysystem Notebook Geek

    Reputations:
    31
    Messages:
    95
    Likes Received:
    67
    Trophy Points:
    26
    When it comes to RAM what would be better, 16-18-18-36 @3600mhz or 18-19-19-39 @3800mhz?

    monkeysystem, Jul 30, 2019
    #3243
  46. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    For games the former most likely.

    Meaker@Sager, Jul 31, 2019
    #3244
  47. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Getting it to run that speed is a challenge in it self.

    jc_denton, Jul 31, 2019
    #3245
    Papusan likes this.
  48. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Well yes, those are the desktop x299 asrock rated sticks I think?

    Meaker@Sager, Jul 31, 2019
    #3246
  49. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    I believe you are correct.

    jc_denton, Jul 31, 2019
    #3247
  50. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,189
    Likes Received:
    17,897
    Trophy Points:
    931
    Dont expect their rating in the notebook.

    Meaker@Sager, Jul 31, 2019
    #3248
← Previous pageNext page →
