    Successful MXM GPU Upgraded Laptops

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by sicily428, May 21, 2017.

  1. Ranfart

    Ranfart Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    hi everybody
    I have a zbook G2 15" with a K2100 on board.
    What is this the top nvidia i can put on my laptop?
    Thanks

    Ranfart, Jan 9, 2019
    #551
  2. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    Hi ranfart,

    I think the g2 takes the k2100 at max but if you get your hands on a m2100m it woukd be worth giving it a try. Even on the newer models the 15 inch laptops only go as far as p2200 amd after that the firm factor is m3.0b which is the 17 inch laptops

    Padraig O Cuinn, Jan 10, 2019
    #552
  3. Ranfart

    Ranfart Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Ranfart, Jan 10, 2019
    #553
  4. Padraig O Cuinn

    Padraig O Cuinn Notebook Consultant

    Reputations:
    13
    Messages:
    246
    Likes Received:
    38
    Trophy Points:
    41
    Yup thats the one having said that im not sure if you can put a maxwell card into a kelper slot. The architecture is different. How ever you might get a chance at a gaming card in it. If not them you might be at your maximum. Pm me

    Padraig O Cuinn, Jan 10, 2019
    #554
  5. awsan

    awsan Notebook Consultant

    Reputations:
    2
    Messages:
    184
    Likes Received:
    22
    Trophy Points:
    31
    Hello everyone, I just wanted to ask some questions if possible please, I own a Sager NP8180/p180hm and was searching around and found an MXM-B 1060 for around 300$

    1-Do you think it will fit (Physically)?
    2-Do you think it will work (BIOS/Architecture)?
    3-Is it worth it?
    4-Do I need a new heatsink?
    5-If not what is the latest card I can install (6xxm?/9xxm?)

    + is there any kind of unlocked BIOS for the NP8180?

    Thanks a lot

    Last edited: Jan 15, 2019
    awsan, Jan 15, 2019
    #555
  6. CaerCadarn

    CaerCadarn Notebook Deity

    Reputations:
    320
    Messages:
    1,168
    Likes Received:
    1,124
    Trophy Points:
    181
    Maybe there was once an unlocked version by Prema but how to obtain one is another question.

    The best card for HM-Series is either GTX 680m or AMD 7970m.

    Gesendet von meinem CLT-L29 mit Tapatalk

    CaerCadarn, Jan 15, 2019
    #556
  7. CaerCadarn

    CaerCadarn Notebook Deity

    Reputations:
    320
    Messages:
    1,168
    Likes Received:
    1,124
    Trophy Points:
    181
    P. S. : in order to run Pascal you need Optimus or an eDP-Screen which HM-Series doesn't provide.

    Gesendet von meinem CLT-L29 mit Tapatalk

    CaerCadarn, Jan 15, 2019
    #557
  8. awsan

    awsan Notebook Consultant

    Reputations:
    2
    Messages:
    184
    Likes Received:
    22
    Trophy Points:
    31
    Hmmm so its a lost cause.

    + Will any MXM-B 7970m work or any specific things i should be looking for? and where is the best place I can find one in?

    Thanks

    Last edited: Jan 16, 2019
    awsan, Jan 16, 2019
    #558
  9. CaerCadarn

    CaerCadarn Notebook Deity

    Reputations:
    320
    Messages:
    1,168
    Likes Received:
    1,124
    Trophy Points:
    181
    It's important that you grab one feom the earliest production run - v1.2 - newer versions means more workarounds.

    Follow this thread:

    https://r.tapatalk.com/shareLink?ur...share_tid=688656&share_fid=33462&share_type=t

    Personally I would go with the GTX 680m because with 4GB vRAM it should provide you with a better (gamer) experience than the 2gigs of the 7970m. Although the 7970m is a little bit performanter on stock.

    Gesendet von meinem CLT-L29 mit Tapatalk

    CaerCadarn, Jan 17, 2019
    #559
  10. poprostujakub

    poprostujakub Notebook Consultant

    Reputations:
    42
    Messages:
    191
    Likes Received:
    95
    Trophy Points:
    41
    poprostujakub, Jan 17, 2019
    #560
    Reciever and CaerCadarn like this.
  11. CaerCadarn

    CaerCadarn Notebook Deity

    Reputations:
    320
    Messages:
    1,168
    Likes Received:
    1,124
    Trophy Points:
    181
    That's insane! How did you do that!?

    Gesendet von meinem CLT-L29 mit Tapatalk

    CaerCadarn, Jan 17, 2019
    #561
  12. poprostujakub

    poprostujakub Notebook Consultant

    Reputations:
    42
    Messages:
    191
    Likes Received:
    95
    Trophy Points:
    41
    It was simple - I put card into slot, turn laptop on, install modified drivers (only .inf mod) and it works.
    Of course, it requres small cooling modification, because coils on the right side of card collide with copper plate, so I cut half of this plate. Temperatures on sceenshot are measured during 3DMark 11 test.

    poprostujakub, Jan 18, 2019
    #562
    CaerCadarn likes this.
  13. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Jan 18, 2019
    sicily428, Jan 18, 2019
    #563
    Reciever and hacktrix2006 like this.
  14. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jan 19, 2019
    #564
  15. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jan 19, 2019
    #565
  16. poprostujakub

    poprostujakub Notebook Consultant

    Reputations:
    42
    Messages:
    191
    Likes Received:
    95
    Trophy Points:
    41

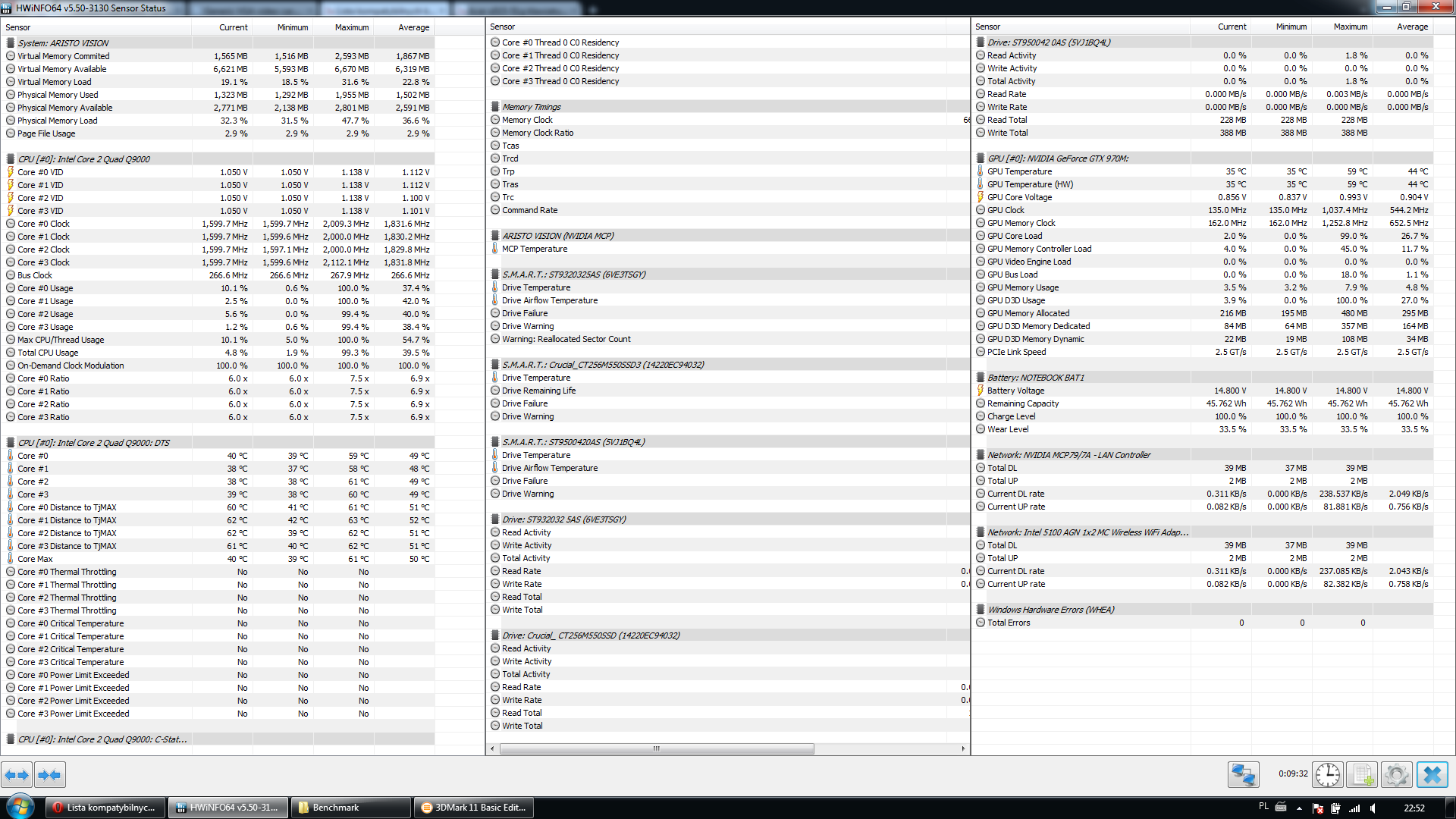

    Yes, my is equipped with Q9000 (QX9300 has already been ordered) and single GTX280M.
    It's funny, beacause it passes POST with non-clevo cards without any problems, so I use it for flashing vBIOSes in other cards. I tried 870M from MSI and 765M from Dell and both works in BIOS and Windows safe mode, but during normal boot it shows white screen and hangs. And now I got half-fried 970M from my brother's laptop (drivers crash under heavy 3D load) so I decided to try if it will works in this 5 years older laptop.

    poprostujakub, Jan 19, 2019
    #566
    sicily428 likes this.
  17. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    that's quite impressive :)
    please create a dedicated thread for that upgrade with some benchmarks. so I will add that to the list in the OP

    sicily428, Jan 19, 2019
    #567
  18. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Jan 21, 2019
    sicily428, Jan 21, 2019
    #568
    Handale30, Aroc and FTW_260 like this.
  19. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Jan 22, 2019
    #569
    Handale30 and ssj92 like this.
  20. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    If it needs external power it wont be 80/90/even 115Watts :D

    senso, Jan 22, 2019
    #570
  21. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    Last-gen Clevo 1060 and 1070 cards had that even though they were only 78W/88W and 115W/125W.

    yrekabakery, Jan 22, 2019
    #571
  22. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    Where Clevo cards that downrated TGP/TDP wise? So, what's the "excuse" about needing the extra power cable?

    senso, Jan 22, 2019
    #572
  23. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    an image of the noew cooling system of a MSI GT75 with RTX2080, and YES that is a MXM card [​IMG]
    [​IMG]

    here you go for the full review. @B0B please show that gpu without HS :)

    sicily428, Jan 29, 2019
    #573
  24. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    It looks to be similar to the MSI MXM GTX 1080 with the power connector

    Mastermind5200, Jan 29, 2019
    #574
    sicily428 likes this.
  25. win32asmguy

    win32asmguy Moderator Moderator

    Reputations:
    1,012
    Messages:
    2,844
    Likes Received:
    1,699
    Trophy Points:
    181
    I cannot wait to see a teardown of the GT63 RTX models. Hopefully it is using the same MSI MXM form factors as Tornado F5 GTX 1070 and GTX 1080.

    BTW, technically my WT75 has a successful MXM upgrade, from Quadro P3200 (MSI) to GTX 1070 (MSI). I posted details and photos in the WT75 thread.

    win32asmguy, Jan 29, 2019
    #575
    sicily428 likes this.
  26. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    please create a dedicated thread for that gpu upgrade, I will add it to the OP :)

    sicily428, Jan 29, 2019
    #576
  27. dzpliu

    dzpliu Notebook Consultant

    Reputations:
    62
    Messages:
    257
    Likes Received:
    346
    Trophy Points:
    76
    http://tieba.baidu.com/p/6022199813 (just look at the pictures)
    It looks 99% un-upgradeable to me.
    GT63 with RTX 2080, Furmark default settings: 85W (entire laptop)，Furmark+AIDA64 FPU: 45W(CPU)，220W(entire laptop)

    dzpliu, Jan 31, 2019
    #577
    yrekabakery, sicily428 and win32asmguy like this.
  28. win32asmguy

    win32asmguy Moderator Moderator

    Reputations:
    1,012
    Messages:
    2,844
    Likes Received:
    1,699
    Trophy Points:
    181
    Thanks for the link to the teardown! It looks like they have changed the GT63 to be compatible with the new GT75 MXM layout. I guess this means no upgrades for Tornado F5 / WT75 for now.

    win32asmguy, Jan 31, 2019
    #578
  29. yrekabakery

    yrekabakery Notebook Virtuoso

    Reputations:
    1,470
    Messages:
    3,438
    Likes Received:
    3,688
    Trophy Points:
    331
    Oof, those CPU/GPU temps.

    yrekabakery, Jan 31, 2019
    #579
  30. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    Yet another retarded "let's block the intake to the fans" bottom panel design...

    bennyg, Jan 31, 2019
    #580
    MiSJAH likes this.
  31. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Mastermind5200, Feb 1, 2019
    #581
    FTW_260, dzpliu, CaerCadarn and 1 other person like this.
  32. Ranfart

    Ranfart Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hi guys so I changed my quadro Yesterday on my G2 with a M2000m from a G3.
    But seems I need a mod .inf.
    Someone here have that file?
    I can't install the nvidia files (but the card is recognized)
    Btw i have a k2100m to sell if someone is interested here :)

    Ranfart, Feb 10, 2019
    #582
  33. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Mastermind5200, Feb 13, 2019
    #583
  34. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    Last edited: Feb 13, 2019
    ssj92, Feb 13, 2019
    #584
    sicily428 and FTW_260 like this.
  35. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Feb 13, 2019
    #585
  36. joluke

    joluke Notebook Deity

    Reputations:
    1,030
    Messages:
    1,796
    Likes Received:
    1,205
    Trophy Points:
    181
    https://www.ebay.com/itm/P775TM1-G-...h=item1a76780dbb:g:3HkAAOSwHN9cbZw~:rk:2:pf:0

    as far as i know (only 99% sure). This user is selling Clevo barebones (From Eurocom) with the motherboard only and coolers (with screws also) as upgrades for the previous generations.

    And almost all his sales have very positive feedback! I found the user from buyers here on NBR!

    Sold 1582 items and 99% of positive feedback so far!

    https://www.ebay.com/usr/upgradeyourlaptop

    joluke, Mar 1, 2019
    #586
  37. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Thats eurocom iirc.

    Mastermind5200, Mar 1, 2019
    #587
  38. joluke

    joluke Notebook Deity

    Reputations:
    1,030
    Messages:
    1,796
    Likes Received:
    1,205
    Trophy Points:
    181
    :O

    It is? Nice to know its a trustworthy company !

    Thanks for the info :D

    joluke, Mar 1, 2019
    #588
  39. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    "Trustworthy"
    Some people on the forums would disagree

    Mastermind5200, Mar 2, 2019
    #589
    VoodooBane, dzpliu, bennyg and 1 other person like this.
  40. joluke

    joluke Notebook Deity

    Reputations:
    1,030
    Messages:
    1,796
    Likes Received:
    1,205
    Trophy Points:
    181
    Just saw your post now! Why is so?

    joluke, Mar 4, 2019
    #590
  41. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    They've sold cards that have been flashed with a VBIOS higher than they can handle and then won't accept returns when they fail, as well as having either extremely poor or average service. Should be a thread around here somewhere. But drama isn't really appropriate for this forum/thread

    Mastermind5200, Mar 4, 2019
    #591
    dzpliu likes this.
  42. silverchairbg

    silverchairbg Notebook Geek

    Reputations:
    0
    Messages:
    82
    Likes Received:
    14
    Trophy Points:
    16
    Hey guys,

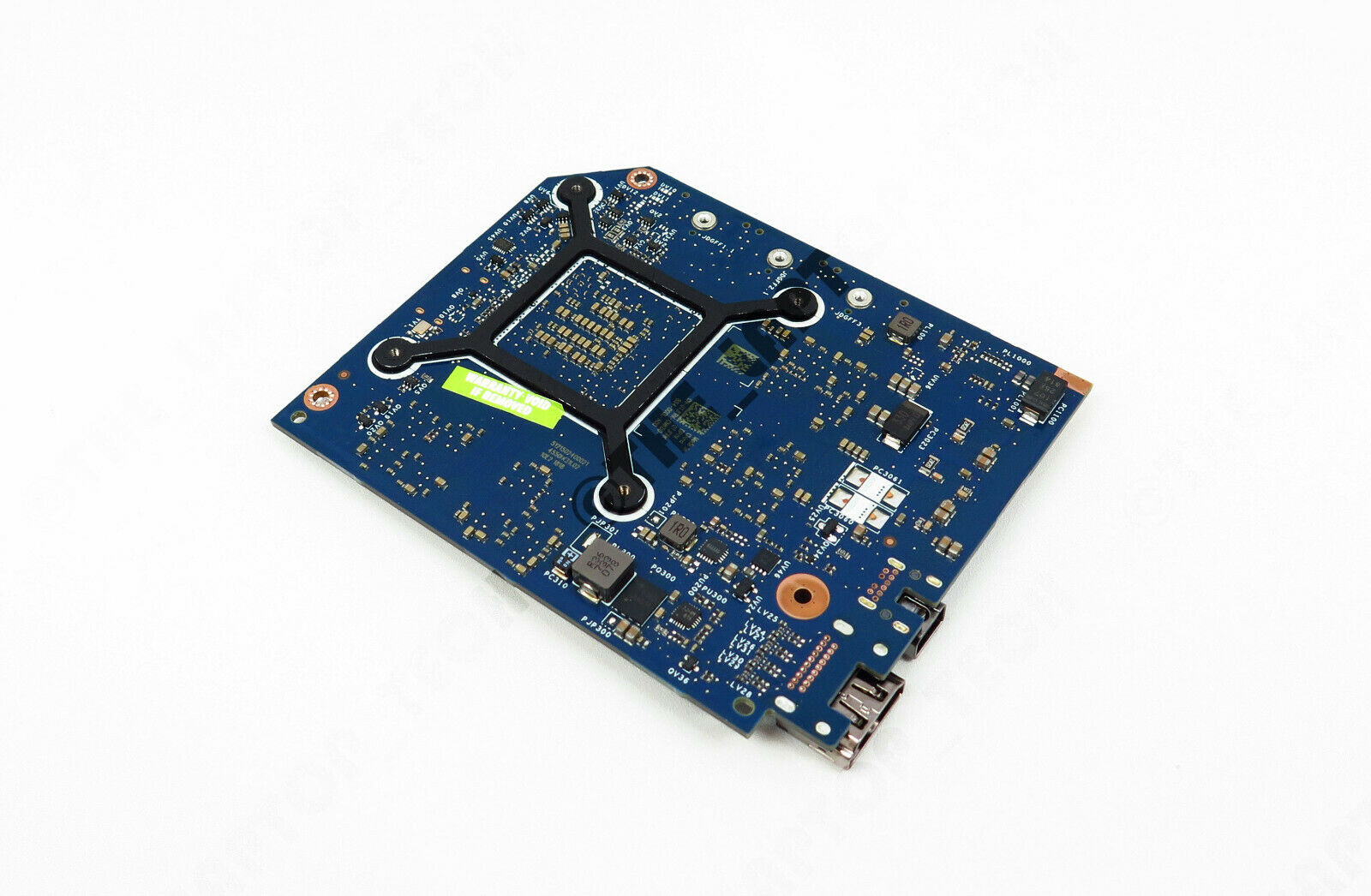

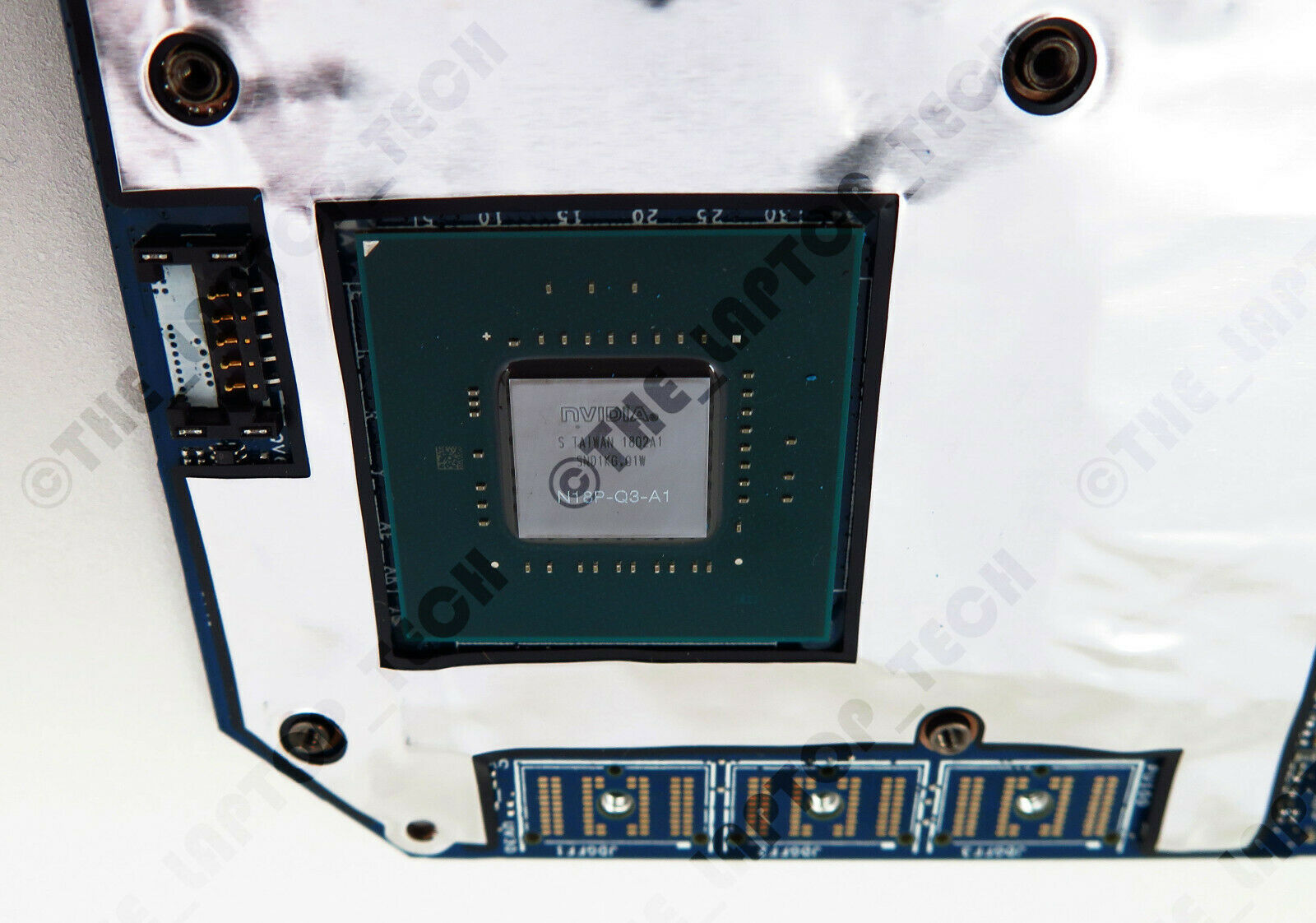

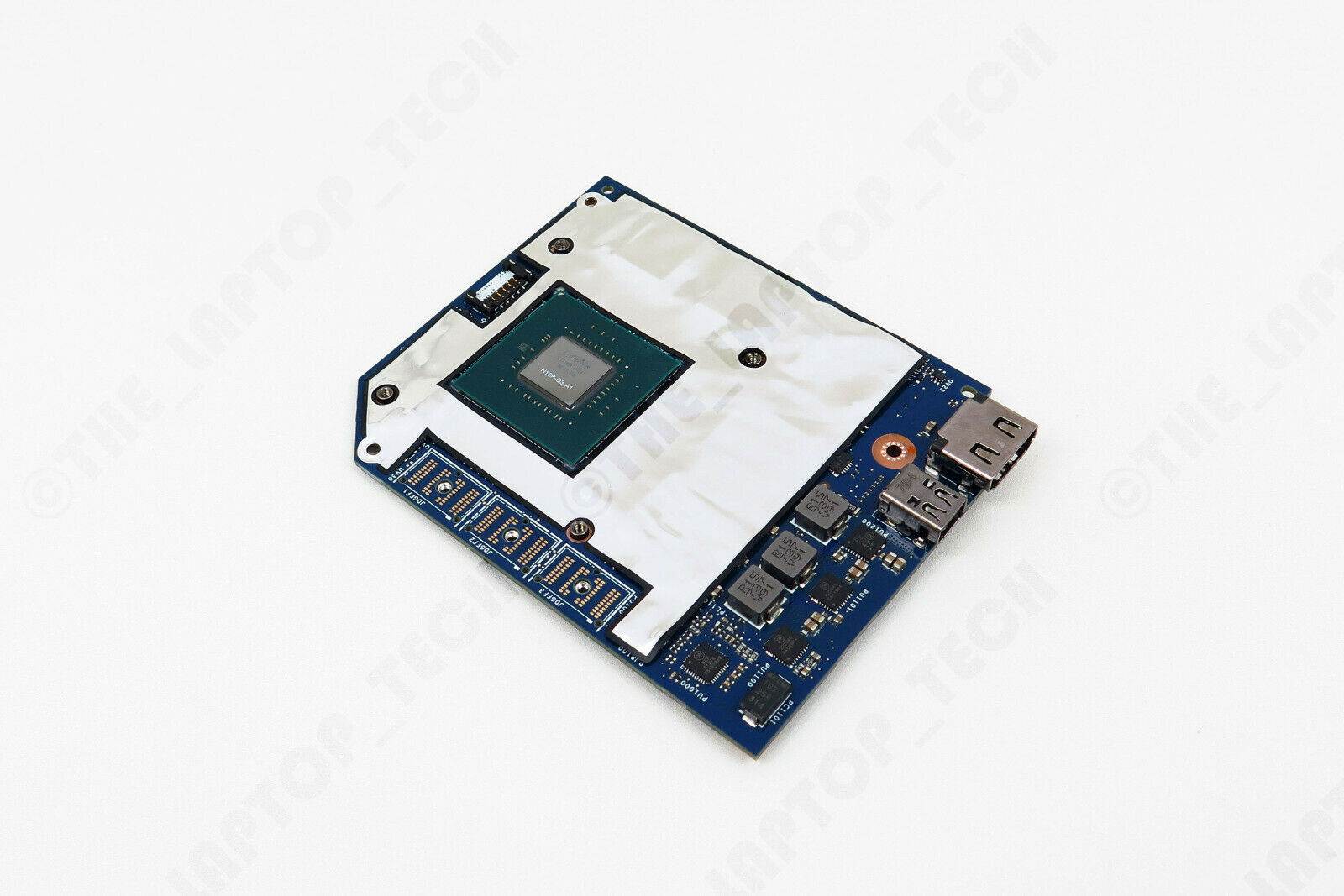

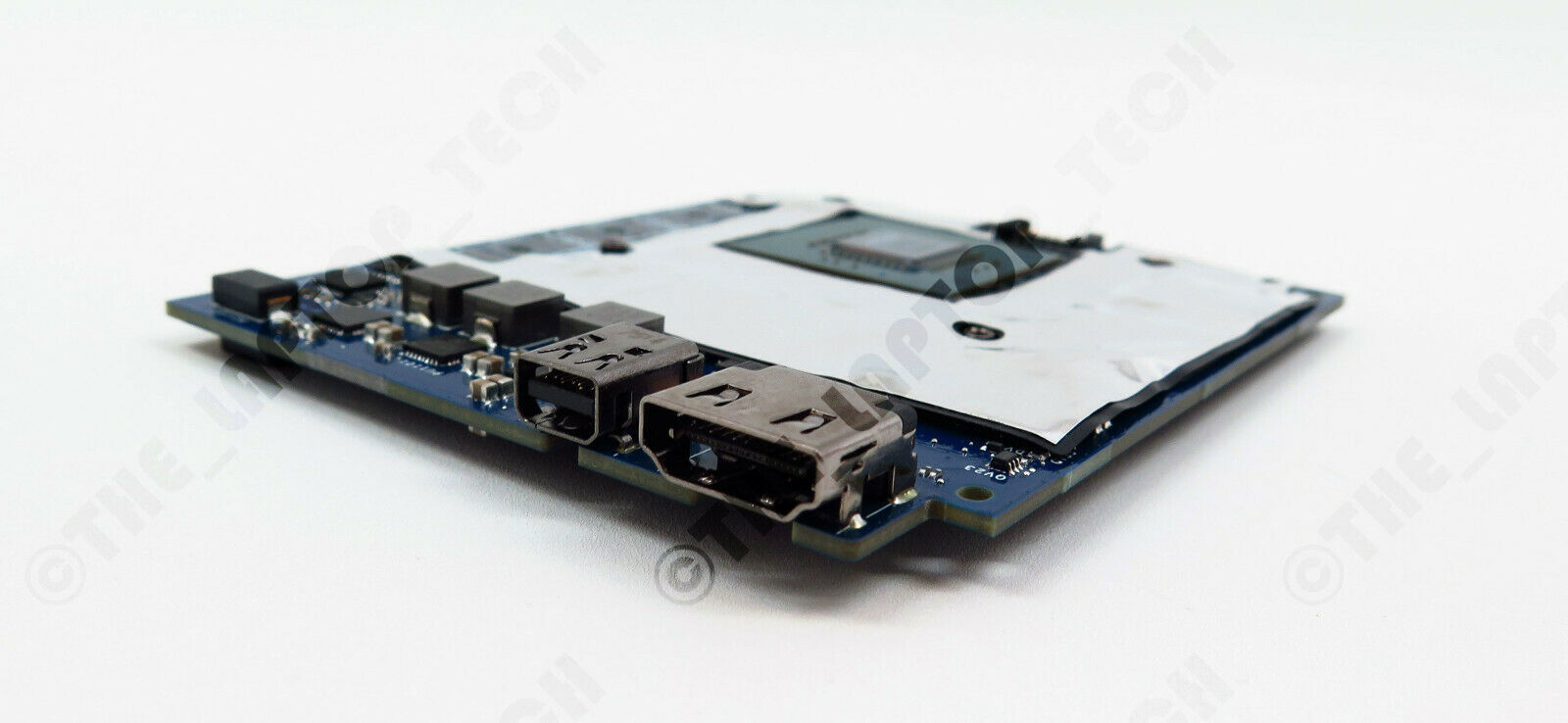

    Anyone has an idea what kind of connector and form factor that video card is supposed to be? Seller says it is taken out from Dell Precision 7530. Since when are Dell producing workstations with non standard MXM videos?


    Attached Files:

    silverchairbg, Mar 6, 2019
    #592
  43. silverchairbg

    silverchairbg Notebook Geek

    Reputations:
    0
    Messages:
    82
    Likes Received:
    14
    Trophy Points:
    16
    And if somebody updates the info on first page of topic - I was able to update HP Zbook G2 with Quadro M2200 dell card. Had to flash HP vbios though, otherwise it only worked with external monitor.

    silverchairbg, Mar 6, 2019
    #593
  44. VoodooBane

    VoodooBane Notebook Consultant

    Reputations:
    12
    Messages:
    145
    Likes Received:
    34
    Trophy Points:
    41
    Looks like DGFF

    Sent from my SAMSUNG-SM-G928A using Tapatalk

    VoodooBane, Mar 6, 2019
    #594
  45. silverchairbg

    silverchairbg Notebook Geek

    Reputations:
    0
    Messages:
    82
    Likes Received:
    14
    Trophy Points:
    16
    Too bad, I thought they're gonna use that only on Alienware series. If they would be using it on regular Dell workstations, then the chances of getting an MXM card for upgrade out of sites like ebay gets much lower.

    silverchairbg, Mar 6, 2019
    #595
  46. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Is there a dedicated thread for that upgrade?

    sicily428, Mar 10, 2019
    #596
  47. silverchairbg

    silverchairbg Notebook Geek

    Reputations:
    0
    Messages:
    82
    Likes Received:
    14
    Trophy Points:
    16
    There is no need for a thread, as it is pretty much plug & play if you get HP card. If you get other brand, you need to flash the HP vbios.

    silverchairbg, Mar 10, 2019
    #597
  48. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    please share a benchmark like firestrike or other so I can link your post in the OP list. Thanks

    sicily428, Mar 10, 2019
    #598
  49. clevo-extreme

    clevo-extreme Company Representative

    Reputations:
    72
    Messages:
    773
    Likes Received:
    477
    Trophy Points:
    76
    clevo-extreme, Mar 17, 2019
    #599
  50. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231

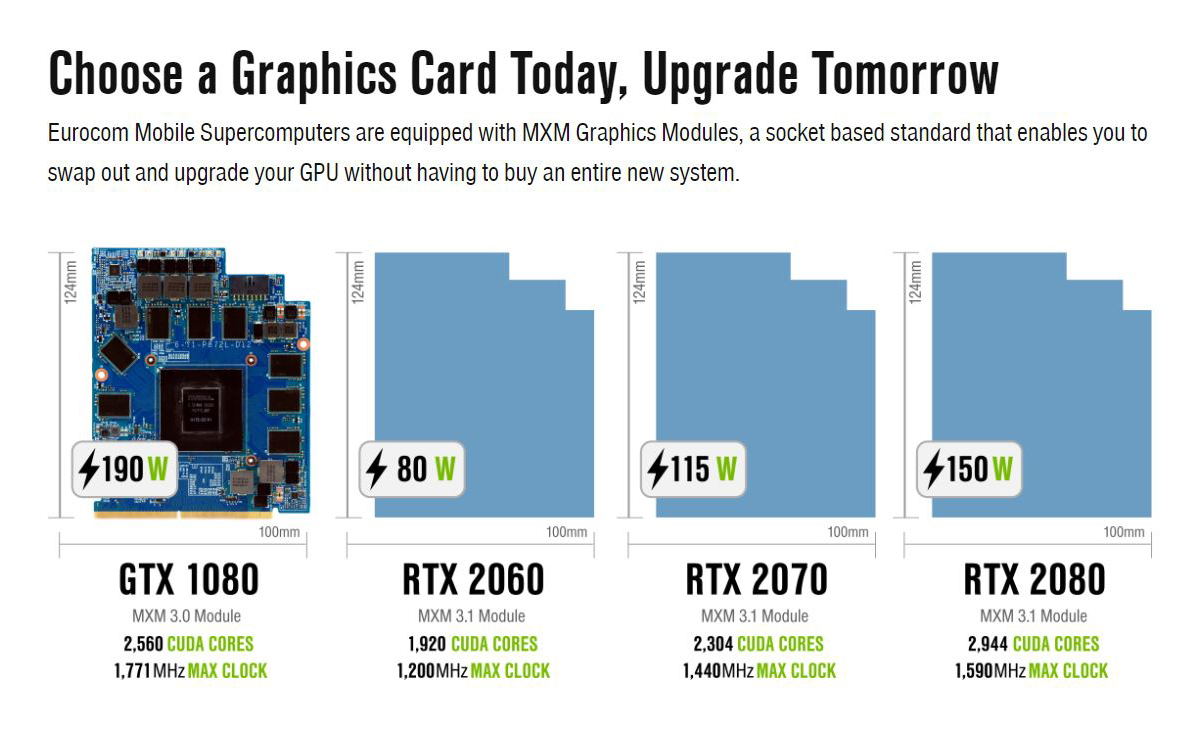

    Hi! Do you sell these new clevo RTX cards?

    sicily428, Mar 17, 2019
    #600
← Previous pageNext page →
