    Successful MXM GPU Upgraded Laptops

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by sicily428, May 21, 2017.

  1. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    And with the chipset bios secureboot 2.0 cancer hernia it probably be close to impossible without soldering a new one.

    rip



    Does Lenovo even have that secureboot thing?

    Mobius 1, Sep 20, 2017
    #101
  2. bloodhawk

    bloodhawk Derailer of threads.

    Reputations:
    2,967
    Messages:
    5,851
    Likes Received:
    8,565
    Trophy Points:
    681
    Lenovo was actually the first OEM to start implementing it, and then Dell followed suite. Im not sure if Linkpads have it as well, but they started the implementation with the consumer models.
    BUT with Lenovo's there was still hope because of an UEFI bug.

    bloodhawk, Sep 20, 2017
    #102
  3. TenGauge

    TenGauge Notebook Guru

    Reputations:
    11
    Messages:
    73
    Likes Received:
    16
    Trophy Points:
    16
    HP 8770W K4000M -----> GTX 980M

    Stock vBIOS, stock inf modded nVidia driver v. 385.41

    [​IMG]
    [​IMG]
    [​IMG]

    TenGauge, Sep 22, 2017
    #103
    sicily428 likes this.
  4. Eurocom Support

    Eurocom Support Company Representative

    Reputations:
    293
    Messages:
    505
    Likes Received:
    970
    Trophy Points:
    106
    We just added P5000 and P3000 support to our Tornado F5 series and Sky X9W. Other model testing in under way. Let our team know which models you would like to get tested next.

    Eurocom Support, Sep 24, 2017
    #104
    sicily428 likes this.
  5. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    you could test these
    Alienware
    m17x r4 (tested with p5000 yet)
    M18x r2
    M17x r1

    Msi
    16L1
    Gt62vr
    Gt72vr

    Clevo
    p150em
    p170em
    p150sm
    p170sm
    P750zm
    p750dm
    p770zm
    p770dm
    p775dm

    Dell
    m6700
    m6800
    m7710

    Hp
    8770w
    G3 17"

    Lenovo
    P70

    What about p2000? Is it mxm 3.0a?

    Last edited: Sep 24, 2017
    sicily428, Sep 24, 2017
    #105
  6. Eurocom Support

    Eurocom Support Company Representative

    Reputations:
    293
    Messages:
    505
    Likes Received:
    970
    Trophy Points:
    106
    We have P3000 and P5000 available for now. P2000 is MXM 3.0a size.

    Eurocom Support, Sep 24, 2017
    #106
    sicily428 likes this.
  7. Eurocom Support

    Eurocom Support Company Representative

    Reputations:
    293
    Messages:
    505
    Likes Received:
    970
    Trophy Points:
    106
    We have 3D Stereo working with P5000 in our Sky X9W 120Hz QHD panel.

    Eurocom Support, Sep 27, 2017
    #107
  8. omega939

    omega939 Notebook Evangelist

    Reputations:
    20
    Messages:
    563
    Likes Received:
    127
    Trophy Points:
    56
    I really would like to know weather if a GTX1060m flavor can work in an MSI GT60 ivy bridge version. I know that the ivy bridge uses an lvd connector, so it must be a non gsync vbios version.

    Let me know. Thanks

    omega939, Sep 28, 2017
    #108
  9. omega939

    omega939 Notebook Evangelist

    Reputations:
    20
    Messages:
    563
    Likes Received:
    127
    Trophy Points:
    56
    I've seen lots of AW model that can be upgraded to 1060 mxm boards and only few for MSI gaming laptops. Question is, is there any member here who have tried sticking a GTX 1060m on an MSI GT60-ivy or haswell cpu? Because I've read based on the link that there's a " big squared capacitator at the back" that pushes towards the motherboard if you screw it tightly for AW laptops.

    What about the GT60 version?

    omega939, Sep 30, 2017
    #109
  10. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    that's hard to say

    [​IMG]

    [​IMG]


    Attached Files:

    • 16f3.png
      File size:
      633.9 KB
      Views:
      999
    sicily428, Sep 30, 2017
    #110
    hmscott likes this.
  11. omega939

    omega939 Notebook Evangelist

    Reputations:
    20
    Messages:
    563
    Likes Received:
    127
    Trophy Points:
    56
    @sicily428

    I think this is the difference between AW17 and MS GT60/70. MSI doesn't have that " big square capacitor at the back" I think I answered my problem to that. All I need now is on how to get a non-gsync vbios (stock) for 1060m. Do you have a link? Thanks.


    Last edited: Oct 1, 2017
    omega939, Oct 1, 2017
    #111
  12. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Hi!@SMGJohn
    Do you have a msi gtx1060 in your clevo? Do you have a modded vbios?

    sicily428, Oct 1, 2017
    #112
  13. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 1, 2017
    #113
  14. omega939

    omega939 Notebook Evangelist

    Reputations:
    20
    Messages:
    563
    Likes Received:
    127
    Trophy Points:
    56
    to those MSI GT users for ivy and haswell users. If you have modded vbios try kombustor and do the stress test if it's stable (if not it shuts down). If not you should stick to the stock vbios instead and tweak it with afterburner. much stable. Works flawless on my 970m (with stock vbios)

    omega939, Oct 1, 2017
    #114
  15. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 4, 2017
    #115
  16. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Just for history's sake:
    Alienware M15x upgrade history:
    GTX 260M -> AMD 5850M -> AMD 6990M -> AMD 7970M/GTX 680M -> GTX 970M

    That's remarkable for a laptop imo.

    Raidriar, Oct 4, 2017
    #116
    triturbo and ssj92 like this.
  17. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Last edited: Oct 5, 2017
    sicily428, Oct 5, 2017
    #117
    dzpliu likes this.
  18. dzpliu

    dzpliu Notebook Consultant

    Reputations:
    62
    Messages:
    257
    Likes Received:
    346
    Trophy Points:
    76

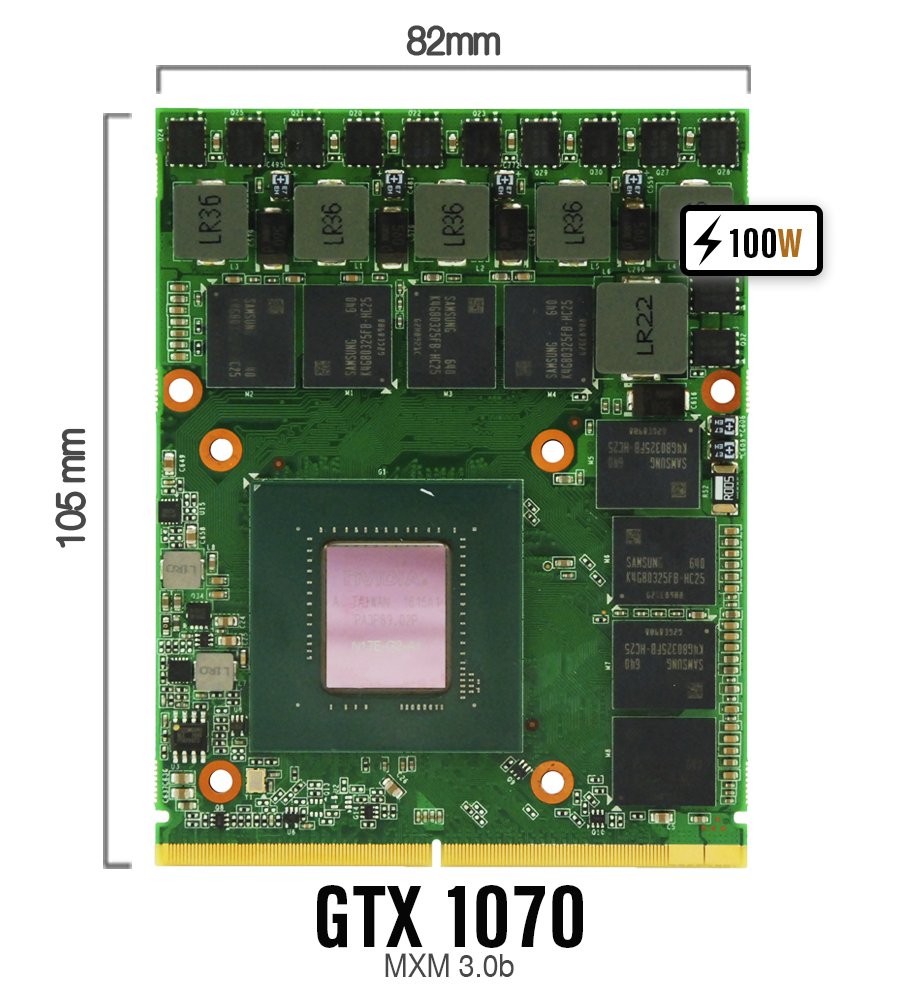

    This looks exactly like Gecube's 1070...

    dzpliu, Oct 5, 2017
    #118
    sicily428 likes this.
  19. SMGJohn

    SMGJohn Notebook Evangelist

    Reputations:
    141
    Messages:
    603
    Likes Received:
    356
    Trophy Points:
    76
    I do have the MSI GeForce GTX 1060N 6GB MXM3.0b card yes.

    The vBIOS version I have is 86.06.19.00.08.
    Multiple websites report the card as a 80W TDP GPU but its clearly consuming WAY MORE than 150W on my laptop as the power adapter cuts out when it exceeds 182W usage, this clearly never happened on my M290X which is a VERY power hungry 100W TDP GPU.

    Its my suspicion that the vBIOS I have is Clevo one and its either 125W TDP or 150W TDP. The voltage sensor is not working correctly as it sometimes show ludicrous readings.
    Either that or my Asus N180W-02 180W slim adapter is not as efficient as Asus advertises it and in reality a 160W one which is hard to believe when they bundle them with power hungry beasts that have far more power hungry components than mine do.

    I have also acquired an unknown AMD Radeon Rx 480 MXM 3.0b a black card maybe MSI or Sapphire. Its taking its sweet time shipping from China though, will report back when acquired.

    SMGJohn, Oct 5, 2017
    #119
    sicily428 likes this.
  20. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Falkentyne, Oct 5, 2017
    #120
    bennyg and sicily428 like this.
  21. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 5, 2017
    #121
    ssj92 likes this.
  22. InOrderToSignIn

    InOrderToSignIn Notebook Consultant

    Reputations:
    21
    Messages:
    221
    Likes Received:
    94
    Trophy Points:
    41
    https://m.ebay.com/itm/Clevo-P570WM-VGA-Upgrade-Kit-NEW-NVIDIA-GTX-1070M-8GB-DDR5-MXM-3-0b/112598727281?_mwBanner=1&ul_ref=https://rover.ebay.com/rover/0/e11021.m43.l1120/7?euid=8ed54b633fd64999a5e608a817be197f&bu=44772526308&loc=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F112598727281&sojTags=bu=bu&srcrot=e11021.m43.l1120&rvr_id=0&ul_noapp=true

    Eurocom pulled through.

    On their site:
    http://www.eurocom.com/ec/upgrade(2,282,0)CLEVO_P570WM_SAGER_NP9570

    Would this card work in other models as well? Or should we wait longer?

    InOrderToSignIn, Oct 11, 2017
    #122
  23. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    They are testing that card on clevos and alienwares atm. I heard about a mxm testing program so you could ask @Eurocom Support for that

    sicily428, Oct 12, 2017
    #123
  24. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    I see they updated the TDP in the listing to the stock 115W. But whether you should boost it to 151W is dubious.

    Sent from my SM-T560NU using Tapatalk

    thegh0sts, Oct 12, 2017
    #124
    sicily428 likes this.
  25. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 12, 2017
    #125
    triturbo and TBoneSan like this.
  26. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 18, 2017
    #126
  27. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 19, 2017
    #127
    bennyg likes this.
  28. KY_BULLET

    KY_BULLET Notebook Evangelist

    Reputations:
    802
    Messages:
    655
    Likes Received:
    794
    Trophy Points:
    106
    I recently did the GTX 680m Eurocom upgrade on the Clevo D900f. Did not have to upgrade the heatsink. With the help of @Danishblunt I'm running stable OC at 940mhz/2150mhz. Does pretty good compared to my old GTX 280m... :p

    Last edited: Oct 21, 2017
    KY_BULLET, Oct 20, 2017
    #128
    sicily428 likes this.
  29. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Thanks for sharing this info :)

    sicily428, Oct 20, 2017
    #129
    KY_BULLET likes this.
  30. InOrderToSignIn

    InOrderToSignIn Notebook Consultant

    Reputations:
    21
    Messages:
    221
    Likes Received:
    94
    Trophy Points:
    41
    Any idea why the p150em is like $200 more expensive than the 570? Seems kind of weird, should be the same gpu right?

    https://m.ebay.com/itm/Clevo-P150-170em-GTX-1070-VGA-Upgrade-Kit-8GB-DDR5-MXM-3-0b-w-modified-heatsink-/132368781583?hash=item1ed1cb510f:g:XyMAAOSw9gRZ5gw-&_trkparms=pageci%3A912f9f88-b5a8-11e7-a5ec-74dbd18044ad%7Cparentrq%3A3a54515315f0aa47a04da1f2ffffcb7e%7Ciid%3A6

    https://m.ebay.com/itm/Clevo-P570WM-GTX-1070-Upgrade-Kit-8GB-DDR5-MXM3-82x105mm-w-o-VGA-Heatsink-/112598727281?hash=item1a37683a71:g:XyMAAOSw9gRZ5gw-&_trkparms=pageci%3A912f9f88-b5a8-11e7-a5ec-74dbd18044ad%7Cparentrq%3A3a54515315f0aa47a04da1f2ffffcb7e%7Ciid%3A8


    Edit:

    The prices are the same on their website, strange

    InOrderToSignIn, Oct 20, 2017
    #130
    sicily428 likes this.
  31. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    With modified heatsink the price is higher.

    t6nn_k, Oct 21, 2017
    #131
  32. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 21, 2017
    #132
  33. InOrderToSignIn

    InOrderToSignIn Notebook Consultant

    Reputations:
    21
    Messages:
    221
    Likes Received:
    94
    Trophy Points:
    41
    Awesome, thanks! Must have missed that :)

    InOrderToSignIn, Oct 21, 2017
    #133
  34. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 24, 2017
    #134
  35. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 25, 2017
    #135
  36. Prfo.E.F

    Prfo.E.F Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hello
    Do u know mini laptops have MXM GPU ?! :eek: :eek:

    Prfo.E.F, Oct 26, 2017
    #136
  37. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    there is a list of laptops with a mxm gpu at the first page of this guide :)

    sicily428, Oct 26, 2017
    #137
    Prfo.E.F likes this.
  38. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 26, 2017
    #138
  39. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Oct 28, 2017
    #139
  40. Palespartan

    Palespartan Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    9
    Trophy Points:
    16
    Has anyone upgraded a Toshibia Qosimo (gtx770m model)? Hoping for something like a gtx 1060.

    Palespartan, Nov 1, 2017
    #140
  41. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Is there optimus? Is there an edp panel?

    sicily428, Nov 1, 2017
    #141
  42. Palespartan

    Palespartan Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    9
    Trophy Points:
    16
    I am pretty sure it has optimus. What do you mean by edp panel though?

    Palespartan, Nov 1, 2017
    #142
  43. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    Optimus is enough. Pascal cards are compatible with edp panel if a laptop doesn't use optimus. Is there a standard mxm 3.0b card in that model?

    sicily428, Nov 1, 2017
    #143
  44. Palespartan

    Palespartan Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    9
    Trophy Points:
    16
    how would I be able to tell if its standard MXM 3.0b vs some proprietary style?

    Palespartan, Nov 1, 2017
    #144
  45. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    What's the exact model?

    sicily428, Nov 1, 2017
    #145
  46. Palespartan

    Palespartan Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    9
    Trophy Points:
    16
    Its an X70-A. Thanks for being so helpful by the way.

    Palespartan, Nov 1, 2017
    #146
  47. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Nov 2, 2017
    #147
  48. sicily428

    sicily428 Donuts!! :)

    Reputations:
    816
    Messages:
    3,610
    Likes Received:
    1,988
    Trophy Points:
    231
    sicily428, Nov 2, 2017
    #148
  49. Eurocom Support

    Eurocom Support Company Representative

    Reputations:
    293
    Messages:
    505
    Likes Received:
    970
    Trophy Points:
    106
    Here is a list of Clevo models tested so far with our GTX 1070 MXM3 82x105mm cards:
    P150EM
    P170EM
    P370EM3 (with eDP panel)
    P15xSM
    P370SM3 (with eDP panel)
    P15xSMA
    P17xSMA
    P377SMA (with eDP Panel)
    P570WM3 (with eDP panel)
    Complete listing is available on our website, or just contact Eurocom Sales Team via email.
    We provide proper drivers, proper BIOS and proper VBIOS as part of our GPU Upgrade Package, so GTX 1070 works in these machines.

    Eurocom Support, Nov 2, 2017
    #149
    Eindru, sicily428 and Phönixfire like this.
  50. Palespartan

    Palespartan Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    9
    Trophy Points:
    16
    Palespartan, Nov 2, 2017
    #150
← Previous pageNext page →
