M6600 Owners Thread

Discussion in 'Dell Latitude, Vostro, and Precision' started by tomcom2k, May 23, 2011.

Page 451 of 756
  1. dafunk60

    dafunk60 Notebook Consultant

    Reputations:
    15
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    I checked two m6600 and both have no movement in the power plug.

    dafunk60, May 11, 2012
    #4501
  2. Aaron44126

    Aaron44126 Notebook Prophet

    Reputations:
    879
    Messages:
    5,554
    Likes Received:
    2,082
    Trophy Points:
    331
    Not quite what I meant, though I see that my statement may be a little confusing. He was asking about using the Intel GPU. He has the IPS screen and the ATI Firepro. To use the Intel GPU, he'd have to dump both, as each individually prohibits the use of the Intel GPU.

    Aaron44126, May 11, 2012
    #4502
  3. tommyxv

    tommyxv Notebook Evangelist

    Reputations:
    80
    Messages:
    473
    Likes Received:
    13
    Trophy Points:
    31
    Right, in order to use Intel WiDi feature on my Intel 6300 wireless card with the NETGEAR PTV2000-100NAS Push2TV HD-TV Adapter, I have to use the integrated Intel HD graphics.

    I am not able to switch to the Intel HD graphics because I have the IPS display, is what I understand.

    tommyxv, May 11, 2012
    #4503
  4. mikhailk

    mikhailk Notebook Guru

    Reputations:
    0
    Messages:
    70
    Likes Received:
    1
    Trophy Points:
    16
    Ok, I thought you were talking about IPS.

    mikhailk, May 11, 2012
    #4504
  5. Alls

    Alls Notebook Geek

    Reputations:
    36
    Messages:
    91
    Likes Received:
    0
    Trophy Points:
    15
    Alls, May 11, 2012
    #4505
  6. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56

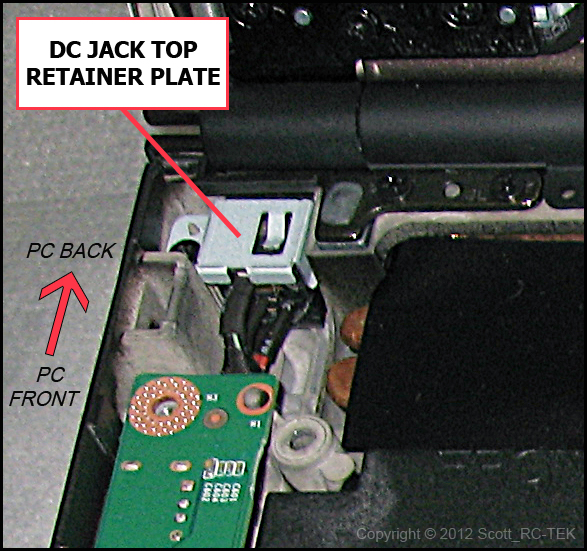

    The M6600 DC jack/receptacle is not directly attached to or part of the system board. See below -

    Like many Dell models, the DC jack module slides into a cavity on the rear of the magnesium base assembly [frame]. The module is then secured by the top retaining plate, which is anchored to the same base assembly by a M2x3mm fastener [screw].

    I suspect your tech did not reattach the retaining plate or he forgot to tighten the screw down all the way. It is probably an unintentional oversight.

    Scott

    [​IMG]

    Scott_RC-TEK, May 11, 2012
    #4506
  7. badgerballs

    badgerballs Notebook Geek

    Reputations:
    0
    Messages:
    95
    Likes Received:
    0
    Trophy Points:
    15
    Yep I contacted Dell and they are sending out an engineer on Monday to replace it again. Thanks for the info.

    badgerballs, May 12, 2012
    #4507
  8. badgerballs

    badgerballs Notebook Geek

    Reputations:
    0
    Messages:
    95
    Likes Received:
    0
    Trophy Points:
    15
    Ah Ha thanks for the piccy I will show the engineer that comes to fix it. He can level the top deck between the speakers that the other guy managed to make a 2mm depression as well hopefully.

    badgerballs, May 12, 2012
    #4508
  9. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56
    Welcome :)

    Here is another pic showing what may be causing the speaker bump/depression for you. If you (or the tech) do not lay the LCD cable flat and in its small channel correctly, it will push up on the left speaker area and once the palmrest fastener between the speakers is tightened, it will cause that small bump/depression look.

    Hope this helps-
    Scott

    [​IMG]

    Scott_RC-TEK, May 12, 2012
    #4509
  10. slimpower

    slimpower Notebook Evangelist

    Reputations:
    17
    Messages:
    331
    Likes Received:
    33
    Trophy Points:
    41
    Ha! I think the engineer is going to be very impressed (and possibly a little worried) when you show him such great/informative pics from Scott_RC-TEK. He might think it is an internal test of his skills!! Anyway, hope you get it all fixed.

    slimpower, May 12, 2012
    #4510
