Precision M6600 IPS Display DIY Upgrade/Conversion Thread

Discussion in 'Dell Latitude, Vostro, and Precision' started by Scott_RC-TEK, Sep 3, 2012.

Thread Status:
Not open for further replies.
Page 6 of 11
  1. Spring1898

    Spring1898 Notebook Consultant

    Reputations:
    96
    Messages:
    268
    Likes Received:
    54
    Trophy Points:
    41
    If I have one m6700 with the IPS screen and one with the standard screen, and I wanted to switch the 2, how would this be done?
    Can I simply remove the LCD/Lid from one and place it on the other and reconnect?
    I have done this with M6500's but not with IPS screens

    Spring1898, Feb 1, 2014
    #51
  2. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    You can just switch the whole display assembly as in the whole lid, just note the different connector on the motherboard..

    baii, Feb 1, 2014
    #52
  3. Spring1898

    Spring1898 Notebook Consultant

    Reputations:
    96
    Messages:
    268
    Likes Received:
    54
    Trophy Points:
    41
    It is just plugged into the other spot?

    Spring1898, Feb 1, 2014
    #53
  4. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    Yes. The 2 connector are next to each other, same in m6700 i believe. On m6600, there print labeled eDp and LVDS.

    baii, Feb 1, 2014
    #54
  5. Lnd27

    Lnd27 Notebook Evangelist

    Reputations:
    9
    Messages:
    310
    Likes Received:
    12
    Trophy Points:
    31
    isnot m6600 and m6700 has different hingles?

    Lnd27, Feb 4, 2014
    #55
  6. baii

    baii Sone

    Reputations:
    1,420
    Messages:
    3,925
    Likes Received:
    201
    Trophy Points:
    131
    yes, but he has 2 m6700.

    baii, Feb 4, 2014
    #56
  7. landsome

    landsome Notebook Evangelist

    Reputations:
    245
    Messages:
    536
    Likes Received:
    36
    Trophy Points:
    41

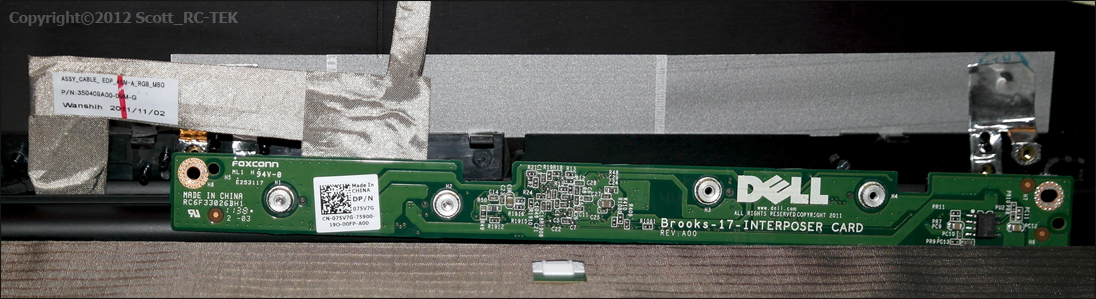

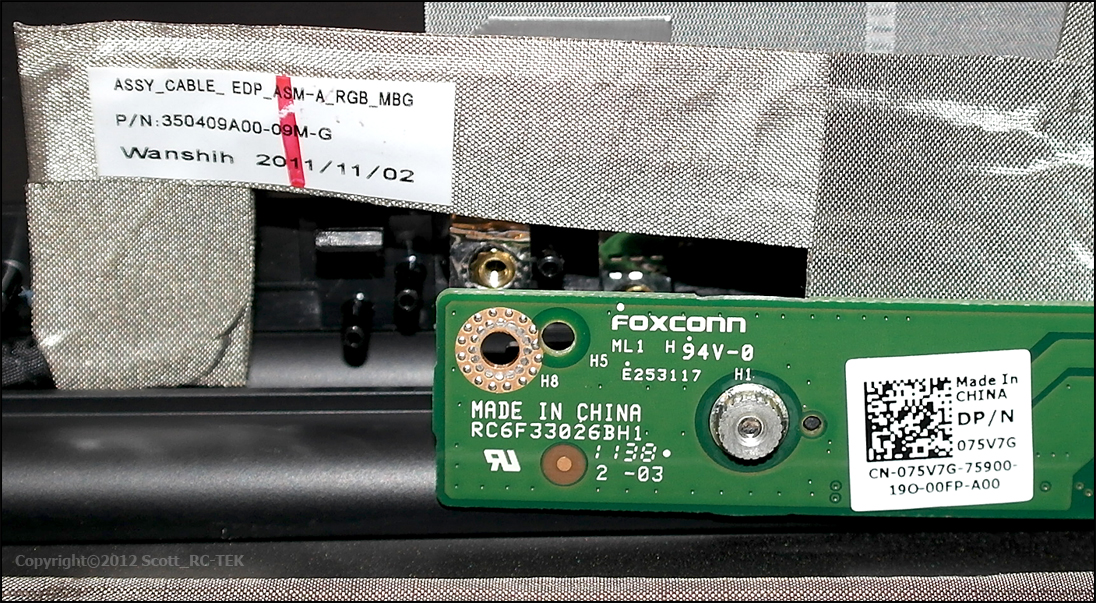

    baii, Scott, do any of you know the P/N for the proprietary Dell eDP to LVDS interposer card? Thanks.

    landsome, Apr 1, 2014
    #57
  8. Scott_RC-TEK

    Scott_RC-TEK Notebook Deity

    Reputations:
    970
    Messages:
    829
    Likes Received:
    13
    Trophy Points:
    56
    Here you go -

    [​IMG]

    [​IMG]

    [​IMG]

    Scott_RC-TEK, Apr 1, 2014
    #58
    WaNaWe900 likes this.
  9. landsome

    landsome Notebook Evangelist

    Reputations:
    245
    Messages:
    536
    Likes Received:
    36
    Trophy Points:
    41
    Great! Thanks a lot, Scott!

    I assume the same will work for a M6700?!

    landsome, Apr 2, 2014
    #59
  10. destinationsky

    destinationsky Notebook Evangelist

    Reputations:
    157
    Messages:
    368
    Likes Received:
    31
    Trophy Points:
    41
    Will this work for the m6800?

    destinationsky, Apr 29, 2014
    #60
